Fig. 11
From: Optimized seismic risk mitigation in pipeline routing using a metaheuristic GIS based approach

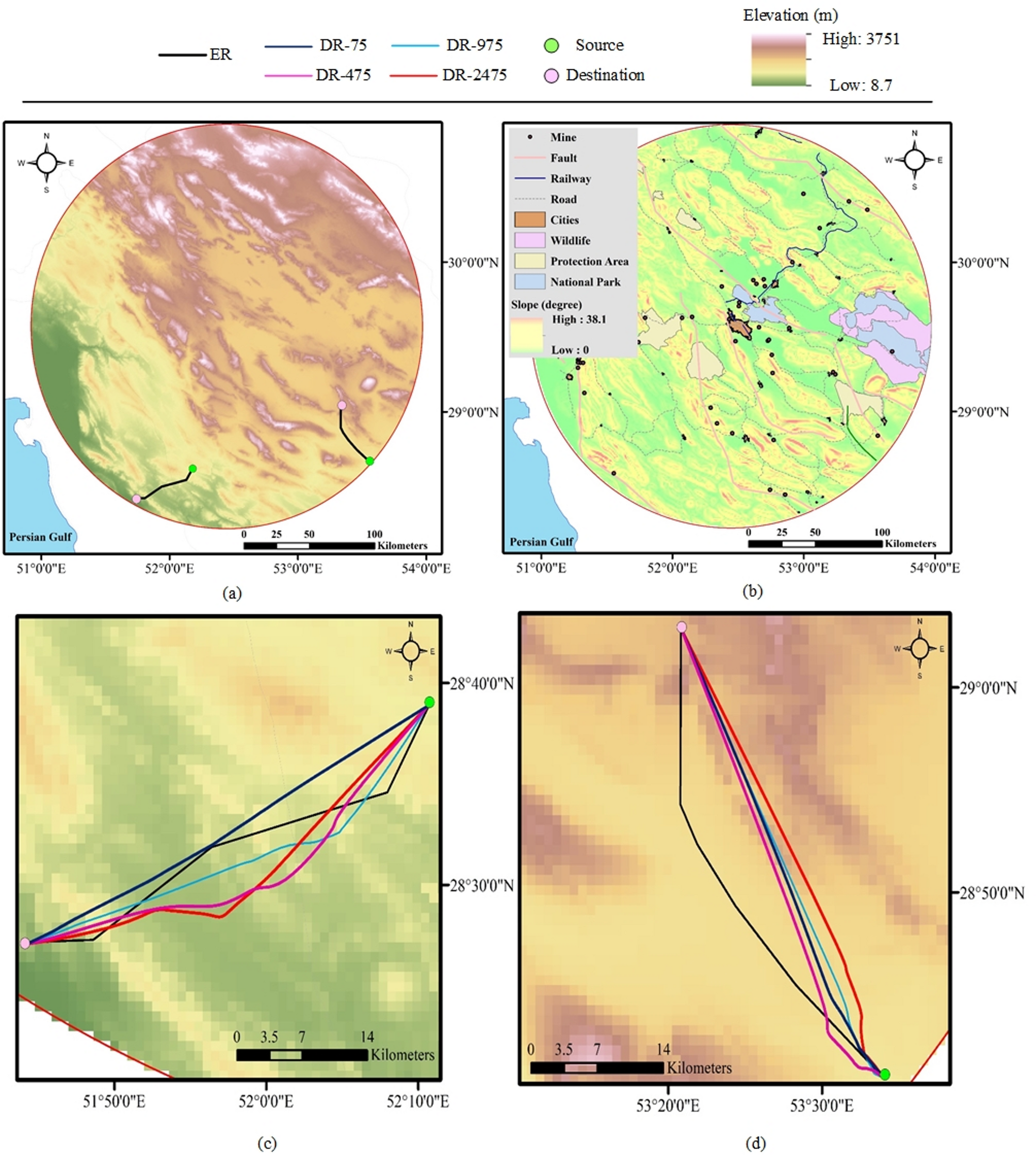

Problem of pipeline routing, (a) current pipeline routes, (b) routing criteria, (c) routing problem- case study 1, (d) routing problem- case study 2.
