Fig. 14
From: Optimized seismic risk mitigation in pipeline routing using a metaheuristic GIS based approach

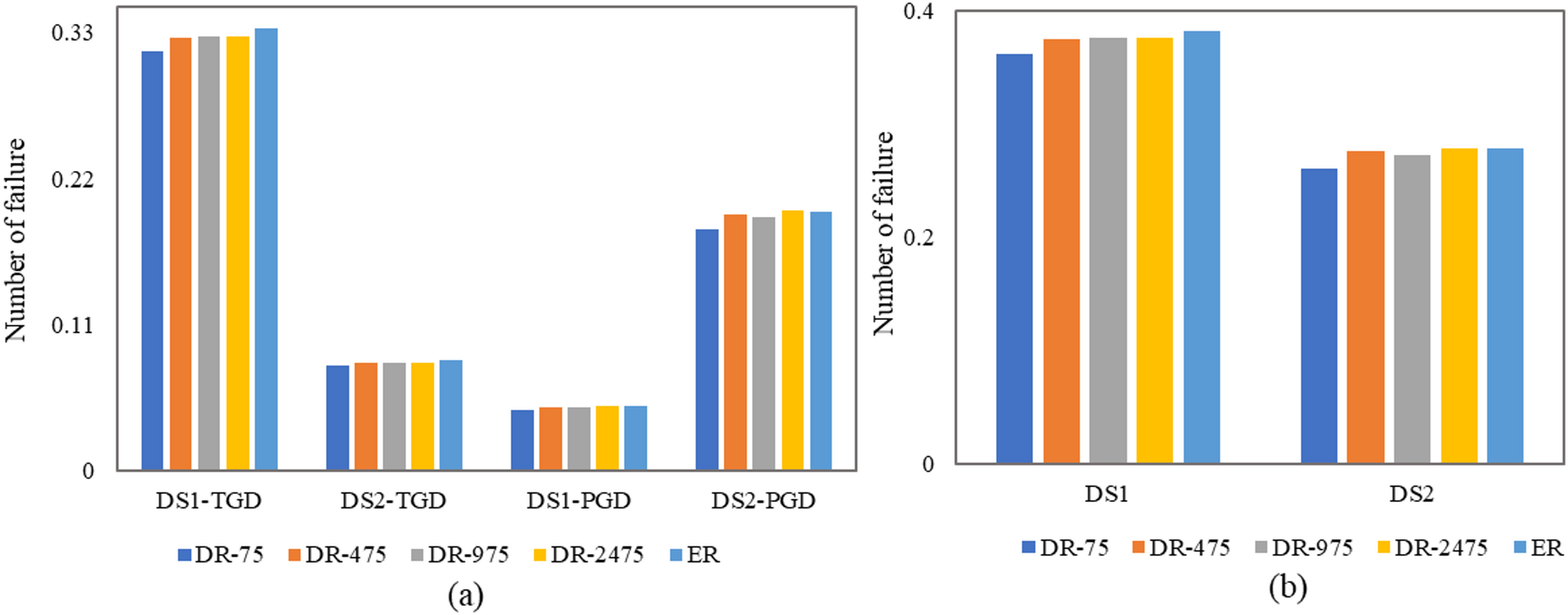

Comparative analysis of failures in the designed and existing routes: (a) frequency of leakage and breakage, (b) total failures.
