Fig. 1

From: An infection prediction model developed from inpatient data can predict out-of-hospital COVID-19 infections from wearable data when controlled for dataset shift

Fig. 1

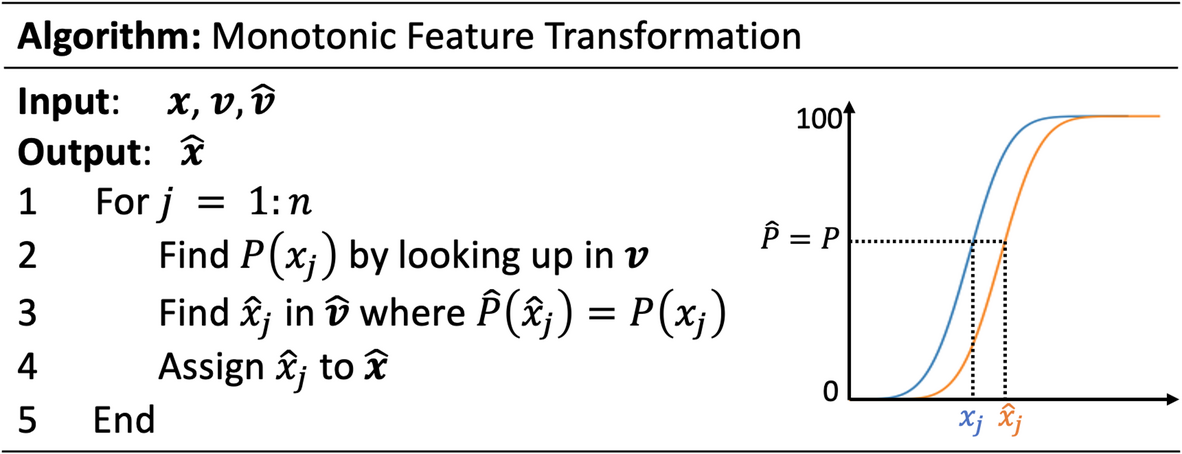

Pseudocode and diagram of monotonic feature transformation algorithm. x-axis is the value of the jth feature, y-axis is the percentile values of the jth feature in a dataset. Blue and orange lines are the cumulative distribution of the jth feature in the wearable dataset and the hospital dataset respectively.
