Fig. 6

From: Construction of a prognostic risk model for acute myeloid leukemia based on exosomal genes and analysis of immune microenvironment characteristics

Fig. 6

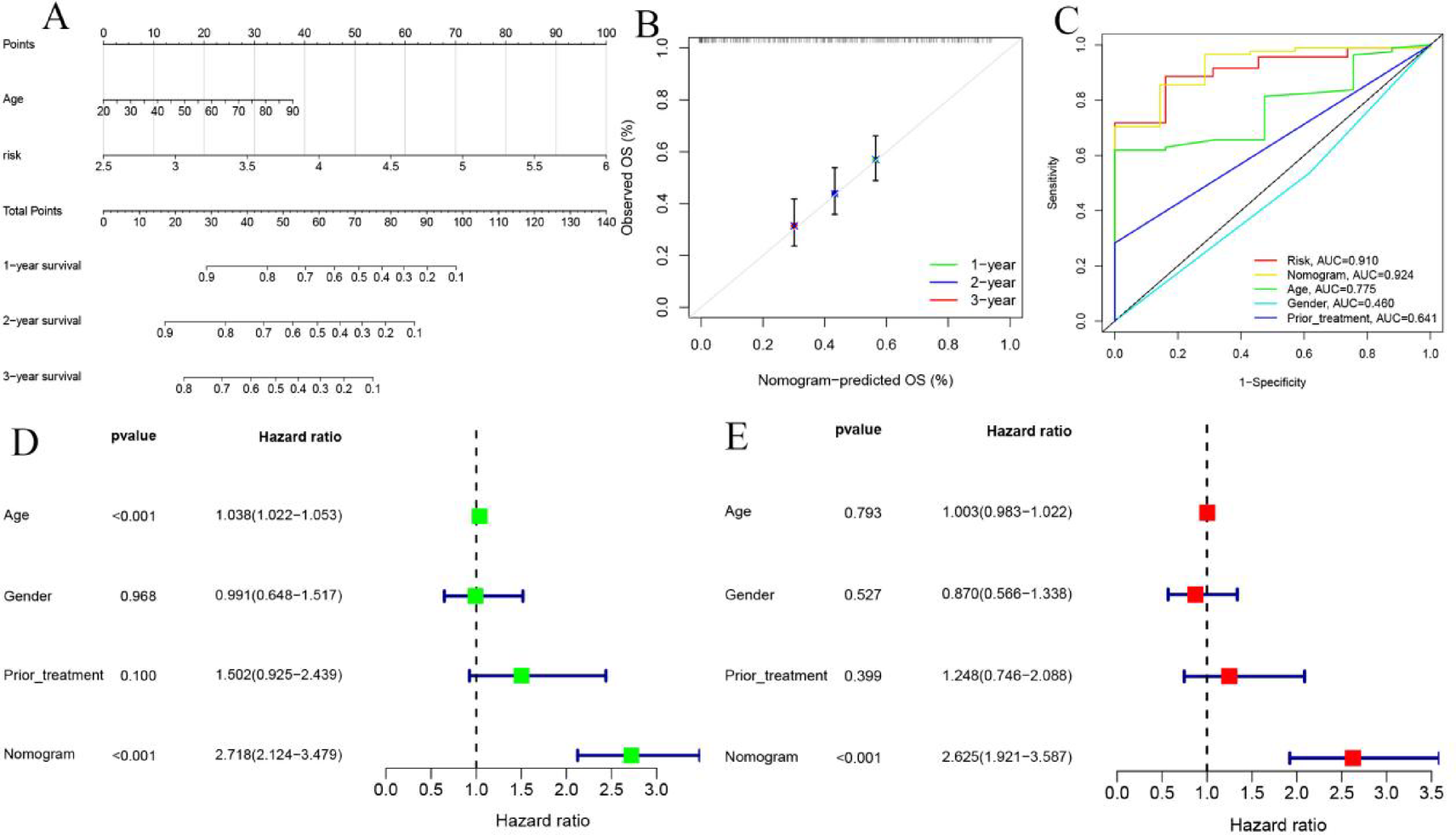

Development and evaluation of a nomogram for patients with AML. (A) Nomogram for predicting the 1-year, 2-year, and 3-year overall survival rates in AML patients. (B) Calibration plot analysis to evaluate the predictive power of the nomogram. The x-axis is the survival rate predicted by the nomogram, and the y-axis is the actual survival rate. (C) Nomogram for predicting prognosis, risk score, and ROC curve for clinical characteristics. (D, E) Univariate and multivariate Cox regression analysis was performed to determine whether nomogram score was an independent predictor of AML patients. Green square: danger is higher than HR < 1; Red squares: HR > 1.
