Introduction

Dyes, used extensively in industries such as textiles, are not fully consumed during the dyeing process, leading to the discharge of toxic, carcinogenic, and mutagenic substances into water bodies. This pollution not only affects the quality of water but also disrupts aquatic life and increases the biological oxygen demand (BOD) and chemical oxygen demand (COD) of water bodies. The textile industry is the predominant contributor to dye effluent, accounting for approximately 54% of the total discharge1,2. Among the various dyes used, methylene blue (MB), a synthetic, heterocyclic aromatic compound (C16H18N3SCl), is widely applied as a dye and colorant across multiple industrial sectors2,3. Photocatalysis has become a critical technology to address contemporary environmental challenges due to its potential to harness sunlight and convert it into usable energy forms, essential for pollution control via the generation of reactive oxygen species (ROS) that enable the oxidation or reduction of contaminants4,5,6,7,8. As a versatile and sustainable approach, photocatalysis can drive reactions that break down pollutants into harmless byproducts7,9,10,11. Despite considerable advancements, challenges persist in maximizing photocatalytic efficiency and scalability to enable broad application across different pollutants and environmental conditions. Many traditional metal oxide semiconductors such as TiO2 and ZnO exhibit limitations when exposed to sunlight, primarily due to their wide band gaps that restrict visible light absorption12,13. This limitation has spurred a wave of interest in alternative semiconductors with narrower band gaps, which can absorb a broader range of the solar spectrum.

Bismuth vanadate (BiVO4) is a promising semiconductor photocatalyst due to its ability to absorb visible light, chemical stability, and non-toxic nature14,15,16,17. Doping is a widely used strategy to enhance the photocatalytic performance of BiVO4, a promising material for applications such as water splitting and pollutant degradation18,19,20. Previously, it was reported that doped BiVO4 is effective in degrading various organic pollutants, including dyes, antibiotics and pesticides21,22,23. Various non-metal and metal elements have been explored for doping BiVO4, each offering unique benefits in terms of charge separation, light absorption, and catalytic activity9. However, its photocatalytic efficiency is often limited by factors such as low charge separation efficiency and fast electron–hole recombination. Doping BiVO4, by incorporating foreign atoms into its crystal lattice, strategically alters its electronic and structural properties, enhancing charge separation, extending light absorption, increasing surface area, and enabling defect engineering, thereby significantly improving its photocatalytic performance24. Among various potential dopants, copper (Cu) has attracted attention due to its compatibility with the BiVO4 lattice and its ability to enhance charge transport properties. Incorporating Cu into BiVO4 not only enables more effective light harvesting but also boosts the material’s photocatalytic efficiency in pollutant degradation compared to other dopants. Previous studies have found that the doping with Cu ions at the Bi site of BiVO4, due to their favourable electronic transition properties and energy levels, has been identified as an effective method for suppressing charge carrier recombination25. The introduction of Cu into BiVO4 enhances its visible light absorption capabilities. This is attributed to the narrowing of the band gap, which allows for better utilization of the solar spectrum26,27. The degradation of pollutants by Cu-doped BiVO4 involves the generation of ROS such as superoxide radicals (·O2−) and hydroxyl radicals (·OH). These species play a crucial role in breaking down organic contaminants28.

Herein, Cu-doped BiVO4 are developed via hydrothermal method, with an emphasis on exploring how varying concentrations of Cu influence the structural, morphological, and optical properties. By investigating these parameters, this study seeks to provide insights into optimizing photocatalytic efficiency for MB degradation under low power UV light, addressing key challenges in sustainable environmental applications.

Methodology

Materials

Analytical-grade chemicals were sourced for this study without further purification. The primary chemicals utilized for the synthesis included bismuth nitrate pentahydrate (Bi(NO3)3·5H2O) and ammonium metavanadate (NH4VO3) obtained from Chemiz (M) Sdn. Bhd. Nitric acid (HNO3), sodium hydroxide (NaOH), copper (II) sulfate pentahydrate (CuSO4·5H2O) and methylene blue (MB) were obtained from Bendosen Chemicals.

Preparation of BiVO4 and Cu-doped BiVO4

The hydrothermal synthesis approach was adopted to prepare both bare and Cu-doped BiVO4 photocatalysts as shown in Fig. 1. To initiate the process, Bi(NO3)3·5H2O was dissolved in a HNO3 to form Solution A, while NH4VO3 was dissolved in NaOH to produce Solution B. Solution B was then slowly added to Solution A, leading to visible precipitation. The mixture, along with the precipitate, was transferred to a Teflon-lined autoclave, which was sealed and subjected to hydrothermal conditions at 180 °C for 15 h. Post-reaction, the precipitate was washed with deionized water and ethanol, then dried at 60 °C for 12 h before being calcined at 400 °C to achieve phase purity. For Cu doping, varying concentrations of Cu precursor (1, 3, and 5 wt% relative to BiVO4 mass) were introduced during the initial mixing stage.

Fig. 1
figure 1

The hydrothermal synthesis of Cu-doped BiVO4. Drawn with BioRender.com.

Full size image

Characterizations

The structural, chemical, morphological, and optical properties of the bare and Cu-doped BiVO4 were comprehensively analyzed. X-ray diffraction (XRD) was employed to assess the crystallinity and phase structure with measurements conducted on a Shimadzu XRD6000 diffractometer with the measurement 2θ range of 10°–80° with a step size of 0.02° and a scanning speed of 1°/min. The morphology of the photocatalysts was accessed on a JCM-6000 Versatile Benchtop Scanning Electron Microscope, JEOL Ltd, Japan at 10 kV. FTIR was performed on an Agilent Cary 630 FTIR spectrometer with the KBr pellet method. Spectra were recorded over the 400–4000 cm−1 range with baseline and atmospheric corrections applied, identifying changes in functional groups due to Cu doping. The optical properties were accessed using UV–Visible spectroscopy and the optical band gap energies (Eg) were assessed using the Tauc plot.

Photocatalytic testing

The photocatalytic activity of the photocatalysts was evaluated using MB as the model pollutant. Briefly, suspension of photocatalyst is placed in MB solution and was stirred in the dark for 30 min to reach adsorption–desorption equilibrium before low intensity UV illumination. Aliquots were withdrawn every 20 min, centrifuged, and the residual MB concentration was measured using a UV–Vis spectrophotometer at 665 nm29. The calibration curve for MB is shown in Fig. S1. The photocatalytic degradation efficiency was calculated using the following equation:

$$\% Degradation = \frac{{C_{0} - C_{t} }}{{C_{0} }} \times 100\%$$

where C0 = initial concentration of MB; Ct = residual concentration of MB at ‘t’ minute.

Anti-bacterial test

The synthesized 1% Cu-doped BiVO4 was tested for their antibacterial activity using the disc diffusion method as previously reported30,31. The Gram-positive and Gram-negative bacteria that were employed were Staphylococcus aureus (S. aureus) and Escherichia coli (E. coli), respectively. Both gram-positive and gram-negative bacteria were cultured for a whole night at 37 °C in Lysogeny Broth (LB) medium. Mueller–Hinton agar plates were inoculated with bacterial suspensions at a density of 1.5 × 106 CFU/mL and turbidity of 0.5 McFarland standard. Ten sterile filter discs, each measuring 6 mm in diameter, were then impregnated with 1 mg/mL of 1% Cu-doped BiVO4 suspension. Ethanol served as the negative control, and standard susceptibility discs containing chloramphenicol and streptomycin acted as the positive control. The inhibition zone (mm) of the 1% Cu-doped BiVO4 was measured using a vernier calliper. The experimental results were expressed as mean ± standard deviation (SD) of five replicates.

Results and discussion

The crystalline structure and phase composition of the synthesized bare and Cu-doped BiVO4 were analyzed using X-ray diffraction (XRD). As shown in Fig. 2a, all samples exhibited a monoclinic structure, with prominent peaks indexed to the (121) plane at a 2θ angle of approximately 28.9°, consistent with JCPDS no. 14-0688. The 1 wt% Cu-doped BiVO4 showed a peak shift to higher 2θ angles, while higher Cu doping levels (3 wt% and 5 wt%) resulted in shifts to lower angles. These shifts are attributed to the substitution of Bi3+ ions (1.03 Å) with smaller Cu2+ ions (0.73 Å), causing lattice contraction. Conversely, the decrease in the diffraction angle at higher Cu doping levels may result from strain induced by the substitution of Cu2+ for V5+ ions, leading to localized lattice distortion and a slight expansion of the unit cell32. The disappearance of one of the low-angle peaks (< 20°) in Cu-doped samples compared to bare BiVO4 can be attributed to lattice distortion and structural rearrangement caused by the substitution of Bi3+ with smaller Cu2+ ions, which suppresses or merges closely spaced crystal planes in this region33. Furthermore, the significant increase in peak intensity observed in the Cu-doped samples suggests improved crystallinity and possible preferential orientation induced by Cu incorporation during hydrothermal synthesis. The full-width at half-maximum (FWHM) values and corresponding crystallite sizes were calculated using the Scherrer equation (Table 1). The bare BiVO4 exhibited the largest crystallite size (27.37 nm), while the 1 wt% Cu-doped BiVO4 sample showed a reduced size (25.12 nm), indicating that Cu doping promotes defect formation and reduces particle aggregation. Crystallite size slightly increased at higher Cu doping levels (3 wt% and 5 wt%), likely due to the coalescence of smaller particles. The observed trends in peak shifts and crystallite size suggest a trade-off between lattice strain and defect generation with varying Cu doping concentrations.

Fig. 2
figure 2

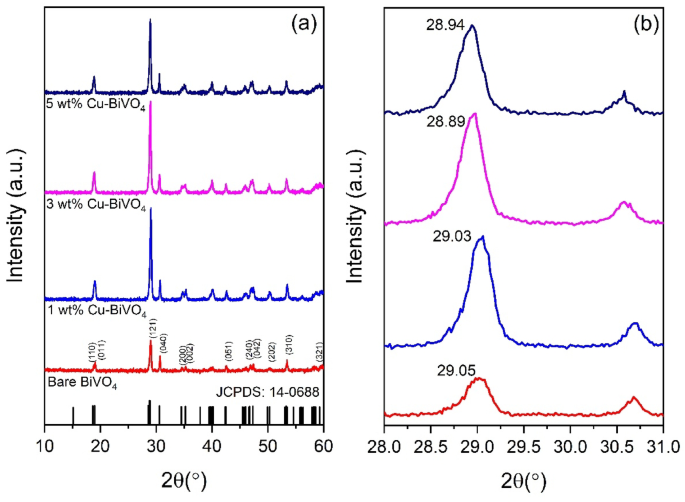

(a) XRD analysis of bare and Cu-doped BiVO4. (b) Magnified view of the (121) diffraction peak showing shifts with Cu doping.

Full size image
Table 1 FWHM value and crystalline size for bare and Cu-doped BiVO4.
Full size table

The changes in lattice parameters confirm the effective incorporation of Cu ions into the BiVO4 lattice, thereby modifying its electronic and structural properties, which are crucial for optimizing photocatalytic performance.

The functional groups and lattice vibrations of the synthesized bare and Cu-doped BiVO4 samples were analyzed using Fourier transform infrared (FTIR) spectroscopy, as shown in Fig. 3.

Fig. 3
figure 3

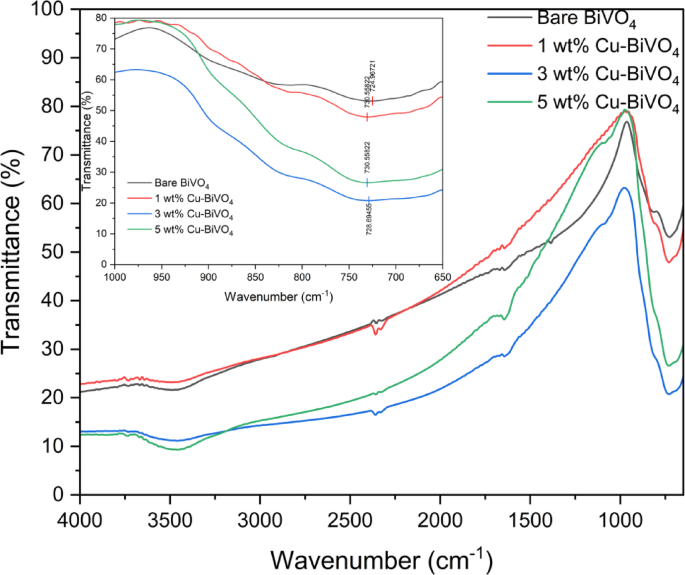

FTIR spectra of bare and Cu-doped BiVO4 with varying Cu contents (1 wt%, 3 wt%, and 5 wt%). Inset: Enlarged view of the 650–1000 cm−1 region.

Full size image

The FTIR spectra revealed characteristic vibrational bands corresponding to BiVO4 with specific attention to the V–O bond vibrations within the VO4 tetrahedral structure. Peaks were observed in the range of 750–900 cm−1, consistent with the stretching modes of V–O bonds34. The wavenumber shifts in this region were notable as shown in the inset of Fig. 3, with bare BiVO4 showing a peak at 728.69 cm−1, while Cu-doped BiVO4 samples exhibited peaks at 730.56 cm−1 (1 wt% and 3 wt%) and 724.97 cm−1 (5 wt%). These shifts are attributed to distortions in the BiVO4 lattice caused by the substitution of Cu2+ ions for Bi3+ or V5+ ions. The ionic radius mismatch between Cu2+ (0.73 Å) and Bi3+ (1.03 Å) induces lattice strain and creates oxygen vacancies, altering the vibrational environment and leading to the observed peak shifts. Additionally, broader and more intense peaks in the Cu-doped samples suggest the formation of oxygen vacancies and changes in bond strength due to the doping process. The presence of oxygen vacancies enhances the local electronic environment, potentially improving charge separation and photocatalytic activity.

The morphology and surface characteristics of the synthesized bare and Cu-doped BiVO4 were examined using scanning electron microscopy (SEM). As depicted in Fig. 4a, bare BiVO4 displayed irregularly shaped particles with relatively large sizes and a rough surface morphology, ranging from near-spherical to polyhedral structures. The particles exhibited a loosely packed arrangement with limited porosity. In comparison, the Cu-doped BiVO4 as shown in Fig. 4b–d showed significant changes in morphology. The particle size decreased progressively with Cu doping, particularly in the 1 wt% Cu-doped BiVO4, which exhibited the smallest and most uniformly distributed particles. This reduction in size is attributed to Cu-induced lattice distortion, which inhibits particle aggregation during synthesis. Although BET and BJH pore size distribution analyses are absent in this study, analogous hydrothermally synthesized Cu-doped BiVO4 systems have been reported to demonstrate increased mesoporosity and surface roughness, attributable to lattice distortion and reduced particle aggregation27. These morphological alterations are claimed to enhance the accessibility of reactive sites, thereby correlating with the improved photocatalytic performance observed in this study.

Fig. 4
figure 4

SEM images of (a) bare BiVO4, (b) 1 wt% Cu–BiVO4, (c) 3 wt% Cu–BiVO4, and (d) 5 wt% Cu–BiVO4 at 300× magnification.

Full size image

Enhanced porosity likely increases the surface area, which is advantageous for catalytic applications requiring efficient interfacial interactions.

The incorporation of Cu atoms within the BiVO4 lattice was visually evident, particularly in the 1 wt% Cu-doped sample (Fig. 4b), where the Cu distribution appeared homogeneous across the catalyst surface. Higher Cu doping levels (3 wt% and 5 wt%) resulted in observable clustering, which could be attributed to excess Cu species forming separate phases or aggregates, potentially reducing photocatalytic efficiency as shown in Fig. 4c and d, respectively. Overall, the SEM analysis highlights that Cu doping significantly impacts particle size, morphology, and surface structure. These morphological changes contribute to an increased active surface area and improved photocatalytic performance, particularly for the 1 wt% Cu-doped BiVO4, which demonstrates an optimal balance between porosity, particle size, and structural integrity. The incorporation of Cu into the BiVO4 lattice is supported by XRD peak shifts (Fig. 2) and FTIR band changes (Fig. 3), indicating lattice contraction and modifications in the local bonding environment. The SEM images reflect morphological changes associated with Cu doping but do not provide direct evidence of atomic-level incorporation. The observed highly porous surface morphology in the prepared samples aligns with crystallite size calculations derived from XRD analysis and previous studies on Cu-doped BiVO4, which reported suppressed particle growth and enhanced size uniformity. These findings are consistent with prior high-resolution transmission electron microscopy (HRTEM) investigations of Cu-doped BiVO4, which confirmed dopant-induced structural modifications35.

The band gap energies (Eg) were estimated via Tauc plots, as shown in Fig. 5. The Eg for bare BiVO4 was calculated to be 2.88 eV, consistent with its known optical characteristics. Cu doping significantly influenced the band gap energies. The 1 wt% Cu-doped BiVO4 showed the lowest band gap of 2.24 eV, representing a substantial narrowing compared to the bare sample. This reduction enhances visible light absorption, facilitating more effective electron excitation and increasing the generation of electron–hole pairs, which are critical for photocatalytic activity. The observed narrowing of the band gap is attributed to the introduction of intermediate energy levels by Cu ions, which modify the electronic structure of BiVO4. The smaller band gap facilitates electron excitation, leading to more effective generation of electron–hole pairs for photocatalysis as the ability to absorb light is enhanced due to the broaden region of electromagnetic wave that could excite the electron36. Interestingly, as the Cu doping concentration increased to 3 wt% and 5 wt%, the band gap energy increased slightly to 2.55 eV and 2.44 eV, respectively. This trend suggests that excessive doping introduces structural distortions and defect states, which may partially hinder light absorption. Similar trends have been observed in other studies where excessive dopant concentrations lead to the aggregation of dopant species, altering the electronic band structure and reducing photocatalytic performance37,38. The band gap narrowing observed at optimal doping levels (1 wt%) enhances light utilization across a broader spectrum, making the material more efficient under low-intensity UV light.

Fig. 5
figure 5

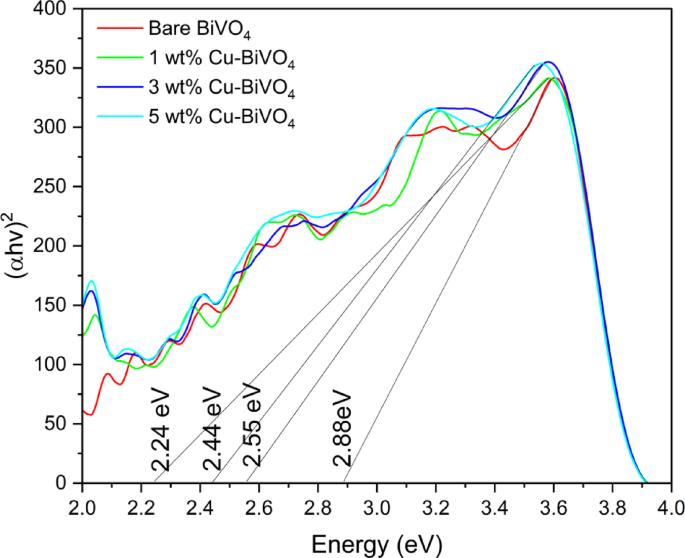

Band gap energy estimation using Tauc plot.

Full size image

This anomaly can be explained by the interplay between defect-related and structural effects. At lower Cu concentrations, substitutional Cu2+ ions introduce shallow defect states and oxygen vacancies, which effectively narrow the band gap and improve visible light absorption. However, at higher Cu loadings, excessive doping may lead to local lattice distortions or dopant clustering, creating deep-level defect states that trap carriers without contributing to photocatalytically active transitions39. These competing effects result in a non-monotonic variation in band gap with increasing Cu content.

While a more comprehensive evaluation of band gap energies via diffuse reflectance spectroscopy (DRS) utilizing the Kubelka–Munk function was precluded by instrumental constraints, the observed band gap narrowing in our current study demonstrates consistency with prior DRS-based investigations of Cu-doped BiVO4, which reported reductions to 2.2–2.4 eV dependent on Cu concentration40,41. Furthermore, despite the absence of direct evidence from photoluminescence (PL), photocurrent response, or electrochemical impedance spectroscopy (EIS) within this study, the observed band gap narrowing, crystallite size reduction, and enhanced photocatalytic activity are consistent with prior reports indicating that Cu doping in BiVO4 significantly enhances charge separation and transfer characteristics41. These correlations suggest that Cu incorporation enhances both the electronic and surface properties of BiVO4, thereby contributing to the improved photocatalytic performance observed in this investigation.

The photocatalytic activity of bare and Cu-doped BiVO4 samples was evaluated using MB degradation , as shown in Fig. 6a. A preliminary adsorption test was conducted by stirring the catalyst-MB solution in the dark for 30 min to achieve adsorption–desorption equilibrium. The results indicate that adsorption performance was relatively low for all samples, with the highest adsorption observed for the 3 wt% Cu-doped BiVO4 at approximately 8%. This suggests that the degradation efficiency of the catalyst under UV light is primarily due to photocatalytic activity rather than physical adsorption of MB. Control experiments revealed that MB photolysis in the absence of a catalyst was negligible, with no significant degradation observed under UV light over 180 min. This confirms the essential role of the catalyst in facilitating the photodegradation of MB. Among the samples, the 1 wt% Cu-doped BiVO4 achieved the highest MB degradation efficiency, exceeding 85% after 180 min. The bare BiVO4, by comparison, degraded only 8% of MB under identical conditions. The enhanced performance of the 1 wt% Cu-doped BiVO4 is attributed to its optimized band gap energy (2.24 eV), improved light absorption, and effective charge separation, which facilitate the generation of ROS. As the Cu doping concentration increased to 3 wt% and 5 wt%, the degradation efficiency declined, likely due to excessive dopant-induced defects and clustering, which hinder light absorption and electron–hole pair separation. The degradation kinetics were analyzed using the pseudo-first-order (PFO) model, as shown in Fig. 6b. The calculated rate constant (k) for the 1 wt% Cu-doped BiVO4 was 0.00306 min−1, representing a 8.8-fold increase compared to the bare BiVO4, which had a rate constant of 0.000346 min−1. This dramatic improvement highlights the critical role of Cu doping in enhancing photocatalytic performance by improving charge carrier dynamics and promoting the generation of ROS. For higher Cu doping concentrations, the rate constants were 0.000734 min−1 (3 wt%) and 0.00119 min−1 (5 wt%), corresponding to 2.1-fold and 3.44-fold increases, respectively, relative to the bare BiVO4. These findings emphasize that while Cu doping is essential for enhancing photocatalytic activity, excessive doping can introduce detrimental effects, such as defect-induced recombination and reduced light absorption. Similar pattern was observed in which the rate constant initially increased and subsequently decreased for the degradation of Rhodamine B using Cu-doped BiVO435.

Fig. 6
figure 6

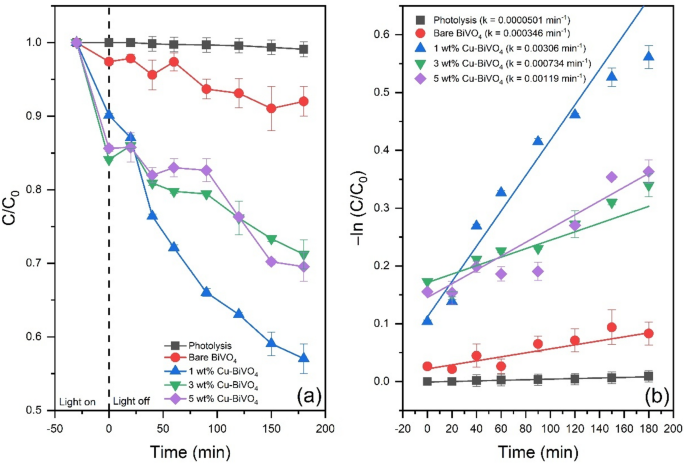

(a) Photocatalytic degradation of MB using bare and Cu-doped BiVO4. (b) pseudo-first-order kinetic plots (− ln(C/C₀) versus time). Error bars represent the standard deviation (SD) from triplicate measurements.

Full size image

The initial pH of the solution plays a key role in photocatalytic processes, as it influences the degradation of dye molecules by affecting the surface electrical charge properties of the catalyst42. The pH value also affects the dissociation ability of compounds, the charge distribution on the catalyst surface, and the oxidation potential of the catalyst’s VB43. The influence of pH on the photocatalytic degradation of MB using 1 wt% Cu-doped BiVO4 was investigated. . Fig. 7a shows the degradation efficiencies at three distinct pH levels: acidic (pH 4.7), near-neutral (pH 6.25), and basic (pH 9.7). The results reveal that basic conditions (pH 9.7) yielded the highest degradation efficiency, achieving 62% MB degradation within 180 min. In comparison, the near-neutral condition (pH 6.25) and acidic condition (pH 4.7) resulted in efficiencies of 43% and 13%, respectively. The superior performance under basic conditions is attributed to the favorable surface charge properties of the catalyst and the enhanced generation of ·OH. At pH values above the isoelectric point of BiVO4 (approximately pH 3.4), the catalyst surface becomes negatively charged, facilitating the adsorption of positively charged MB molecules and promoting ROS generation. The presence of these radicals is enhanced in alkaline environments, leading to more effective breakdown of MB molecules44. Conversely, under acidic conditions, the catalyst surface is predominantly positively charged, leading to electrostatic repulsion between the catalyst and MB molecules. Additionally, the excess protons (H+) in acidic media can scavenge ·OH, reducing their availability for MB degradation. The degradation kinetics at different pH levels were analyzed using the PFO model, as shown in Fig. 7b. The calculated rate constant (k) was highest under basic conditions (k = 0.00764 min−1), followed by near-neutral (k = 0.00264 min−1) and acidic conditions (k = 0.000613 min−1). The rate constant under basic conditions exhibited a 12.5-fold increase compared to acidic conditions, demonstrating the significant impact of pH on photocatalytic performance.

Fig. 7
figure 7

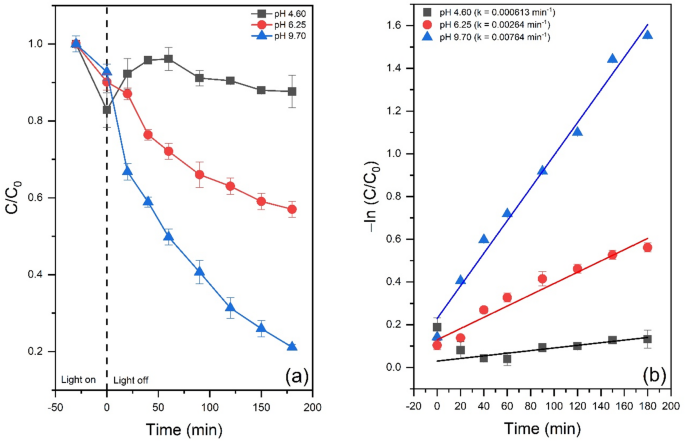

(a) Effect of solution pH on MB degradation. (b) pseudo-first-order kinetic plots (− ln(C/C₀) versus time). Error bars represent the standard deviation (SD) from triplicate measurements.

Full size image

In this study, three different catalyst loadings of 1 wt% Cu-doped BiVO4 were investigated: 50 mg, 100 mg, and 200 mg in 100 mL of MB solution. The results presented in Fig. 8a indicate a direct correlation between the amount of catalyst used and the efficiency of the photocatalytic degradation process. Increasing the catalyst loading from 50 to 200 mg led to a significant improvement in degradation efficiency. At 50 mg, MB degradation efficiency was approximately 38%, which increased to 62% and 85% for 100 mg and 200 mg, respectively, after 180 min. The enhanced performance with higher catalyst loading is attributed to the increased availability of active sites, which facilitates greater generation of ROS and accelerates the photocatalytic degradation process. However, further increases in catalyst loading beyond 200 mg may lead to diminishing returns due to excessive turbidity in the reaction mixture. However, beyond a certain threshold, further increases can reduce efficiency due to increased turbidity, which scatters light and diminishes its effectiveness45. Although further increases in catalyst loading beyond 200 mg were not tested in this study, previous reports indicate that excessive catalyst concentrations can lead to increased turbidity and particle agglomeration, which scatter light and reduce effective photon penetration, ultimately diminishing photocatalytic efficiency46. The degradation kinetics were analyzed using the PFO model, as shown in Fig. 8b. The rate constant (k) increased with catalyst loading, with values of 0.00524 min−1 for 50 mg, 0.00757 min−1 for 100 mg, and 0.00741 min−1 for 200 mg. The results indicate that increasing the catalyst loading from 50 to 200 mg resulted in a 1.4-fold increase in the rate constant. This trend highlights the direct relationship between catalyst loading and the rate of photocatalytic reactions.

Fig. 8
figure 8

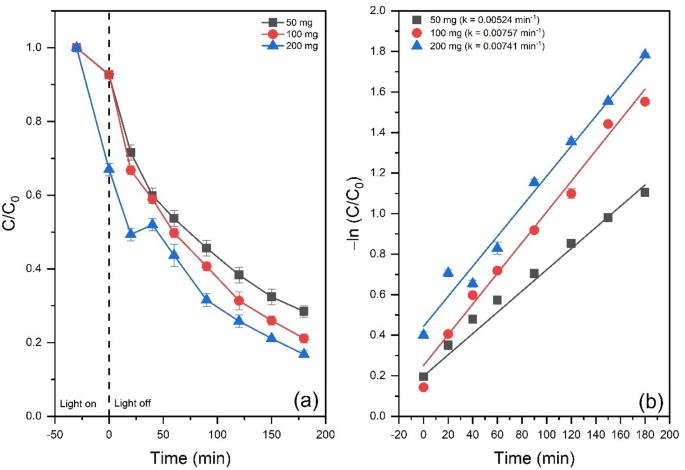

(a) Effect of catalyst loading on MB degradation. (b) pseudo-first-order kinetic plots (− ln(C/C₀) versus time). Error bars represent the standard deviation (SD) from triplicate measurements.

Full size image

The impact of initial MB concentration on photocatalytic degradation efficiency was evaluated using 1 wt% Cu-doped BiVO4 under low-intensity UV light (13 W). Initial MB concentrations of 5 mg/L, 10 mg/L, and 20 mg/L were tested, with the results presented in Fig. 9a. The degradation efficiency decreased as the initial MB concentration increased, highlighting the inverse relationship between MB concentration and photocatalytic performance. At 5 mg/L, the photocatalytic efficiency reached approximately 85% within 180 min. However, at 10 mg/L and 20 mg/L, the efficiencies dropped to 79% and 17%, respectively. The reduced performance at higher concentration (20 mg/L) is attributed to the increased number of MB molecules competing for the available ROS and active sites on the catalyst surface. Additionally, higher concentrations result in greater light absorption by the MB itself, limiting the photons available to excite the catalyst and reducing the generation of electron–hole pairs47. It is noted that the apparent adsorption of MB in the dark for the 10 mg/L solution was slightly higher than the other concentrations, which may reflect minor experimental variability in catalyst dispersion or adsorption kinetics during the equilibrium stage. This does not significantly impact the overall trend, as photocatalytic degradation under UV irradiation remains the dominant mechanism for MB removal across all concentrations tested.

Fig. 9
figure 9

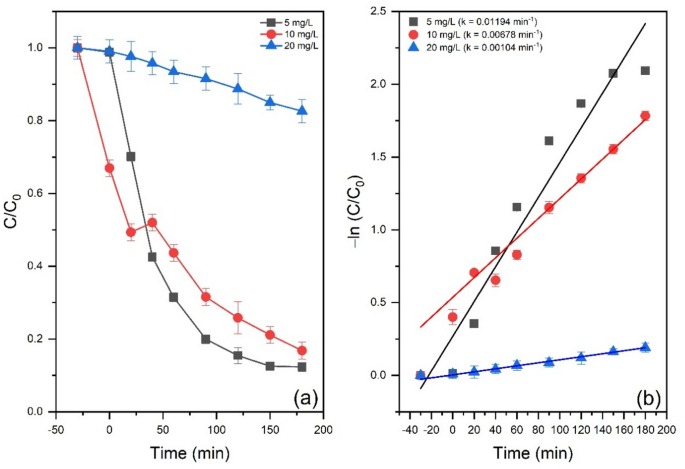

(a) Effect of initial MB concentration on MB degradation. (b) pseudo-first-order kinetic plots (− ln(C/C₀) versus time). Error bars represent the standard deviation (SD) from triplicate measurements.

Full size image

The degradation kinetics for varying initial MB concentrations were analyzed using the PFO model, as shown in Fig. 9b. The calculated rate constants (k) were 0.01194 min−1 for 5 mg/L, 0.00684 min−1 for 10 mg/L, and 0.00104 min−1 for 20 mg/L. These results indicate a 2.7-fold decrease in the rate constant when the MB concentration increased from 5 to 20 mg/L. This trend confirms that higher MB concentrations impede the photocatalytic process by limiting the availability of active sites and reducing the penetration of light into the solution. The observed decline in photocatalytic efficiency and reaction rates with increasing MB concentration is consistent with previous studies48,49.

Radical trapping experiments were conducted to identify the primary ROS responsible for the photocatalytic degradation of MB. Methanol, ascorbic acid (AA), ethylenediaminetetraacetic acid (EDTA), and tert-butanol (Tert-OH) were employed as scavengers for ·OH, ·O2−, and h+, respectively50. The results are summarized in Fig. 10. The addition of methanol significantly suppressed MB degradation, confirming that ·OH play a crucial role in the photocatalytic process. Similarly, AA, a scavenger for ·O2−, caused a substantial reduction in photocatalytic activity, indicating that ·O2− is also a key reactive species. The introduction of EDTA, which acts as an h+ scavenger, moderately inhibited the degradation efficiency, suggesting that h+ contribute to the reaction but are less significant than ·OH and ·O2−. The moderate suppression observed with Tert-OH further highlights the importance of ·OH in the degradation process. Interestingly, methanol showed stronger inhibition compared to Tert-OH, which can be attributed to its dual role as both a ·OH scavenger and a h+ scavenger, making it more effective in quenching the reactive species involved in the photocatalytic mechanism51. The results of the trapping experiments confirm that ·OH and ·O2− are the primary ROS responsible for MB degradation, with ·OH being slightly more dominant.

Fig. 10
figure 10

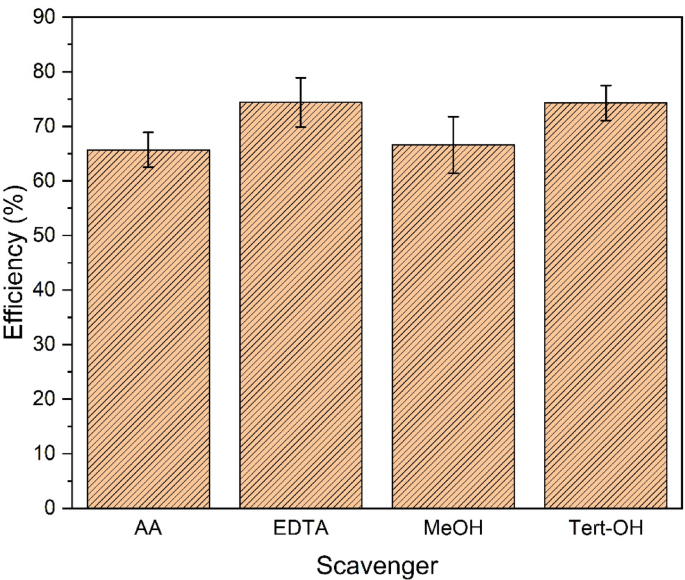

Radical trapping test. Error bars represent the standard deviation (SD) from triplicate measurements.

Full size image

The stability and reusability of the 1 wt% Cu-doped BiVO4 catalyst were assessed through three consecutive photocatalytic degradation cycles as shown in Fig. 11. Following each cycle, the photocatalysts underwent a washing process with deionized water and ethanol, subsequently being dried at 80 °C prior to subsequent usage. In the first cycle, the MB degradation efficiency reached 85.6%. However, a slight decline was observed in subsequent cycles, with efficiencies of 81.8% and 78.9% recorded for the second and third cycles, respectively. This corresponds to a total reduction of 6.7% in photocatalytic performance over three cycles, indicating excellent stability and reusability of the catalyst. The gradual decline in efficiency can be attributed to the adsorption of degradation byproducts on the catalyst’s active sites, a phenomenon known as catalytic poisoning52. These byproducts may block the active sites and hinder the catalyst’s ability to facilitate photocatalytic reactions. Chemical characterization of the recycled catalyst, as shown in Fig. S2, revealed minor changes in the FTIR spectra, including a slight shift in the V–O vibrational peak from 730.56 cm to 728.69 cm−1, which can be attributed to the adsorption of organic residues. While XPS analysis before and after photocatalytic use could not be performed in this study due to instrumentation constraints, the excellent reusability performance (> 92% retained activity over three cycles) suggests structural and chemical stability of the catalyst.

Fig. 11
figure 11

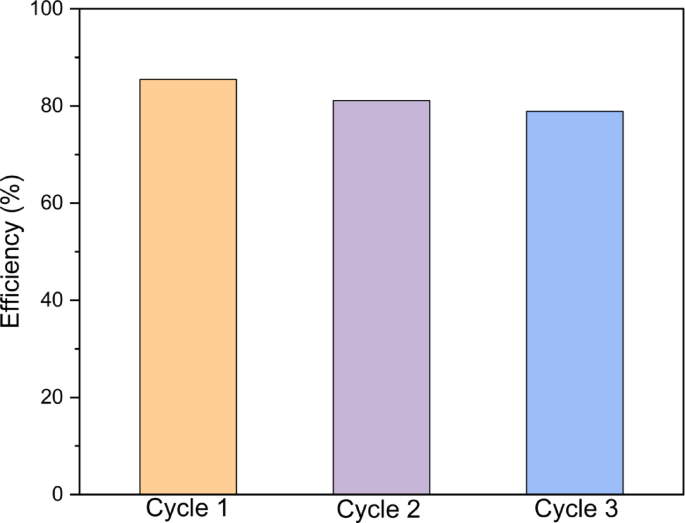

Recycling tests of 1 wt% Cu-doped BiVO4 for MB degradation.

Full size image

Possible photodegradation mechanism of MB

A possible photocatalytic degradation mechanism for MB using 1 wt% Cu-doped BiVO4 under low-intensity UV light irradiation can be proposed, 4 as shown in Fig. 12.

Fig. 12
figure 12

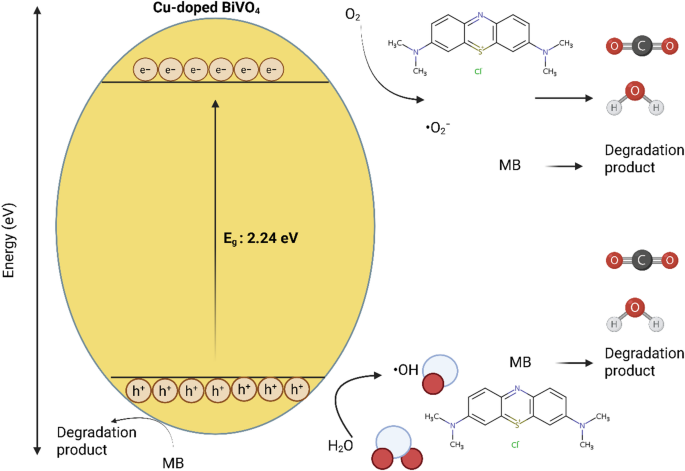

Proposed MB degradation mechanism on 1 wt% Cu-doped BiVO4. Drawn with BioRender.com.

Full size image

The proposed photocatalytic mechanism involves several interconnected steps: (1) Cu doping reduces the BiVO4 band gap from 2.88 to 2.24 eV, enhancing light absorption and promoting electron excitation from the VB to the CB; (2) Cu ions act as electron traps, facilitating charge separation and suppressing recombination; (3) photogenerated electrons react with dissolved O2 to produce ·O2− radicals, while holes oxidize water or OH− to form ·OH radicals; (4) these ROS attack MB molecules, leading to stepwise demethylation, aromatic ring cleavage, and mineralization. The dominance of ·OH and ·O2− species is corroborated by radical scavenging experiments (Fig. 10), which showed substantial suppression of MB degradation upon the addition of methanol and ascorbic acid.

Similar findings have been reported in other doped ternary oxide systems. For instance, Mg-doped Zn2SnO4 exhibited a substantial band gap reduction (3.82–3.74 eV) and a significant increase in surface area, with oxygen vacancies playing a critical role in enhancing ROS generation and pollutant degradation efficiency53. Likewise, Ba-alloyed Zn2SnO4 demonstrated that dopant incorporation induces compressive strain and creates additional defect states, leading to improved charge transfer and higher ·OH radical production54. These observations align with our radical scavenger results (Fig. 10), confirming that ·OH radicals are the dominant reactive species in Cu-doped BiVO4 photocatalysis and highlighting the crucial role of defect engineering in boosting photocatalytic efficiency.

  1. 1.

    Photoexcitation:

    $${\text{Cu-BiVO}}_{{4}} + h\nu \left( {\text{UV light}} \right)\, \to \,{\text{Cu-BiVO}}_{{4}} \left( {{\text{e}}^{ - } + {\text{h}}^{ + } } \right)$$
  2. 2.

    Charge separation enhancement by Cu doping:

    Cu doping reduces electron-hole recombination, improving the efficiency of charge carriers.

  3. 3.

    Reactive species formation:

    $${\text{h}}^{ + } + {\text{H}}_{2} {\text{O}} \to \cdot {\text{OH}}$$
    $${\text{e}}^{ - } + {\text{O}}_{2} \to {\text{O}}_{2}^{ \cdot - }$$
  4. 4.

    Degradation of MB:

    $${\text{MB}} + {{ \cdot {\text{OH}}} \mathord{\left/ {\vphantom {{ \cdot {\text{OH}}} { \cdot {\text{O}}_{2}^{ - } }}} \right. \kern-0pt} { \cdot {\text{O}}_{2}^{ - } }} \to {\text{Oxidized intermediates}} \to {{{\text{CO}}_{2} } \mathord{\left/ {\vphantom {{{\text{CO}}_{2} } {{\text{H}}_{2} {\text{O}}}}} \right. \kern-0pt} {{\text{H}}_{2} {\text{O}}}}$$

Although LC–MS or HPLC analysis could not be conducted in this study to experimentally confirm intermediates, the proposed pathway aligns with findings from previous photocatalytic studies where MB degradation intermediates, such as azure A/B/C, thionine, and demethylated aromatic fragments, were identified using LC–MS and HPLC analyses55,56. Herein, the proposed degradation pathway of MB likely involves multiple oxidative and reductive processes mediated by ROS such as ·OH and ·O2− as previously reported57,58. These processes initiate bond cleavage in the MB molecule, leading to the formation of intermediate organic compounds, which subsequently degrade into inorganic end-products such as CO2, H2O, Cl−, SO42−, and NO3−. The degradation process begins with the cleavage of the N–CH3 bond, as it has one of the lowest bond dissociation energies. The methyl groups (–CH3) are oxidized to formaldehyde (HCHO) or formic acid (HCOOH). Concurrently, oxidation reactions lead to the conversion of sulfur-containing groups in MB, such as Cl–S groups, into sulfoxide (S=O) and sulfone species, destabilizing the central aromatic structure of the dye molecule. For example, ·OH radicals attack the heteroaromatic ring and sulfur groups, resulting in the opening of the central aromatic structure and the formation of smaller organic compounds. Similar studies have identified key intermediates such as azure A, azure B, azure C, and thionine during MB degradation59. These intermediates confirm the stepwise cleavage of bonds in the MB molecule, leading to simpler fragments. The heteroaromatic rings undergo successive oxidations and bond cleavages. The C–S bonds and remaining C–N bonds are progressively broken, resulting in the dissociation of the aromatic rings into simpler structures. Sulfur-containing intermediates are further oxidized to sulfate ions (SO42−), while nitrogen-containing intermediates oxidize to nitrate ions (NO3−) and ammonium (NH4+). As the degradation progresses, the remaining organic intermediates are oxidized into smaller volatile molecules, including CO2 and H2O. Simultaneously, mineral ions such as Cl−, SO42−, and NO3− are released into the solution. Although no specific experiments were conducted in this study to confirm these intermediates, the proposed pathway aligns with findings from similar photocatalytic studies.

Comparison with previous study

Previous literature on BiVO4-based photocatalysts has demonstrated significant advancements in dye degradation under various conditions as shown in Table 2. For example, Fe-loaded BiVO4 achieved an impressive 81% degradation of MB within 30 min under visible light60, while rGO/BiVO4 BiPO exhibited 94.4% degradation efficiency at pH 9 under similar light conditions61. Other studies reported modifications such as Mo-doping, which enabled 88.57% degradation of MB within 120 min under visible light. These findings highlight the effectiveness of doping strategies and structural modifications in enhancing the photocatalytic performance of BiVO4. In comparison, the current study achieved 85% MB degradation within 180 min using 1 wt% Cu-doped BiVO4 under a low-intensity UV lamp (13 W). This result is particularly notable as it was accomplished with significantly lower energy requirements compared to studies utilizing high-energy light sources. Additionally, the hydrothermal synthesis method employed here is both simple and cost-effective, offering scalability without sacrificing performance. The reduced band gap energy (2.24 eV) and improved charge separation achieved through Cu doping further highlight the advancements in photocatalytic efficiency introduced by this study. Beyond photocatalytic performance, this work distinguishes itself by demonstrating the dual functionality of Cu-doped BiVO4. While most prior studies focus solely on pollutant degradation, the antibacterial activity of Cu-doped BiVO4 against S. aureus in dark conditions provides an added advantage. This dual functionality addresses both organic pollutant degradation and microbial contamination, making it a versatile material for environmental remediation. In summary, the findings of this study not only surpass the degradation efficiency of many previously reported BiVO4-based photocatalysts under low-energy conditions but also introduce novel functionalities and operational efficiencies. The dual-purpose capability and scalable synthesis approach position Cu-doped BiVO4 as a promising candidate for practical applications in wastewater treatment and environmental remediation.

Table 2 MB degradation performance using various BiVO4 based photocatalysts.
Full size table

Cost analysis

The economic viability of synthesizing Cu-doped BiVO4 photocatalysts for practical applications was evaluated by analyzing the costs associated with raw materials, synthesis methods, and potential scalability. The synthesis of 1 wt% Cu-doped BiVO4 was evaluated for cost efficiency, yielding approximately 3.5 g of the catalyst at a total production cost of RM 26.48, which corresponds to RM 7.57 per gram. The primary chemicals used in synthesizing Cu-doped BiVO4, including Bi(NO3)3·H2O, NH4VO3, and CuSO4·5H2O, are relatively accessible and moderately priced. The doping process involves minimal amounts of Cu precursor, typically ranging from 1 to 5% by weight percentage. The synthesis process demonstrated a competitive cost structure compared to other photocatalysts. For instance: BiVO4-based composites involving complex heterojunctions or co-catalysts often exceed RM 10.00 per gram due to additional material and processing requirements. Advanced catalysts such as BiVO4-rGO hybrids require graphene oxide precursors, significantly increasing material costs to over RM 15 per gram. The hydrothermal method employed for synthesizing Cu-doped BiVO4 is energy-intensive but offers high yields and superior material properties, such as controlled crystallite size and phase purity. The operational costs associated with maintaining a reaction temperature of 180 °C for 15 h are a significant factor. The operational energy requirement for photocatalytic applications is notably low due to the catalyst’s ability to function under low-intensity UV light. Using a low-power (13 W) UV lamp significantly reduces electricity costs, making this catalyst ideal for low-energy, environmentally friendly applications. Additionally, the demonstrated stability and reusability of the Cu-doped BiVO4 catalyst, with minimal loss of activity over three cycles, further enhance its cost-effectiveness by reducing the need for frequent material replacement. Table 3 depicts the estimated cost associated with the synthesis of the 3% Cu-doped BiVO4. To further enhance the cost-efficiency of the synthesis process, several strategies can be explored. Bulk procurement of raw materials, such as Bi(NO3)3·5H2O and NH4VO3, could significantly reduce material expenses due to economies of scale. Optimizing energy consumption by refining the synthesis process, for instance, by employing lower-temperature calcination or shorter reaction times, may decrease production costs without compromising the quality of the catalyst. Additionally, investigating renewable or waste-derived precursors for raw materials could provide a sustainable and cost-effective alternative, aligning with the growing emphasis on green chemistry. These approaches could further improve the economic viability of Cu-doped BiVO4 for large-scale environmental remediation applications.

Table 3 Estimated costs involved in the synthesis of 1% Cu-doped BiVO4.
Full size table

To assess the economic robustness of synthesizing 1 wt% Cu-doped BiVO4, a Monte Carlo simulation was performed using MATLAB R2023a. The simulation incorporated ± 10% variability in key cost inputs, including electricity tariff (RM 0.24/kWh), chemical costs, and equipment depreciation, based on market fluctuations. A total of 10,000 iterations were run to evaluate how these uncertainties affect the estimated cost per gram of catalyst. The resulting probability distribution shown in Fig. S3 follows a near-normal shape, indicating that the cost estimation model is statistically stable. The mean cost per gram was RM 7.59, with a standard deviation of RM 0.42. The 95% confidence interval (CI) ranged from RM 6.85 to RM 8.43, suggesting that the cost remains within economically viable margins even when input costs fluctuate moderately.

Antibacterial test

The antibacterial performance of the 1 wt% Cu-doped BiVO4 against E. coli and S. aureus was evaluated in dark conditions with results compared to a control (95% ethanol) and positive controls (chloramphenicol and streptomycin) as shown in Fig. 13a and b, respectively. The 1 wt% Cu-doped BiVO4 exhibited moderate antibacterial activity, with inhibition zones of 7.5 ± 0.79 mm for E. coli and 12.6 ± 0.40 mm for S. aureus, which were lower than those produced by the positive controls (chloramphenicol: 17.8 ± 3.90 mm for E. coli and 30.8 ± 3.30 mm for S. aureus; streptomycin: 20.5 ± 1.20 mm for E. coli and 39.9 ± 1.70 mm for S. aureus) as shown in Table 4.

Fig. 13
figure 13

Disk diffusion test for antibacterial activity. (a) E.coli (b) S. aureus.

Full size image
Table 4 Inhibition zone (mm) for the 1 wt% Cu-doped BiVO4.
Full size table

Notably, the ethanol control showed a slightly larger inhibition zone against E. coli (9.5 ± 1.50 mm) than 1 wt% Cu-doped BiVO4, while the photocatalyst had a marginally better effect against S. aureus (12.6 ± 0.40 mm vs. 10.5 ± 0.50 mm). In previous studies of polydopamine-rGO/BiVO4, antibacterial test performed under the presence of light will significantly increase its ability to inhibit the growth of bacteria zone67. S. aureus, has a thicker peptidoglycan layer but lacks the outer membrane present in Gram-negative bacteria like E. coli. This structural difference makes S. aureus more susceptible to the penetration and action of nanoparticles68. Additionally, the mechanisms by which nanoparticles exert their antibacterial effects, such as oxidative stress induction and metal ion release, are more effective against Gram-positive bacteria69. Doping also accounts for the effectiveness of the antibacterial property’s possess by the catalyst, where previous study revealed that Al-doped BiVO4 performs better than bare BiVO470.

It is important to note that the antibacterial tests in this study were conducted in dark conditions, thereby isolating the effects of Cu doping and associated structural defects without the contribution of photocatalytically generated ROS under light irradiation. The improved antibacterial activity can therefore be attributed to the presence of Cu-induced oxygen vacancies and lattice distortions, which are known to enhance the interaction between bacterial membranes and the catalyst surface. Defect engineering has been shown to modulate the electronic structure of oxide semiconductors by creating localized states that can act as shallow traps, improving surface reactivity. Similar observations were made previously, where defect-rich catalysts exhibited superior antibacterial activity through increased ROS generation and improved surface interactions71,72. Although ROS formation under visible light was not examined here, these findings provide a strong mechanistic context for the enhanced antibacterial performance of Cu-doped BiVO4.

Conclusion

In this study, 1 wt% Cu-doped BiVO4 photocatalyst was synthesized via a cost-effective hydrothermal method and evaluated for its photocatalytic and antibacterial properties. The incorporation of Cu significantly enhanced the photocatalytic degradation of MB under low-intensity UV light, achieving an 85% degradation efficiency within 180 min. This improvement was attributed to band gap narrowing, enhanced charge separation, and the generation of ROS, such as ·OH and ·O2−. The material also exhibited strong antibacterial activity against S. aureus, driven by photocatalytic ROS generation and the release of Cu2+ ions, making it a dual-functional material for environmental remediation. The catalyst demonstrated excellent reusability, retaining over 92% of its initial photocatalytic efficiency after three cycles, confirming its structural and functional stability. Cost analysis revealed that the material could be produced at RM 7.57 per gram, making it economically viable for large-scale applications. Moreover, the Cu-doped BiVO4 outperformed many reported BiVO4-based photocatalysts, highlighting its potential for practical deployment in energy-efficient pollutant degradation and microbial disinfection. This study serves as a preliminary investigation into the dual-functional properties of Cu-doped BiVO4, focusing on fundamental synthesis, characterization, and performance assessment. The influence of common inorganic ions (e.g., CO32−, Cl−, Na+, Ca2+), which are prevalent in real wastewater and can quench reactive radicals or compete for active sites, was not evaluated. Future studies will expand upon this work by systematically examining the effects of these ions to better establish the applicability of Cu-doped BiVO4 for large-scale water remediation. Herein, this study establishes Cu-doped BiVO4 as a promising photocatalyst with exceptional multifunctional capabilities, aligning with the goals of sustainable and scalable environmental solutions.
