From: Stability models regulate the adaptation of male sterility-based chilli hybrids for agro-ecologically diverse regions of north-western Himalayas

Fig. 4

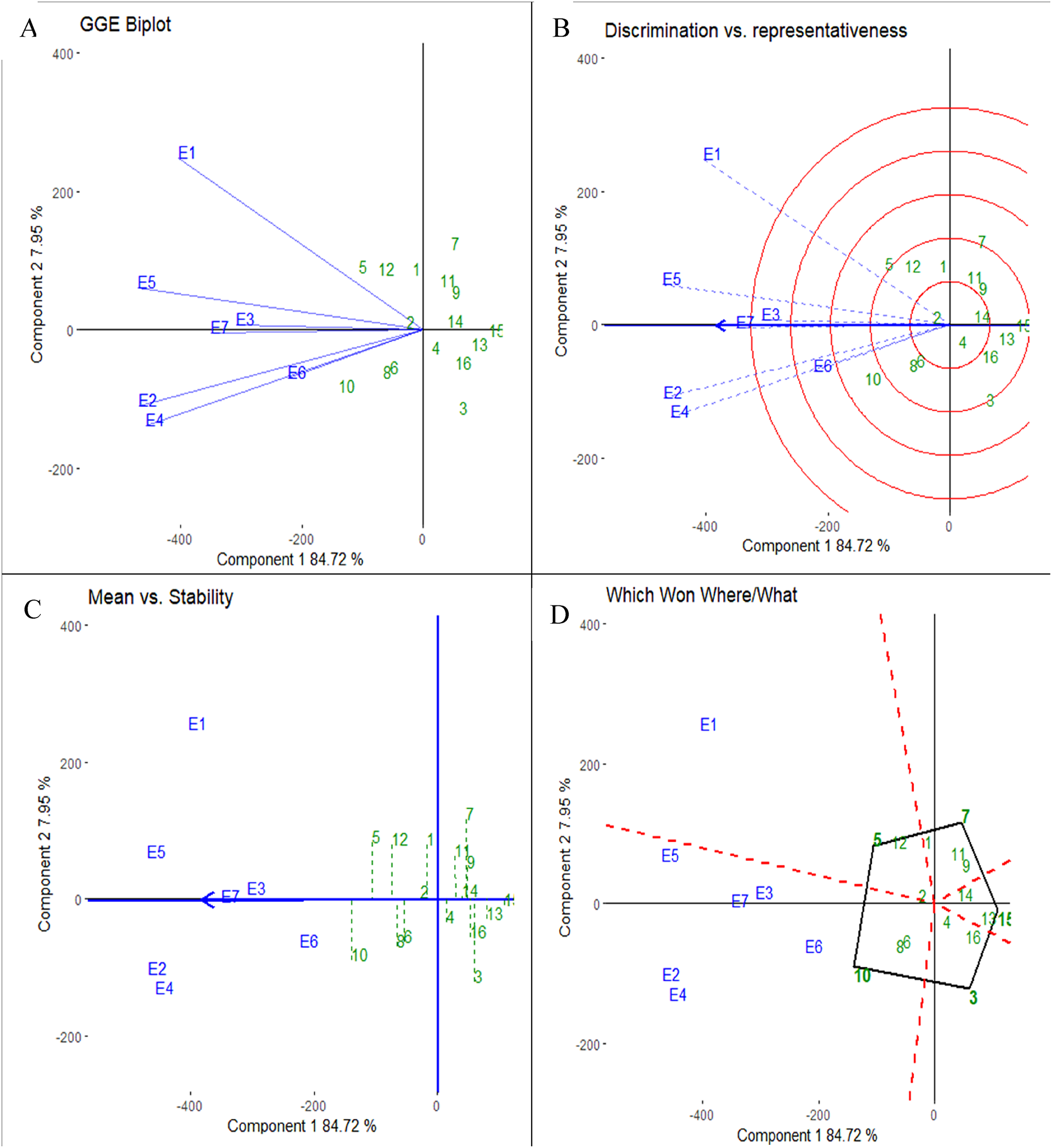

G + GE biplots for yield per plant (A) An environment vector view biplot ; (B) Discrimitiveness vs. representativeness biplot ; (C) Means vs. Stability biplot . The single arrowed horizontal line represents the AEC abscissa and the direction of AEC abscissa arrowhead indicates increasing yield. The vertical projections on the AEC abscissa indicates stability (greater the projection, higher is the instability); (D) “Which won where” biplot . Where, “E” represents the environments i.e. Palampur (E1), Conventional farming under polyhouse at Palampur (E2) and Natural farming under polyhouse at Palampur (E3), Bajaura (E4), Berthin (E5), Sundernagar (E6) and Dhaulakuan (E7). *Representation of genotypes as 1–16 where 1: DPCHYB 1, 2: DPCHYB 2, 3: DPCHYB 3, 4: DPCHYB 4, 5: DPCHYB 5, 6: DPCHYB 6, 7: DPCHYB 7, 8: DPCHYB 8, 9: DPCHYB 9, 10: DPCHYB 10, 11: DPCHYB 11, 12: DPCHYB − 12, 13: Him Palam Mirch 1, 14: Him Palam Mirch 2, 15: Surajmukhi, 16:CH-27.
