Fig. 6
From: Structural flexibility of a recombinant intrinsically disordered LEA protein from Ramonda serbica

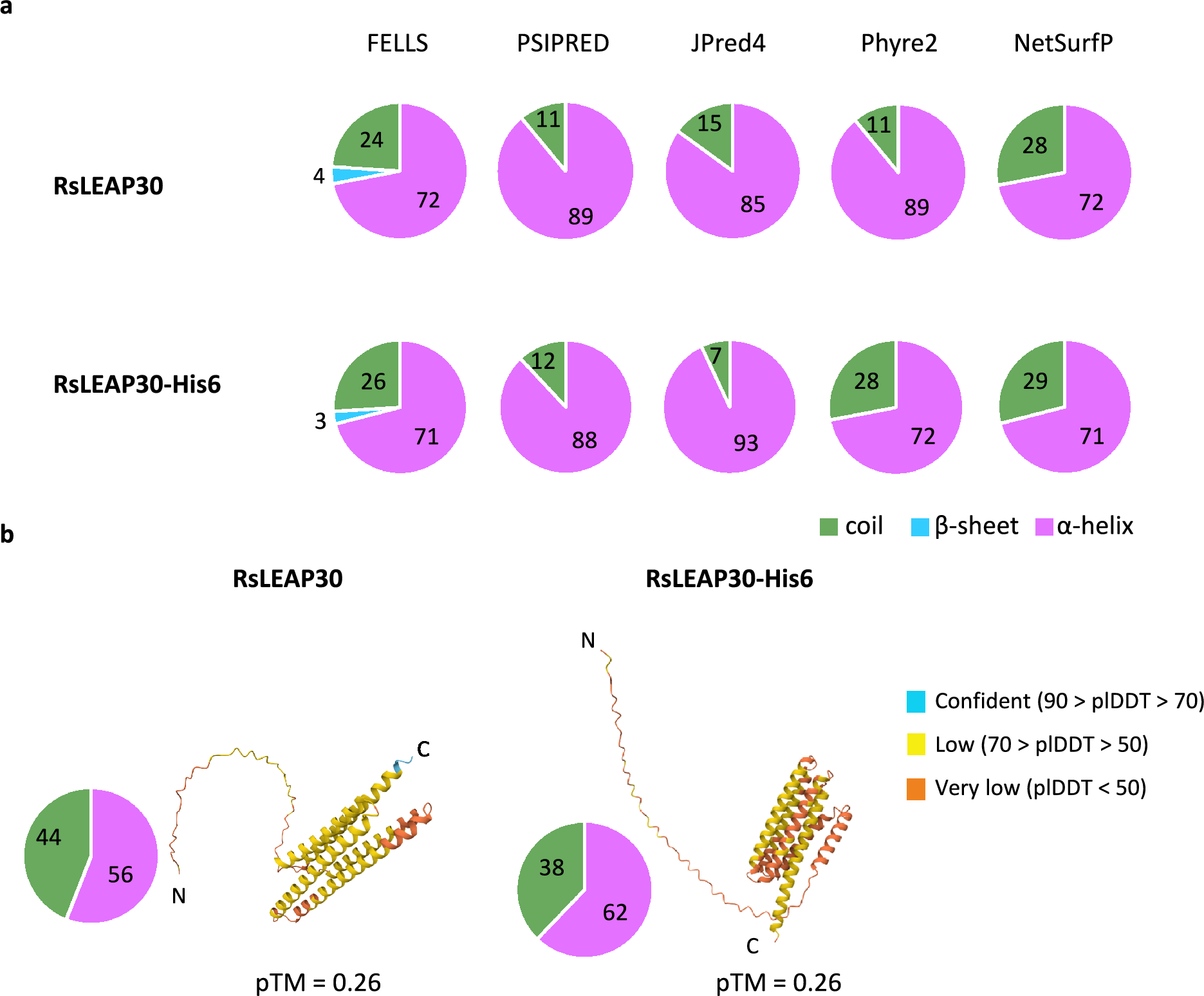

Comparative analysis of secondary and 3D structure predictions of RsLEAP30 and RsLEAP30-His6. (a) Distribution of secondary structure elements (α-helix, β-sheet and random coil) according to the five following predictors: (FELLS, PSIPRED, Phyre2, Jpred4, NetSurfP) (b) Predicted RsLEAP30 and RsLEAP30-His6 models, confidence and contribution of secondary structure elements (α-helix and random coil) according to AlphaFold3. pIDDT, per-residue measure of local confidence; pTM, predicted template modelling score.
