Fig. 3

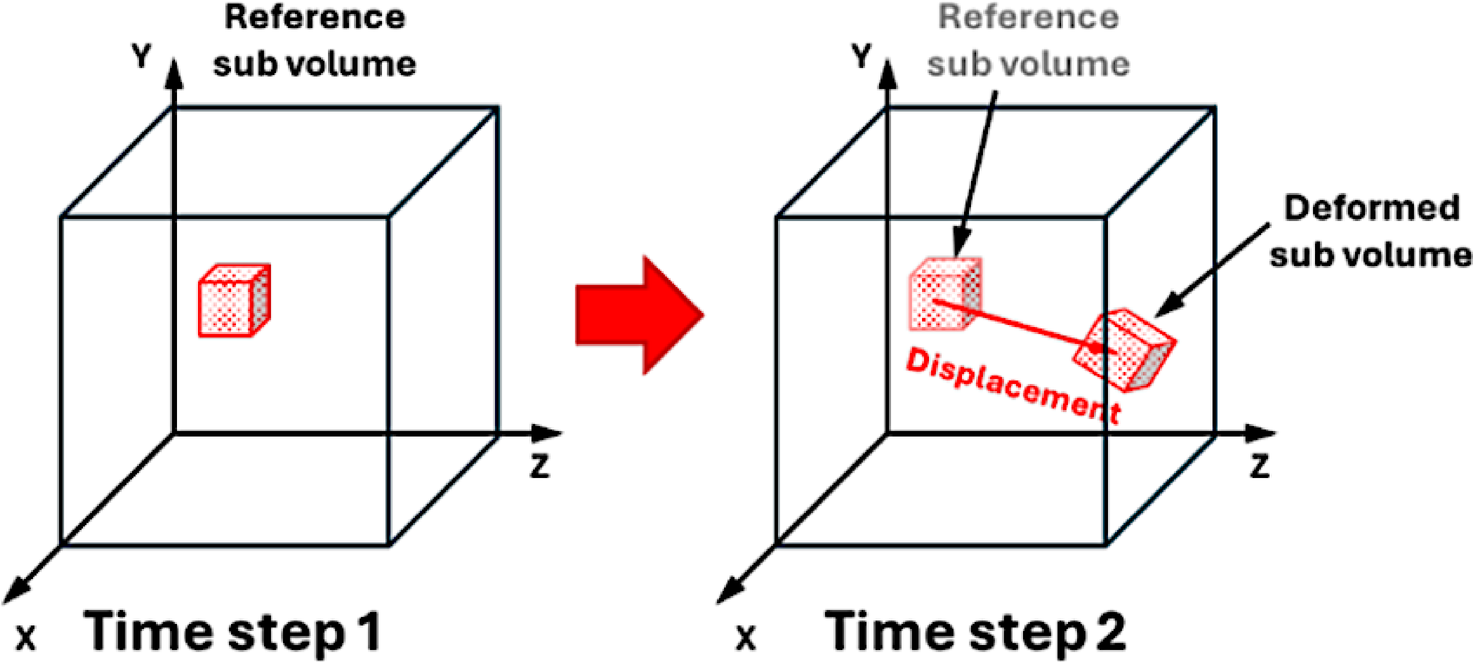

Digital Volume Correlation (DVC) analysis is a technique used to measure and quantify the internal deformation of materials by comparing two volumetric datasets obtained at different states or time steps. A sub-volume from a reference dataset at Time Step 1 is tracked and matched to its corresponding deformed position in a subsequent dataset at Time Step 2, yielding displacement and strain fields. The approach relies on correlating grayscale intensity patterns within sub-volumes across 3D datasets. When applied to X-ray Computed Tomography (XCT) data of the Marathon Midsole sample, DVC allows non-destructive, high-resolution characterization of internal material deformation and strain evolution during mechanical loading (modified after Chawla and Ganju3.
