Fig. 6
From: A dual doubly-fed generator system supplied by a five-phase voltage inverter

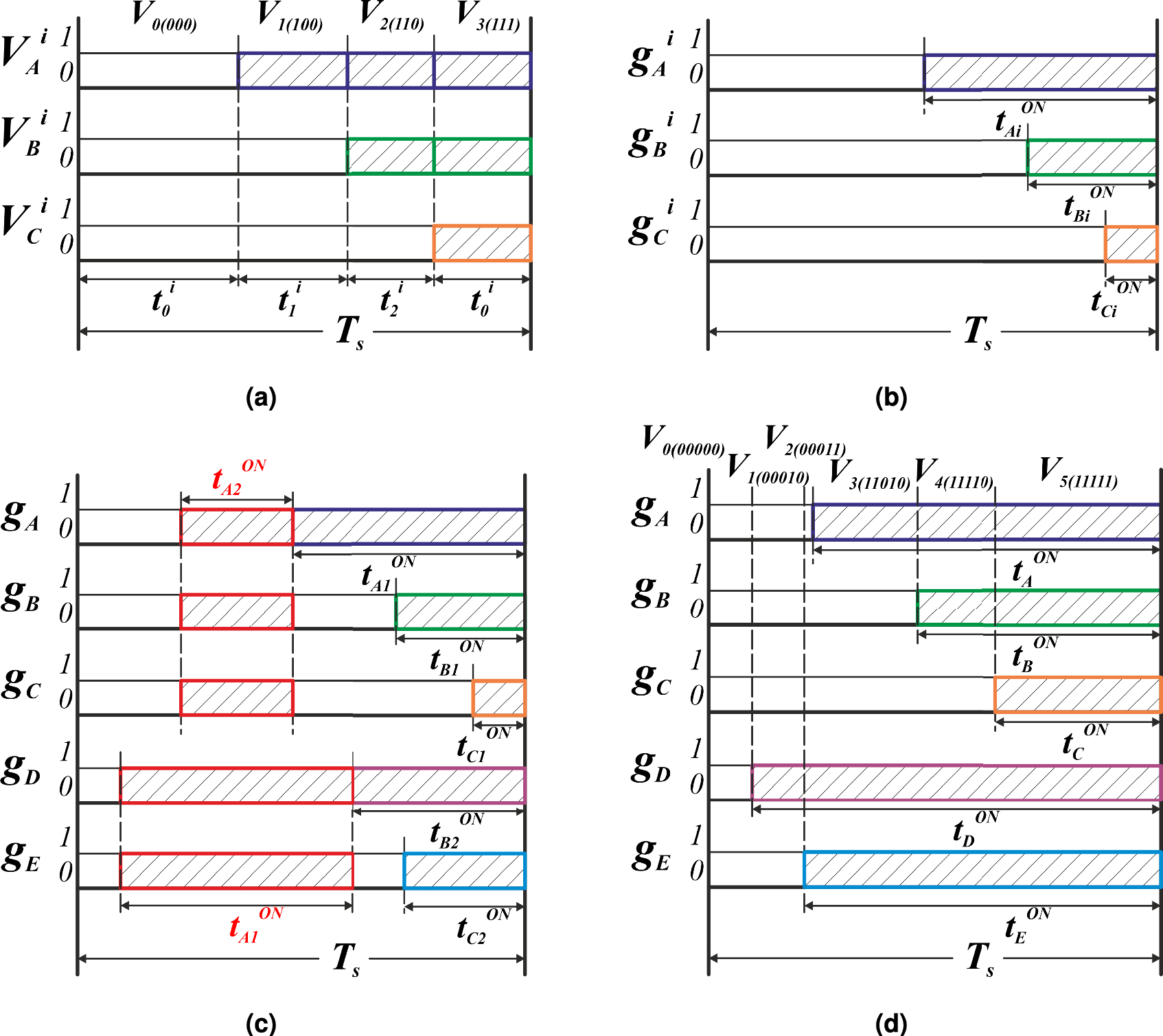

Duration and corresponding transistor states: (a) for two three-phase system before grouping; (b) after “ON” times grouping; (c) transition from two three-phase to five-phase systems; (d) final sequence after transition to 5-phase configuration.
