Fig. 6
From: Design of low power energy efficient sigma-delta ADC for biomedical IoT applications

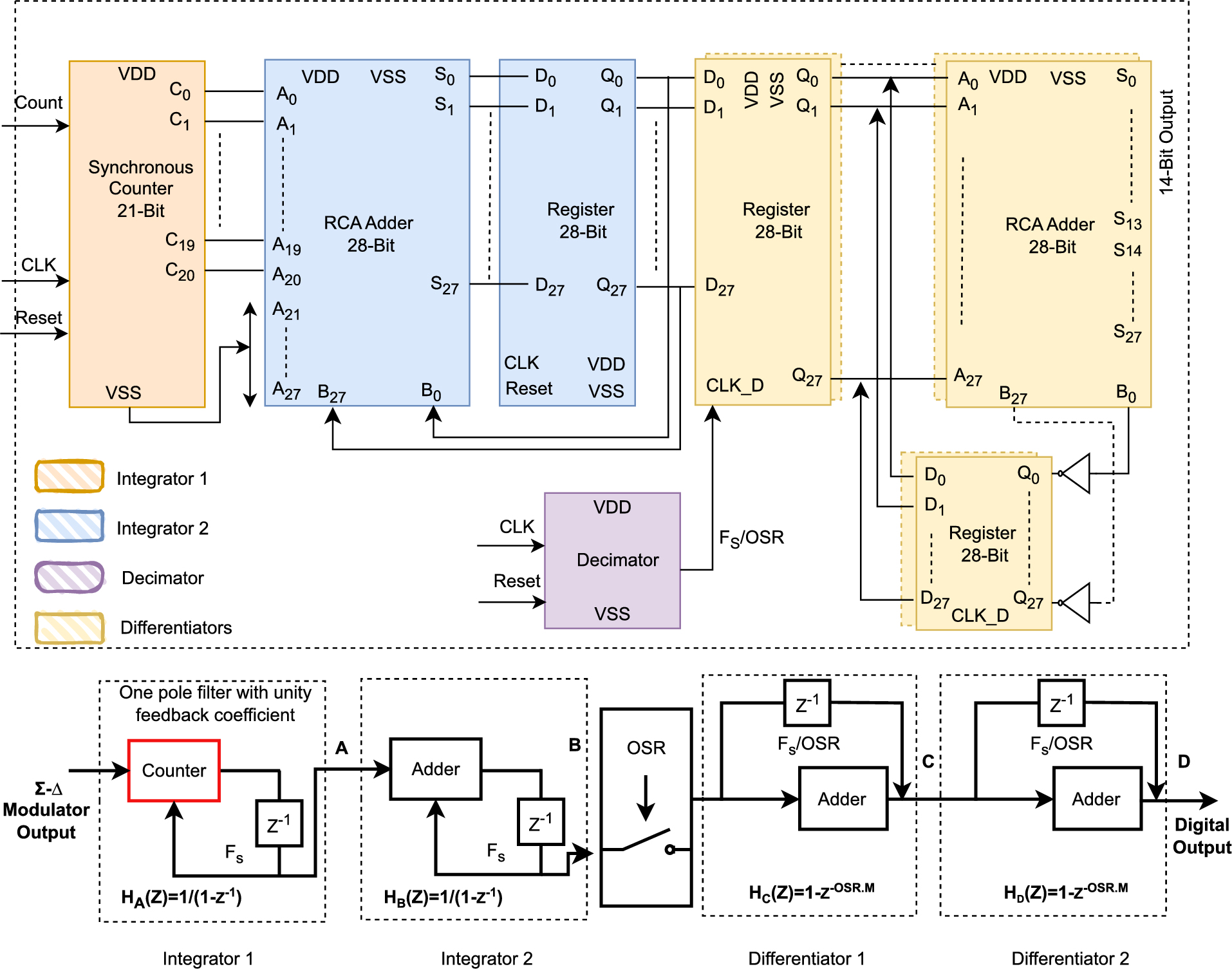

Block diagram of proposed CIC filter architecture integrated with a \(\Sigma\)-\(\Delta\) modulator output. The filter includes two integrator stages followed by decimation with an Oversampling Ratio (OSR) and two differentiator stages, providing efficient sample rate conversion and noise shaping.
