Fig. 16

From: High-precision multiple defect detection and localization in composite laminates using integrated piezoelectric sensing, regression and neural networks methods

Fig. 16

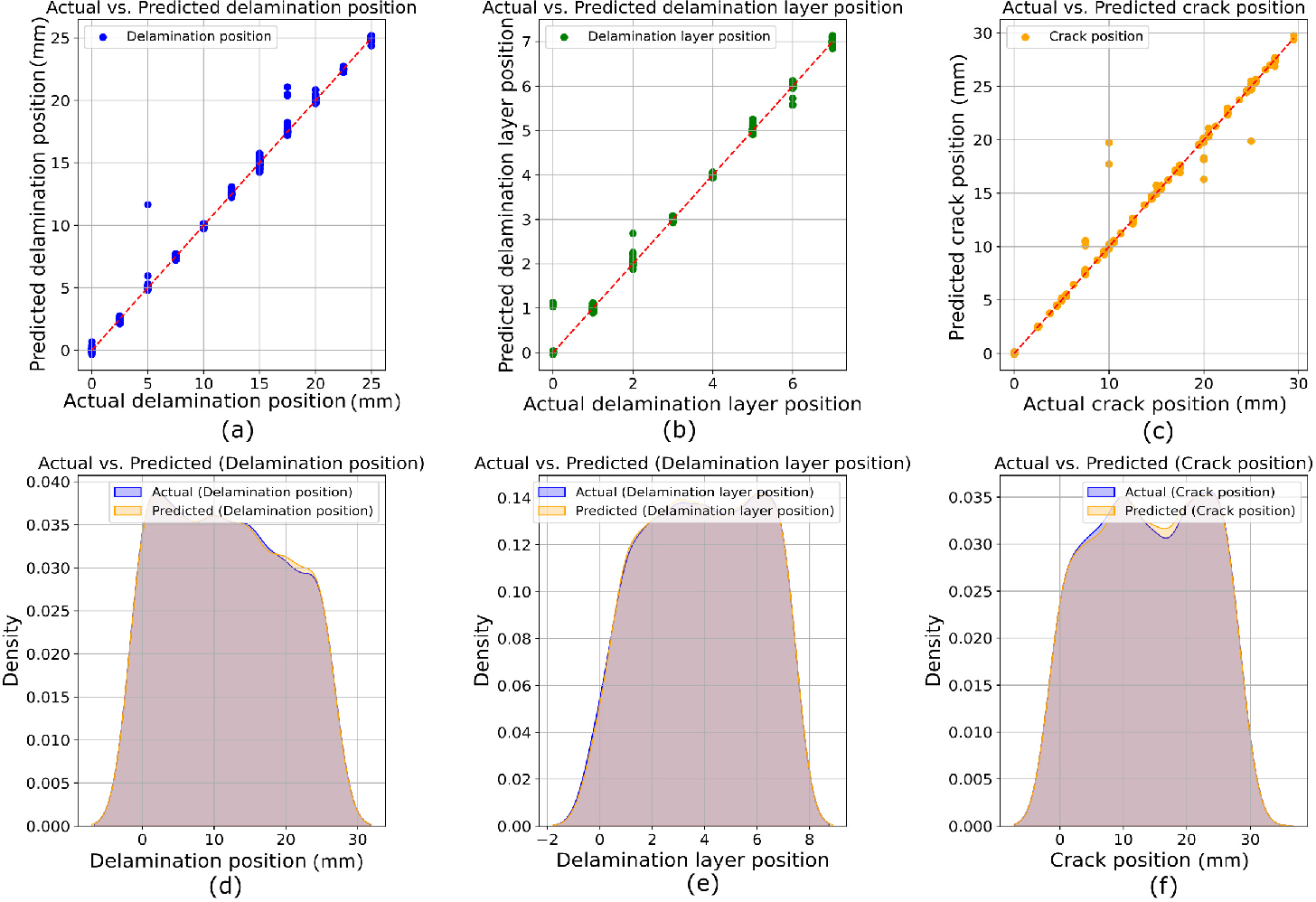

Scatter plot of Actual and Prediction for three defect types positions: (a) Delamination positions (mm), (b) delamination layer positions, (c) crack positions (mm) and distribution plot of Actual and Prediction for three defect types positions: (d) delamination positions (mm), (e) delamination layer positions, (f) crack positions (mm) for LGBM.
