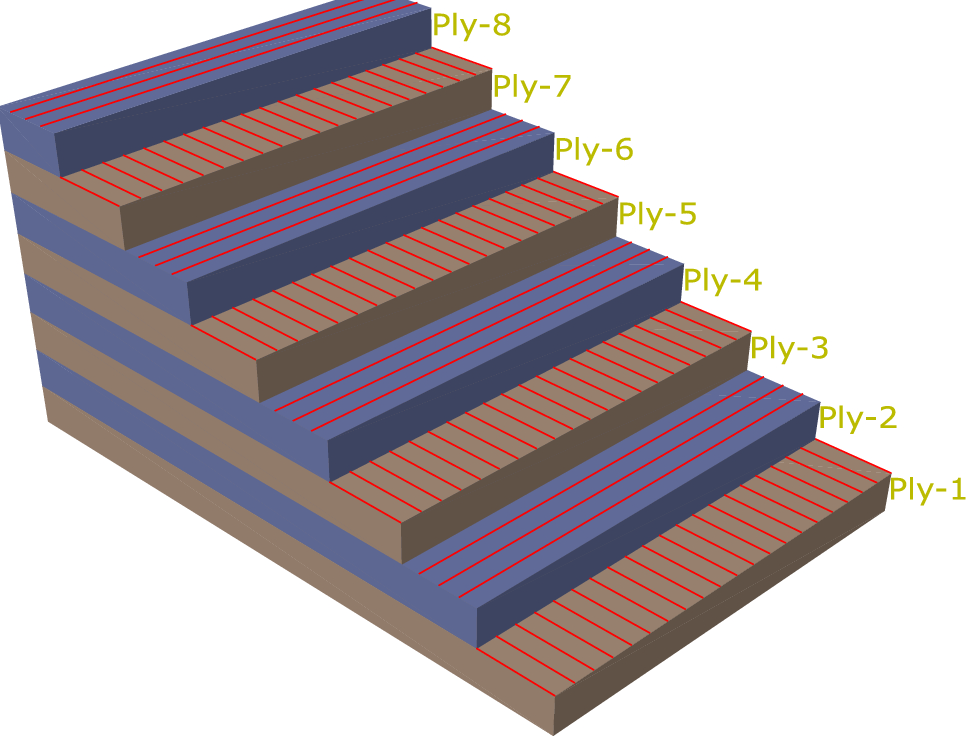

Fig. 3

Schematic of 0-90 angle of placing the layers in the laminated composite created in Abaqus/CAE 2022 (Dassault Systémes Simulia Corp., https://www.3ds.com/products-services/simulia/products/abaqus/) and refined using Inkscape 1.3 (https://inkscape.org/).
