Fig. 4

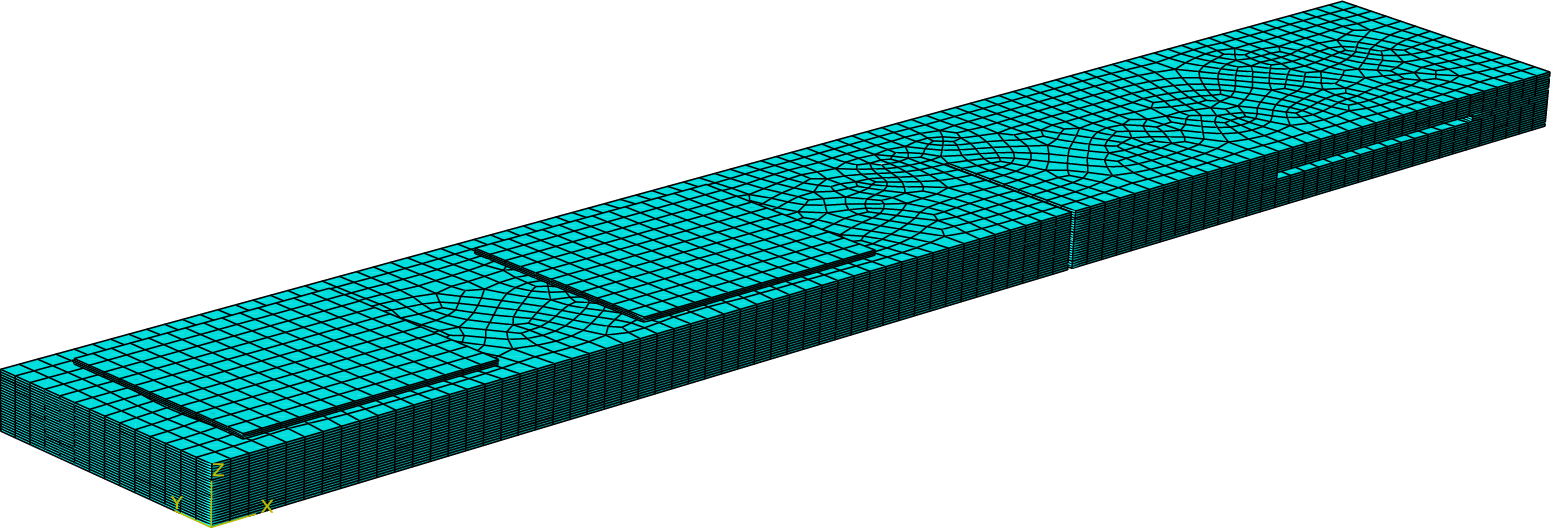

Schematic of the mesh applied to the laminated composite created in Abaqus/CAE 2022 (Dassault Systémes Simulia Corp., https://www.3ds.com/products-services/simulia/products/abaqus/) and refined using Inkscape 1.3).
