From: Genetic isolation drives divergent insecticide resistance between coastal and western Kenya Anopheles funestus populations

Fig. 2

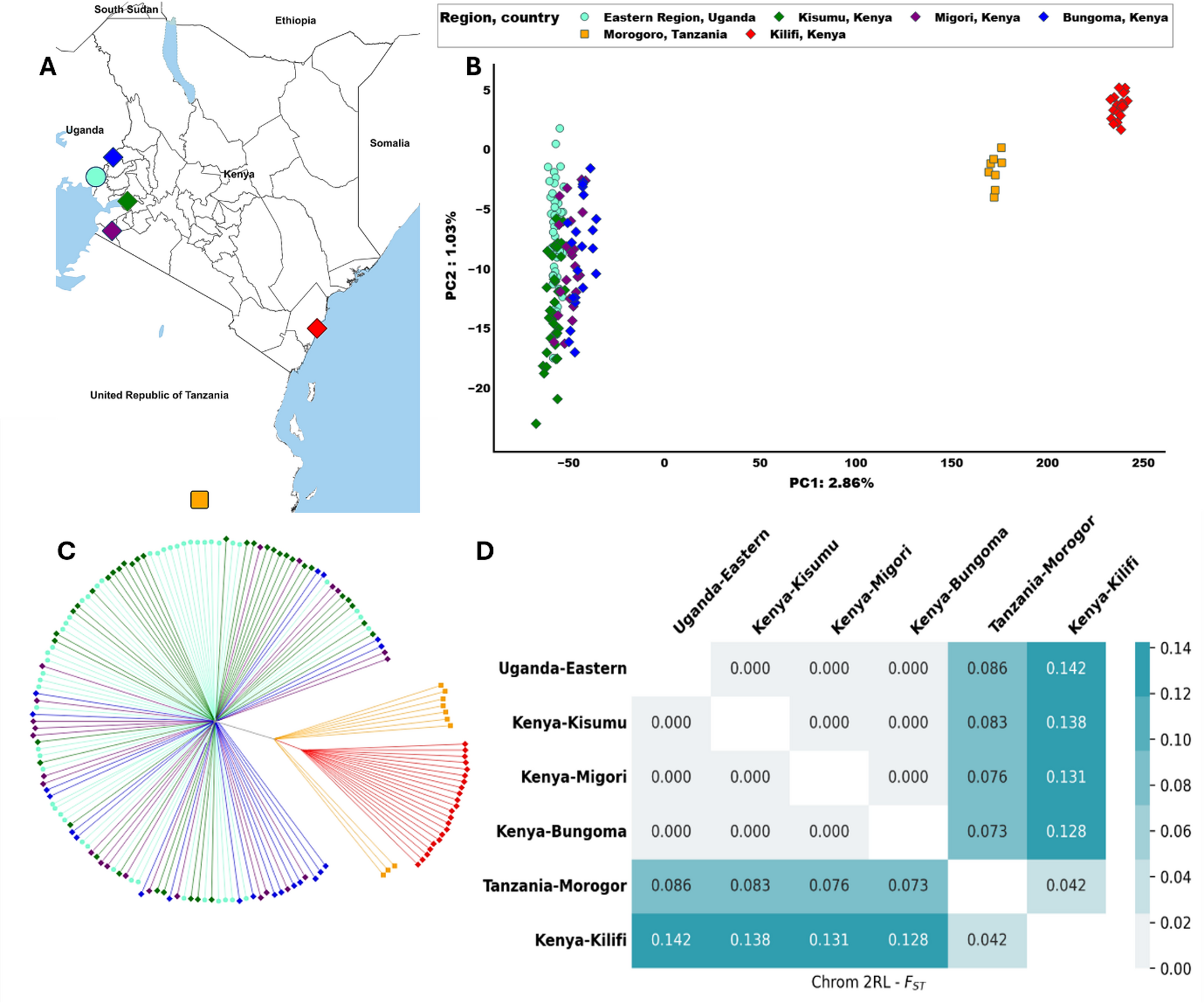

(A) Map showing the sample collection location. (B) Principal component analysis showing the genetic structure of An. funestus s.s. population. (C) Neighbor joining tree comparing An. funestus s.s. population. The samples were colored by population cohort. (D) Pairwise FST between An. funestus s.s. population from Bungoma, Migori, Kisumu and Kilifi regions in Kenya, Eastern Uganda region and Morogoro in Tanzania.
