Fig. 4

From: Contribution of channel geometry adjustments to stage variance based on rating-curves in the main stream of the Lancang–Mekong river

Fig. 4

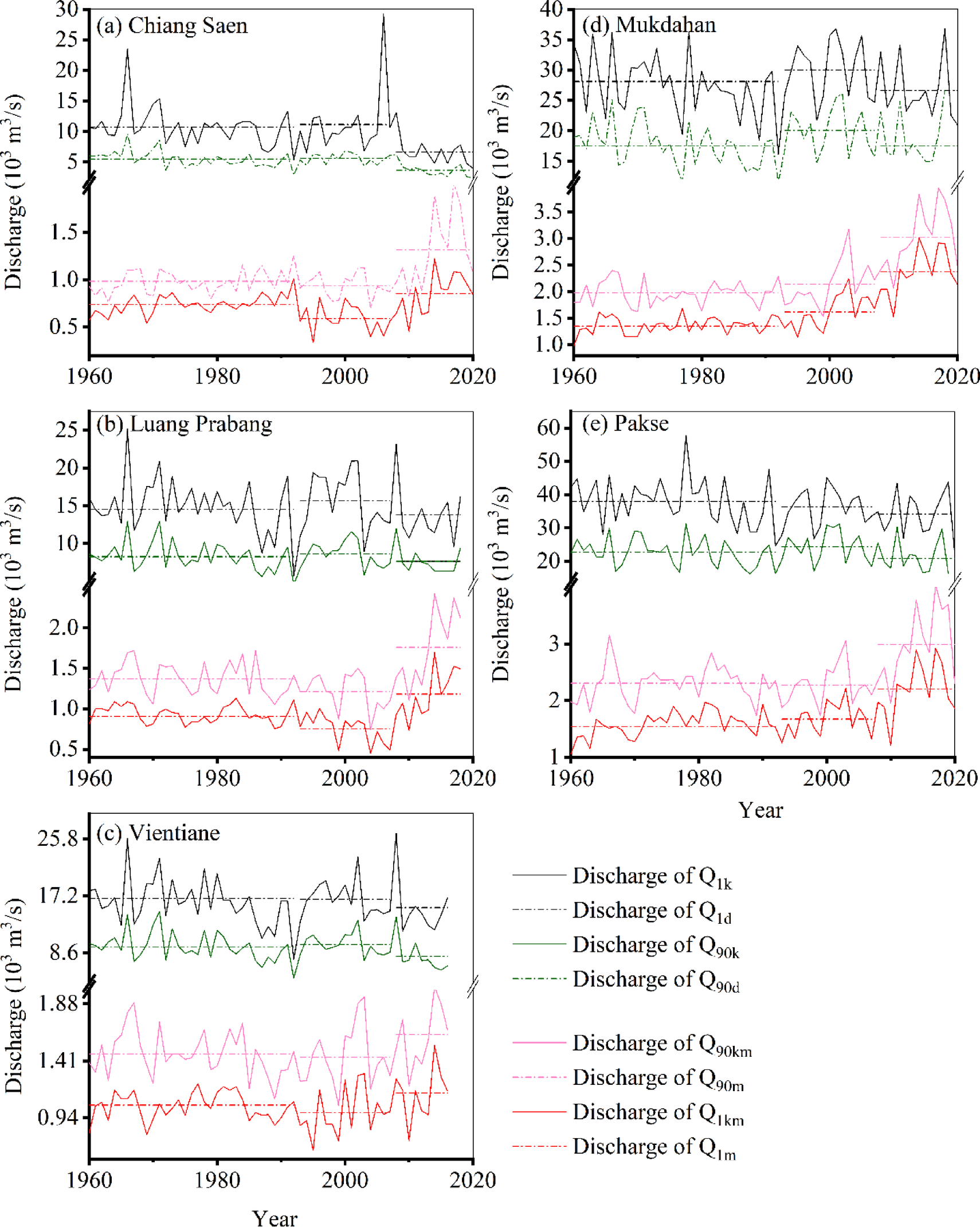

Extreme flow regime under high-flow and low-flow conditions from 19,602,020 at hydrological stations: Chiang Saen (a), Luang Prabang (b), Vientiane (c), Mukdahan (d) and Pakse (e). The dashed lines are the mean discharges (\({\text{Q}}_{1\text{d}}\), \({\text{Q}}_{90\text{d}}\), \({\text{Q}}_{1\text{m}}\) and \({\text{Q}}_{90\text{m}}\)) for Periods I, II, and III.
