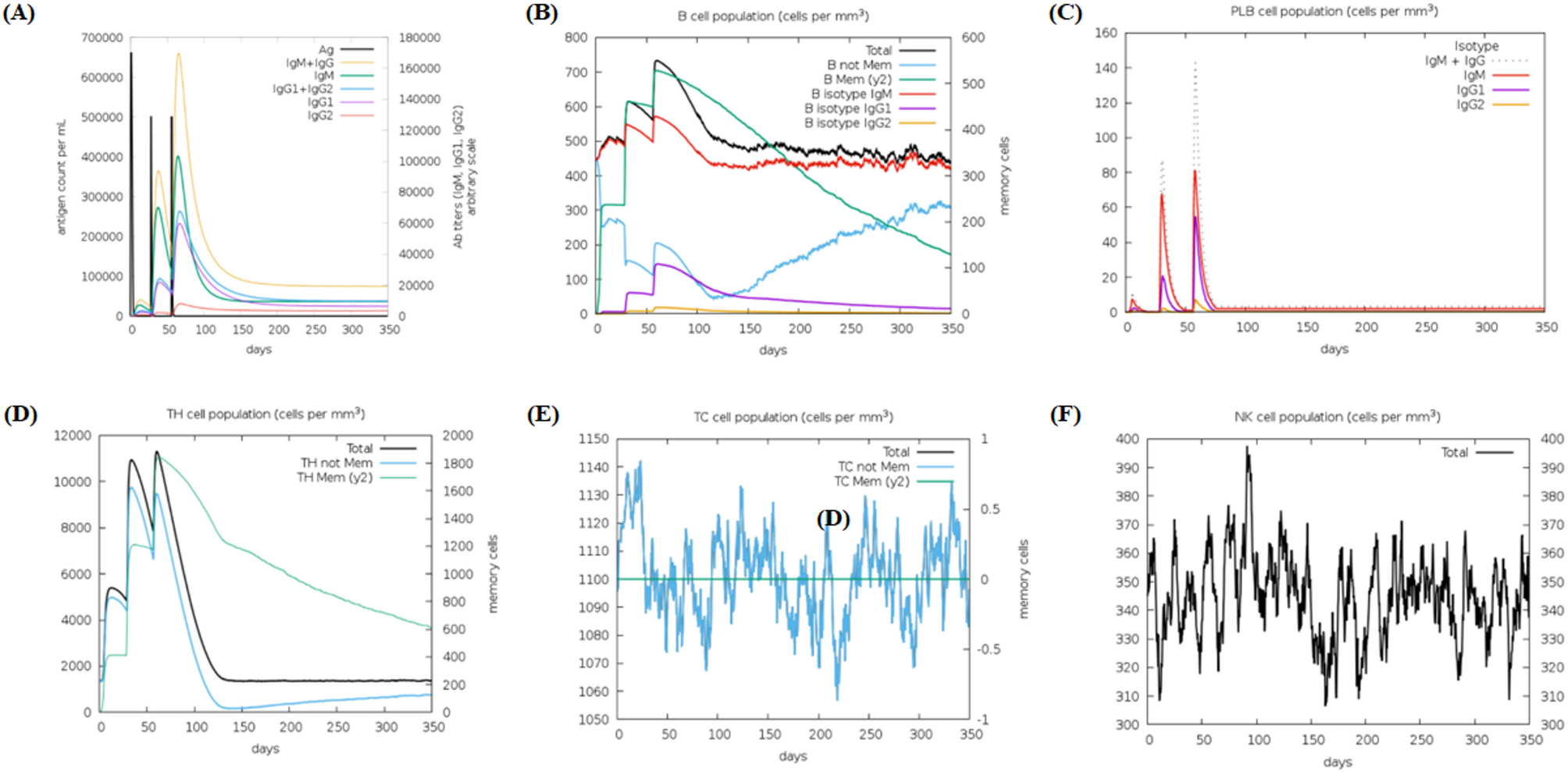

Immune simulation responses of the proposed multi-epitope-based vaccine (MEBV) generated from the C-ImmSim server. (A) Immunoglobulin responses to antigen exposure. (B) B lymphocyte population. (C) Plasma B lymphocyte count sub-divided per isotype. (D) CD4 T-helper lymphocyte count showing the total and memory counts. (E) CD8 T-cytotoxic lymphocyte count showing the total and memory counts. (F) Total count of natural killer cells (NK cells).
