Fig. 2
From: Influence of deposition conditions on ALD based Ru passivation for Cu-Cu hybrid bonding

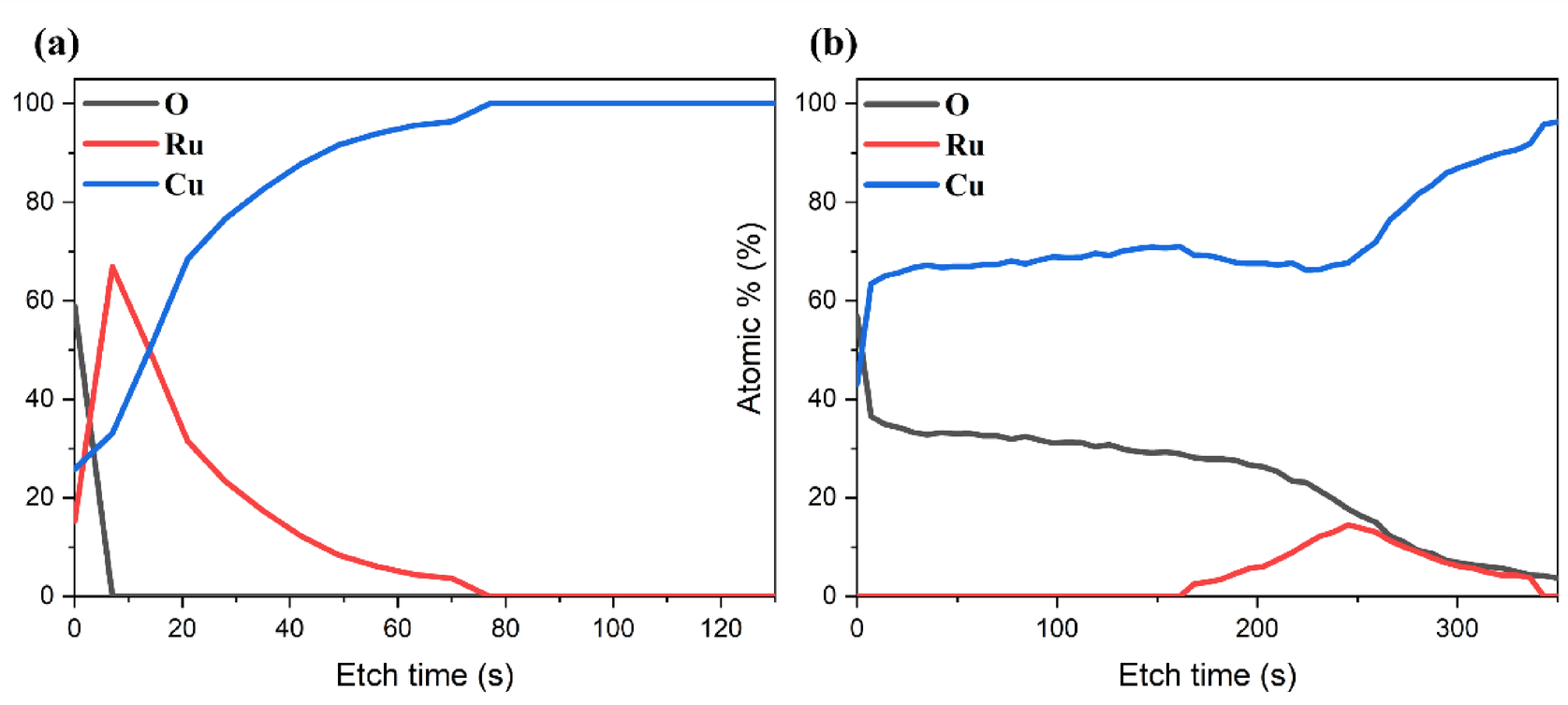

Atomic concentration profiles of ruthenium passivation sample deposited by PEALD at 350 °C, analyzed using XPS depth profiling. (a) Before annealing, (b) After annealing at 200℃, 1 h.
