Fig. 3
From: Influence of deposition conditions on ALD based Ru passivation for Cu-Cu hybrid bonding

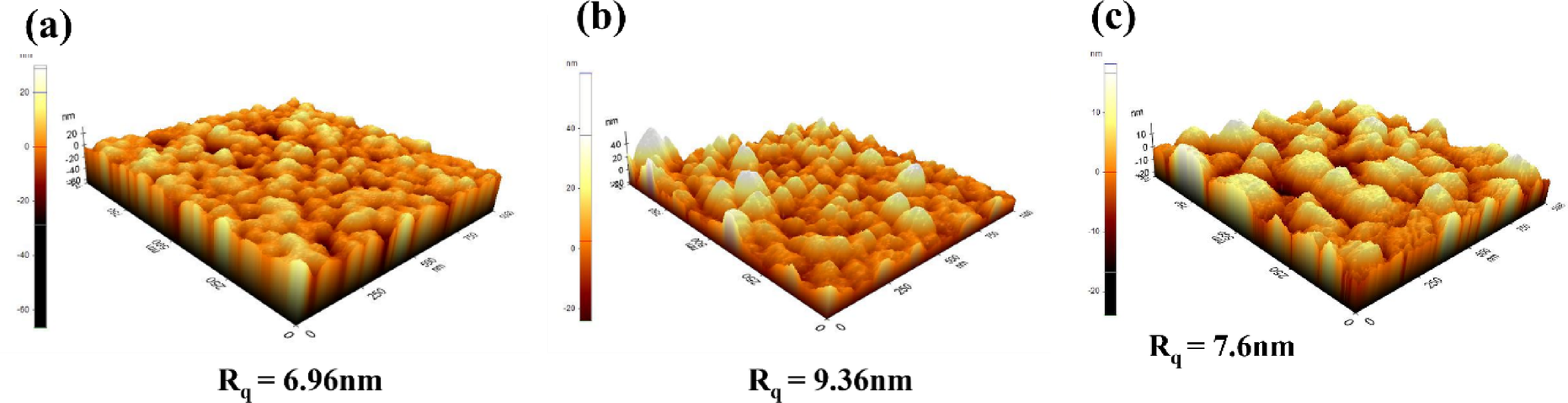

Comparison of Surface Roughness for 10 nm Ru passivation layers deposited by different methods on Cu (a) PEALD at 350 °C, (b) Sputtering, and (c) Bare Cu sample.
