Fig. 7

From: Eco-friendly bricks and tuff tiles from agricultural and industrial waste: advancing the United Nations (UN) sustainable development goals

Fig. 7

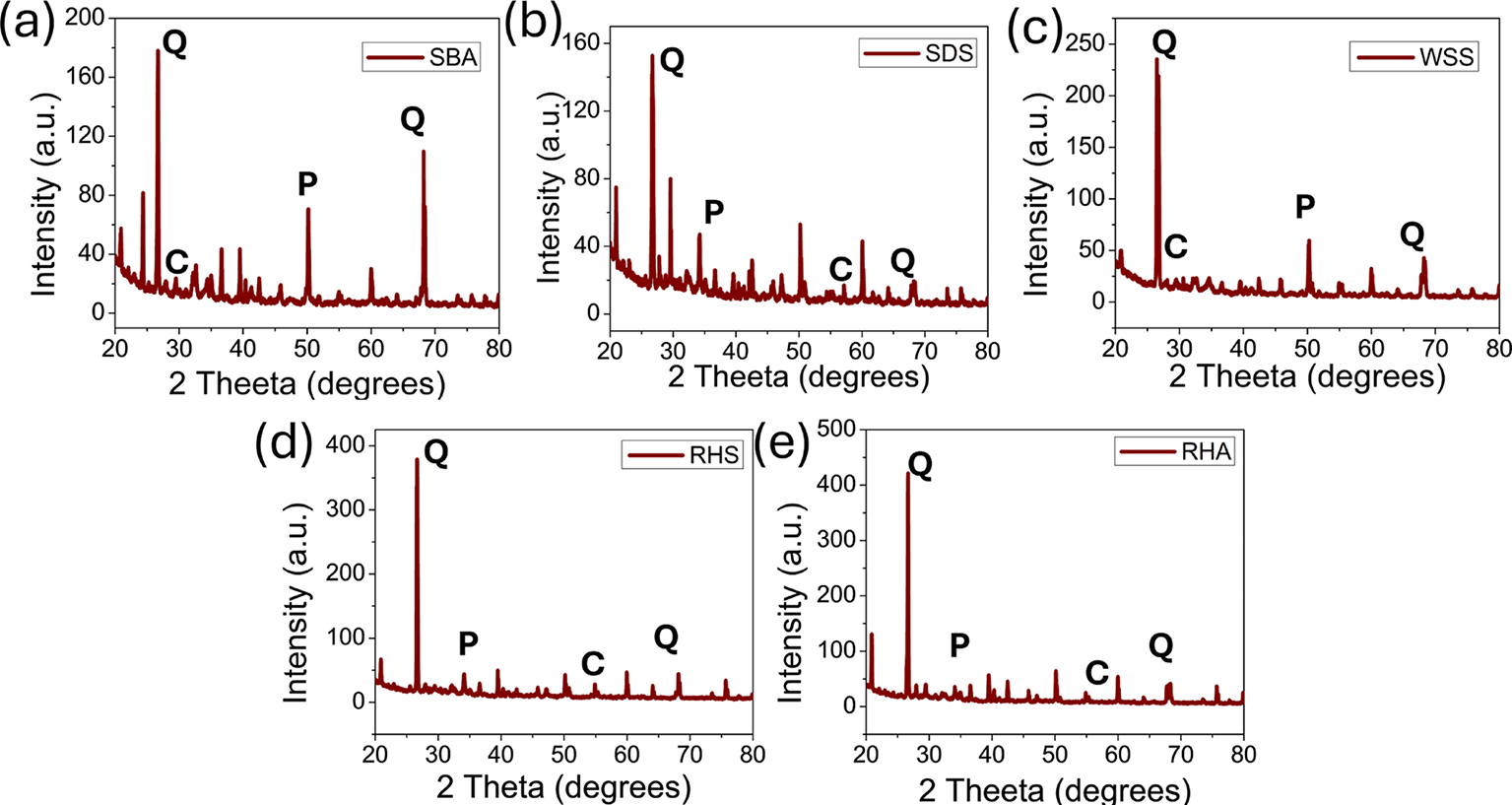

(a–e): X-ray Diffraction (XRD) patterns of bricks and tuff tiles prepared with organic (SBA, SDS, WSS, RHS, and RHA) agricultural and industrial byproduct additives, highlighting the presence of crystalline phases such as portlandite (P), calcite (C), and quartz (Q), as well as indications of amorphous contributions from certain materials.
