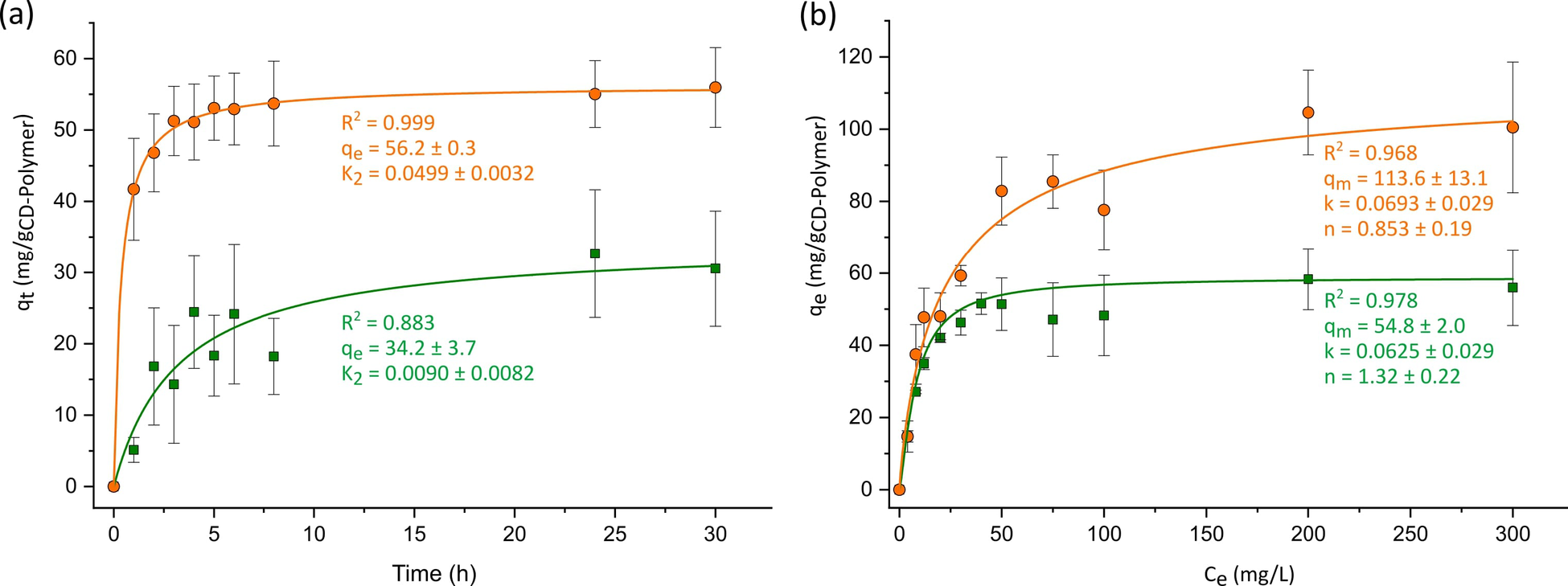

Fig. 7
From: Adsorptive removal of pimavanserin from water using β-cyclodextrin polymer coated PVDF nanofibers
(a) Adsorption kinetics of PMV onto PVDF nanofibers coated with β-CD-Acr polymer (CD-Acr-PVDF) (orange) and β-CD-Acr polymer alone (green); Experimental data were fitted using pseudo-second order kinetic model (solid lines). (b) Adsorption equilibrium isotherms of PMV onto CD-Acr-PVDF NFs (orange), and β-CD-Acr polymer (green) at 25 °C and 18-h equilibration time. Experimental data were fitted using the Sips isotherm model (solid lines). Data points are an average from 3 samples (± standard deviation). This graph was generated using Origin software.
