Fig. 8
From: Adsorptive removal of pimavanserin from water using β-cyclodextrin polymer coated PVDF nanofibers

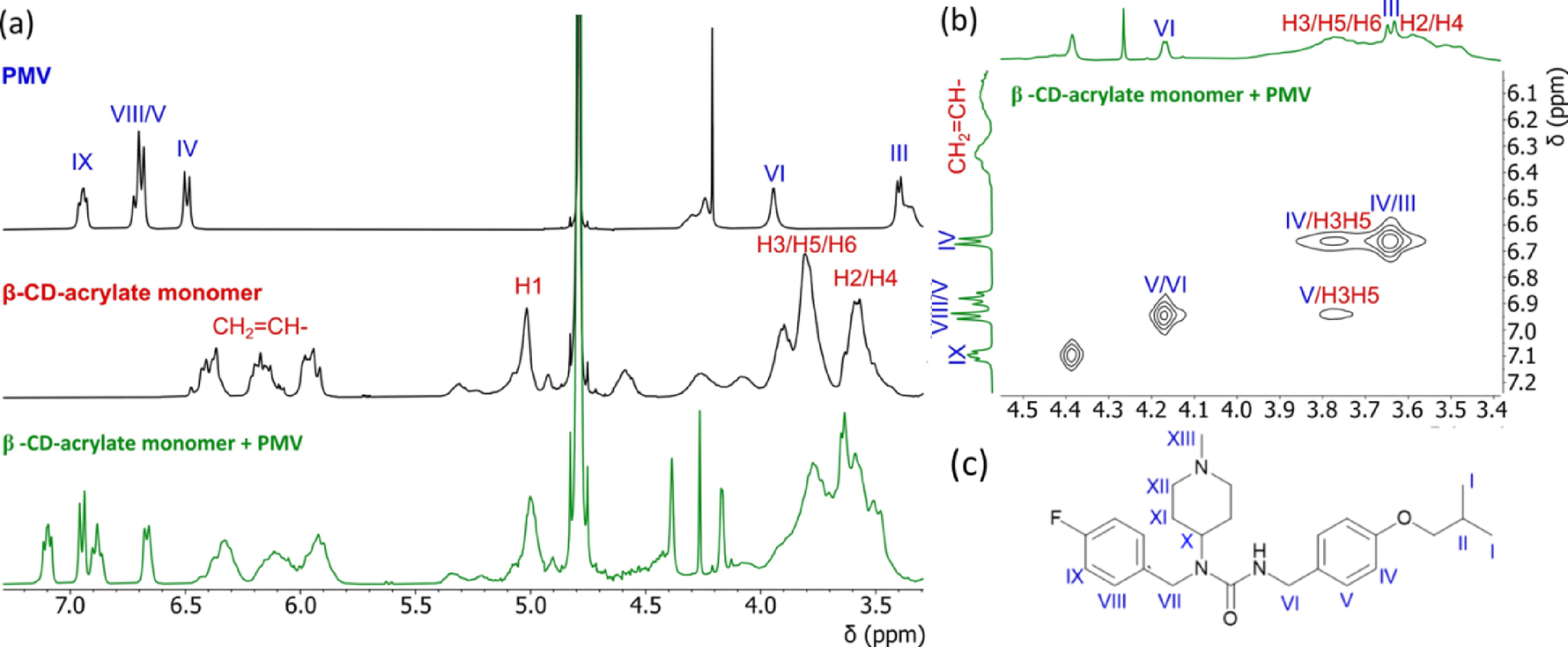

(a) 1H NMR spectra of PMV (top, black), β-CD-acrylate monomer (middle, red), and the inclusion complex of PMV with β-CD-acrylate monomer (bottom, green). (b) 2D ROESY spectrum of the inclusion complex. (c) Molecular structure of PMV, with labeled protons corresponding to their NMR assignments. Assignment of PMV in 1H NMR and ROESY was done in accordance with11.
