Fig. 6

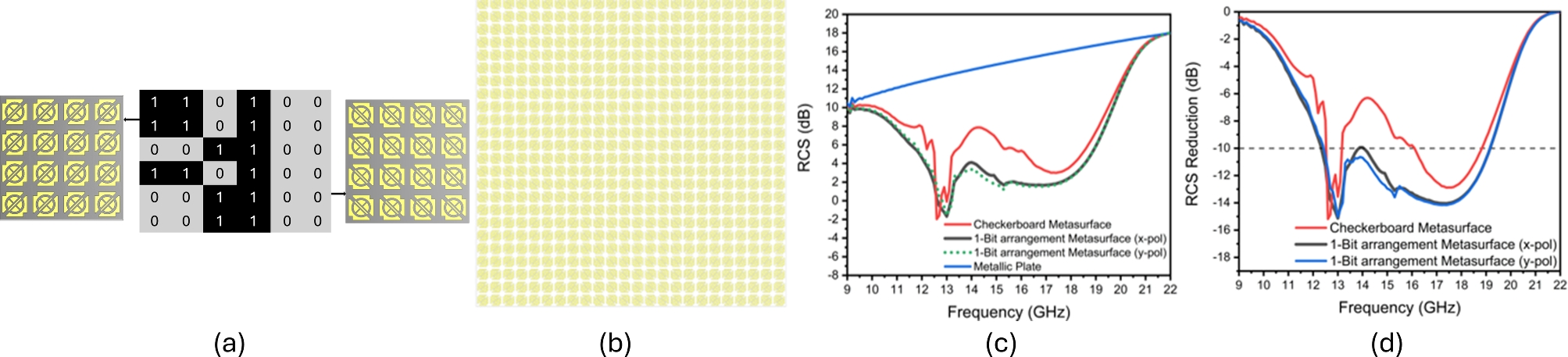

(a) Schematic diagram showing the optimized arrangement of unit cells in the 1-bit metasurface. (b) Layout of the optimized 1-bit metasurface design. (c) x-polarized and y-polarized normal incidence plane waves simulated RCS comparison between the checkerboard and optimized 1-bit metasurface designs. (d) Simulated x-polarized and y-polarized normal incidence plane waves RCS reduction results achieved by the checkerboard and optimized 1-bit metasurface designs.
