Fig. 2

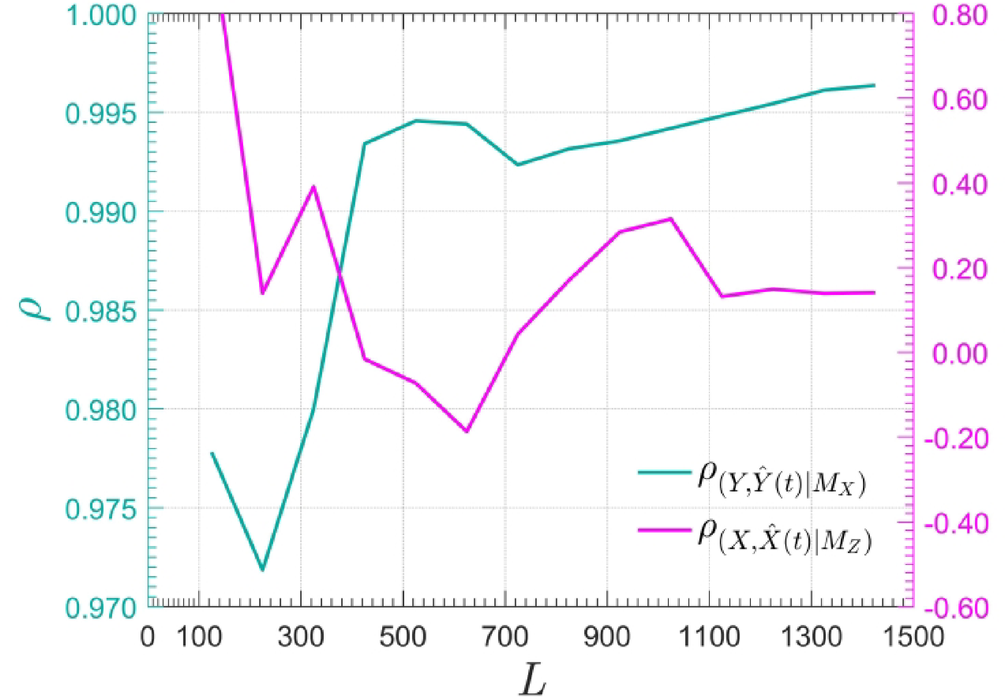

Use of the convergent cross mapping method to detect causality between variables in the Lorenz system (the green curve is the causal strength of Y driving X, corresponding to the left ordinate; the pink curve is the causal strength of X driving Z, corresponding to the right ordinate).
