Introduction

The development of Intelligent Transportation Systems (ITSs) has been largely driven by factors such as increasing traffic congestion, rising road accidents, and the growing demand for internet connectivity to support various applications. As a result, Vehicular Ad-hoc Networks (VANETs) have emerged as a key solution for enabling these applications1. VANETs are a specialized subset of Mobile Ad-hoc Networks (MANETs) and exhibit unique characteristics that distinguish them from conventional MANETs. These differences primarily arise from the high mobility of vehicles, fluctuating vehicle density, and the fact that power consumption is not a major constraint in vehicles. VANETs have garnered significant research interest, as they facilitate a wide range of internet-based services for vehicles through fixed Road Side Units (RSUs). These services include both safety-critical applications, such as collision prevention and real-time traffic monitoring, as well as non-safety applications like weather updates and internet access. To ensure seamless communication between vehicles and infrastructure, several protocols and standards have been established. Key examples include Dedicated Short Range Communication (DSRC), IEEE 802.11p, and the IEEE 1609 standard, all of which play a crucial role in ensuring reliable and efficient communication within VANETs2. To further enhance communication capabilities in vehicular networks, the Institute of Electrical and Electronics Engineers (IEEE) introduced the Wireless Access in Vehicular Environments (WAVE) standard, which is built upon DSRC technology. WAVE extends the IEEE 802.11 standard, incorporating the 802.11p protocol along with the IEEE 1609 standard, to specifically address the unique requirements and challenges of vehicular communication3. Beyond improving road safety through collision avoidance and real-time traffic control, VANETs also facilitate non-safety functions such as providing internet access and environmental data to users. Communication within VANETs can take three forms: Vehicle-to-Infrastructure (V2I), Vehicle-to-Vehicle (V2V), and Hybrid Vehicle (HV) communication. For effective data exchange, an On-Board Units (OBUs), sensors or radio interfaces are installed on vehicles that enable interaction with RSUs or other vehicles. HV communication integrates both V2I and V2V communications, allowing vehicles to leverage multiple communication methods simultaneously4. The architecture of the vehicular network is shown in Fig. 1.

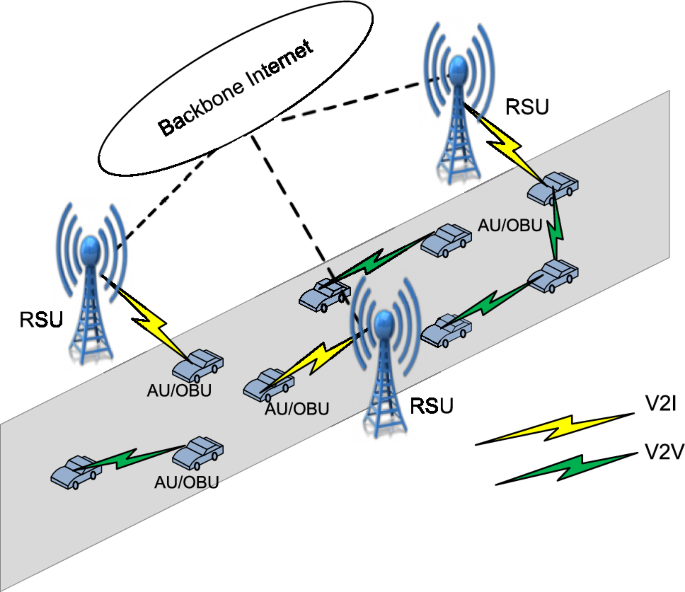

Fig. 1
figure 1

The VANET Architecture.

The rapid movement of vehicles in VANETs results in the formation of a dynamically changing network topology and short communication times for both V2V and V2I interactions. To tackle the challenge of frequent network partitions caused by this high mobility, Vehicular Delay-Tolerant Networks (VDTNs) leverage the characteristics of Delay-Tolerant Networks (DTNs). VDTNs incorporate the key features and strategies used in DTNs to address issues related to intermittent connectivity and delays in message delivery, ensuring robust communication in VANETs. In VDTNs5, several RSUs are installed along the highways, connecting vehicles to the internet. The high cost of deploying RSUs makes it difficult to achieve full coverage across the entire road network. Consequently, there are gaps between adjacent RSUs where no coverage is available, referred to as uncovered areas. The duration for which a vehicle stays in this uncovered region is referred to as the outage time. If the connection between an SV and a DV is interrupted while in an uncovered region, Relay Vehicles (RVs) serve a vital function by forwarding messages from the SV to the DV. Numerous algorithms and methods have been put forth to select appropriate RVs for efficient data dissemination within the uncovered area, with the aim of reducing outage time in VANETs. Furthermore, in scenarios where there are multiple SVs and DVs, clustering becomes essential for maintaining connectivity among vehicles in VDTNs. Clustering helps to organize vehicles into groups, facilitating effective communication and coordination within the network. In VANETs, clustering6is employed to partition the extensive network into smaller groups of mobile vehicles. This approach aims to enhance routing efficiency, improve information dissemination, and facilitate data gathering within the network.

By organizing vehicles into clusters, communication and coordination among vehicles can be more effectively managed. Clustering allows for localized decision-making, optimized resource allocation, and efficient data exchange within the smaller groups, resulting in improved overall network effectiveness with respect to routing, information dissemination, and data gathering. In VANETs, the selection of CHs is accomplished through various clustering techniques or algorithms. In cluster-based VANETs, vehicles are first organized into clusters, and then the CHs are chosen using a beaconing process. Clustering is important in VANETs due to factors such as reduced mobility impact, lower vehicle congestion, higher reliability, greater stability, and the ability to facilitate cooperative communication. In this paper, an Enhanced Clustering approach for Efficient Relay Vehicle (ECERV) selection scheme is proposed for VANETs. The scheme involves forming clusters and selecting CHs based on their position and stability. RSUs form clusters and select a CH based on their coverage range, the remaining connection duration and Cluster Head Coefficient (\(CH_{coefficient}\)). After identifying the requested or missing data, the RSU determines the DV, and the CHs transmit the required data to the corresponding DVs. The proposed ECERV selection scheme aims to optimize RV selection in VANETs, leveraging the benefits of clustering to enhance data dissemination and improve overall communication efficiency within the network. This paper makes notable contributions, which can be summed up as follows:

  • This paper proposes a novel strategy for CHs selection in clusters by combining two different strategies. This new approach aims to enhance the efficiency and effectiveness of CH selection in VANETs

  • This paper presents an enhanced clustering strategy for efficient RV selection, tailored for vehicular communication environments. In this framework, the CHs linked to their corresponding RSUs are designated to serve as RVs.

  • The proposed ECERV protocol integrates two complementary CH selection strategies: (i) Centroid-Proximity, which minimizes intra-cluster distances through the Closeness Factor (CF), and (ii) Stability-based, which maximizes cluster lifetime through the Weighted Stabilization Factor (\(\beta _{WSF}\)). These are combined via a tunable parameter, \(\epsilon\), in the formula \(CH_{coefficient} = \epsilon \cdot CF_j^m + (1-\epsilon ) \cdot \beta _{WSF_j}\). Unlike the comparative approaches, which rely on a single criterion, The proposed ECERV selection approach uniquely fuses spatial and temporal metrics and further resolves ties using Vehicle Degree and Available Bandwidth.

  • The proposed ECERV selection scheme demonstrates superior performance over existing approaches by attaining higher throughput and packet delivery ratio, along with reduced delay and significant enhancement in requested data completeness. Furthermore, it minimizes Control Overhead and Energy Consumption, while extending the cluster stability period compared to baseline protocols.

The rest of the paper is structured as follows: Section II discusses the related work. Section III explains the network architecture and system model utilized in the proposed approach. Section IV outlines the proposed methodology. Section V assesses the performance of the suggested strategy and compares it to other established methods. Section VI brings this effort to a close.

Related work

This section reviews related research efforts that aim to enhance data transmission and accuracy in cluster-based VANETs, as well as optimizing RV selection in VANETs. Previously, the capacity of path links was a key factor in selecting an RV. A new relaying scheme has been suggested, which takes into account both the path link capacity and the vehicle’s location. According to this scheme7, vehicles with higher link capacity are preferred as RVs. However, it has been observed that this selection method performs poorly when it comes to transmitting missing content to the DV. To address this limitation, a data transmission method utilizing clustering is proposed. In this approach, a CH is chosen as the RV. The CH then takes responsibility for transmitting data to the DV if the DV is located outside the coverage area or is unreachable by other means. This clustering-based technique8 aims to improve the efficiency of content delivery to the DV even in challenging situations. The clustering-based data transmission scheme has certain drawbacks. Firstly, it lacks a mechanism to transmit missing data effectively. Secondly, the primary focus is on selecting the CH, which might overshadow other critical aspects of the transmission process. To address these issues, a different approach is proposed in reference9. The Adaptive Carry Store Forward (ACSF) scheme is specifically designed for two-hop Vehicular Delay-Tolerant Networks (VDTNs). In this approach, a passing vehicle is selected as the RV to temporarily store and forward missing data when the DV comes within range of a RSU. The selection of the RV is based on minimizing the outage or run-out time for the DV. However, despite these enhancements, further reductions in outage time are necessary to optimize data transmission efficiency. In addition to the previous schemes, reference10 proposes a cooperative relay vehicle selection scheme tailored for LTE-A (Long-Term Evolution Advanced) networks. This approach considers both network performance and outage reduction. Efficient utilization of the relay terminals helps minimizing outage time significantly. This cooperative approach aims to optimize the network’s performance and ensure more reliable data transmission between the base station and the eNodeB (Evolved Node B), leading to improved overall communication efficiency in LTE-A networks. In reference11, the outage time is effectively minimized through the implementation of a relaying scheme considering many-hop-store and carry-forward approach. An opportunistic relay node selection approach is introduced in this context. To identify potential relay candidates, the scheme leverages the variability of the rapidly changing fading channel, which exists due to variations in signal strength among multiple users. RSUs play a critical role in this process by optimally rate-adapting their transmission of packets to the vehicles within their coverage range. When RSUs broadcast packets, nearby relay candidates are assessed based on their ability to successfully decode these packets. The RSU then selects one of the relay candidates in close proximity that demonstrates successful packet decoding capability. This selection process ensures that the chosen RV is well-suited to enhance data transmission, leading to a reduction in outage time and improved overall network performance.

In reference12, the Bivious RV selection scheme introduced a novel approach where both trailing and leading vehicles are utilized as RVs. Interestingly, in this scheme, it is the DVs that undertake the RV selection process instead of the RSUs. The concept of speed optimization is employed in this scheme to make RV selections. However, a disadvantage of this RV selection method is that DVs must wait until they arrive within the coverage area of the very next RSU, when a RV just moving behind finishes sending the data. This waiting time for DVs can result in delays and reduced efficiency in data transmission. As a result, further optimizations or improvements may be required to minimize waiting periods and enhance the overall performance of the Bivious RV scheme. In reference13, the authors of the paper propose an algorithm for selection of hybrid RV that combines two strategies to select two RVs. The first strategy involves selecting the vehicle nearest to the SV as the RV for the next hop in the data transmission process. The second strategy involves selecting the vehicle closest to the DV as the RV for disseminating packets. However, a disadvantage pointed out in the paper is the selection of two RVs. This could potentially introduce complexities and overhead in the system, as managing and coordinating multiple RVs can be more challenging than a single RV selection approach. In references14 and15, the limitation of selecting only two RVs in the bivious scheme for VDTNs has been overcome. These papers propose two different approaches to address this issue. (1) Multiple RVs Selection Scheme: This scheme involves RSUs selecting multiple vehicles as RVs to ensure authentic content retrieval in an uncoverage region between two neighbouring RSUs. By having multiple RVs involved in the data transmission process, the likelihood of successful data delivery is increased, especially in areas with limited coverage. (2) Improved Bivious Scheme: This enhanced version of the bivious scheme optimizes the RV selection process to reduce outage time. RV selection is initiated when a vehicle cannot obtain all the requested content or data within the range of RSUs. The improved scheme employs various metrics to choose multiple RVs that can efficiently relay data, resulting in considerably reduced outage time. By leveraging these novel approaches, both14 and15 aim to enhance the reliability and efficiency of data transmission in VDTNs, particularly in challenging situations where traditional methods might fall short. The authors introduce a RV selection algorithm16 that focuses on optimizing throughput in vehicular networks. They also present a model for evaluating the transmission performance of RVs in these networks. To analyze the message dissemination performance of RVs, they apply the theory of network calculus, which provides a mathematical framework for understanding network behavior and performance. Additionally, the paper proposes several clustered-based schemes or algorithms. These schemes aim to enhance the stability and data dissemination efficiency in VANETs. By organizing vehicles into clusters, data can be more effectively distributed and relayed among the vehicles, leading to improved network stability and overall performance. By combining these approaches, the authors seek to contribute to the advancement of efficient and reliable communication in vehicular networks, thereby facilitating various applications and services that rely on seamless data transmission in VANETs.

In reference17, the authors propose an algorithm for CH selection in a vehicular network. The selection process involves grouping neighboring CVs and selecting two CHs for each group: the primary CH and the Backup CH. To achieve the stability of the cluster, the algorithm takes into consideration the knowledge of CVs’ behavior during the CH selection process. This means that certain factors related to the behavior of CVs are considered when deciding which vehicles will act as CH and Backup CH for the group. By carefully selecting CHs based on the knowledge of CV behavior, the algorithm aims to create stable clusters within the vehicular network. Stable clusters are essential for efficient communication, data dissemination, and coordination among vehicles in the network, which ultimately contributes to the overall performance and reliability of the vehicular communication system. The authors propose an efficient and reliable data transmission algorithm18 for vehicular networks, utilizing the concept of clustering. The clustering process is based on the evaluation of link reliability between vehicles. The algorithm’s primary objective is to improve data transmission efficiency and reliability by addressing the issue of unstable neighbouring CVs. To achieve this, the algorithm identifies and handles redundant or unstable CVs during the clustering process. By using link reliability as a basis for clustering and incorporating redundancy management, CH selection, and cluster maintenance, the proposed algorithm aims to achieve efficient and reliable data transmission in vehicular networks, ultimately enhancing the overall performance of the communication system. The following section of the paper focuses on the network architecture and the general model employed in the proposed work.

Network architecture and general model

There are various difficulties associated with VANETs, and one of these challenges involves the choice of the best RV among multiple vehicles for transmitting data either from SV to DV or delivering requested data to DV. This issue arises due to the extensive network coverage area and the high mobility of vehicles, which often results in frequent disconnections between vehicles and RSUs. The recurring disconnection hinders the transfer of requested data from RSUs to the DV, particularly when the DV is at a considerable distance or within the coverage range of another RSU. Additionally, the criteria used by RSUs to select the efficient RV among numerous vehicles pose another problem in this context.

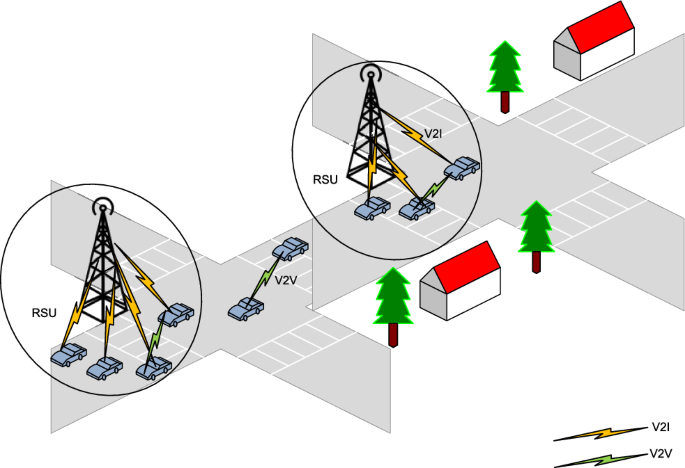

Fig. 2
figure 2

Architecture with System Model19.

In this system architecture it is assumed that RSUs are deployed in such a way so that every vehicle is in RSU’s range. A formation of cluster occurs when vehicles enter in RSU’s range and, thereafter, a CH is selected for individual clusters. The vehicles in a cluster are referred as Cluster Vehicles (CVs) which are allowed to communicate with their corresponding CHs. Further, only CHs are allowed to be in communication with RSUs. Figure 2, illustrates the network structure along with the overall system model.

The communication channel between the CH and the RSU is modeled as a Nakagami-m Fading Channel, where “\(h_1\)” represents the gain of channel. The probability distribution function (PDF) for this channel20, is given as:

$$\begin{aligned} f(h_1) = \frac{2m^m}{\Omega (d)^m \Gamma (m)} (h_1)^{2m-1} \exp \left( -\frac{m}{\Omega (d)} (h_1)^2 \right) \end{aligned}$$
(1)

where, the parameter m in the Nakagami fading channel represents the Nakagami fading parameter, and its value should be greater than 1/2 and \(\Gamma (m)\) denotes the Gamma function, as indicated in book21. \(\Omega (d)\) denotes the power loss, which can be determined using the following equation22.

$$\begin{aligned} \Omega (d) = \frac{P_t G_t G_r h_t^2 h_r^2}{d^{\theta } L} \end{aligned}$$
(2)

where, \(P_t\) stands for transmitted power, \(G_t\) represents the transmitter’s antenna gain, \(G_r\) represents the receiver’s antenna gain, \(h_t\) is the height of the transmitter’s antenna, \(h_r\) is the height of the receiver’s antenna. The \({\theta }\) and L are used to denote the path loss exponent and system loss, respectively.

Within a cluster, the communication between CVs or between a CV and its associated CH can be represented as a cascaded Nakagami-m-fading channel with a cascading factor of 2. The PDF for the channel gain \(h_2\) which includes all relevant parameters [reference22 and reference23, can be expressed as follows:

$$\begin{aligned} f(h_2) = \frac{2}{h_2 \Gamma (m_1) \Gamma (m_2)} G_{0,2}^{2,0} \left[ \frac{m_1 m_2 (h_2)^2}{\Omega _1 \Omega _2} \bigg | \begin{array}{c}- \\ m_1,m_2\end{array}\right] \end{aligned}$$
(3)

where, \(G_{0,2}^{2,0}\) denotes Meijer G-function.

Uncovered area

Uncovered Area refers to a road segment that lies outside the transmission range of any RSU. Vehicles traveling through uncovered areas are unable to communicate directly with infrastructure, which can lead to disrupted data delivery. To overcome this limitation, the proposed ECERV selection scheme employs RVs, often chosen from CHs, to forward data until connectivity with the next RSU is restored.

The proposed enhanced clustering approach for efficient relay vehicle selection in VANETs

This section outlines the proposed Enhanced Clustering approach for Efficient Relay Vehicle (ECERV) selection scheme in VANETs, where CHs are chosen as RVs. The primary objective of this approach is to enhance network performance, focusing on parameters like Throughput, Data Communication Delay, Requested Data Completeness, Packet Delivery Ratio, Cluster Stability Period, Control Overhead and Energy Consumption. It achieves this by selecting CHs as RVs instead of opting for any arbitrary CV as an RV. By incorporating the concept of clustering into the proposed scheme, it reduces the frequent disconnections between CVs and their respective RSUs. Instead, it establishes a direct connection between DV and SV through CHs acting as RVs, regardless of the number of clusters and their corresponding RSUs. Figure 3, depicts the VANET scenario with vehicles organized into clusters, illustrating the proposed scheme.

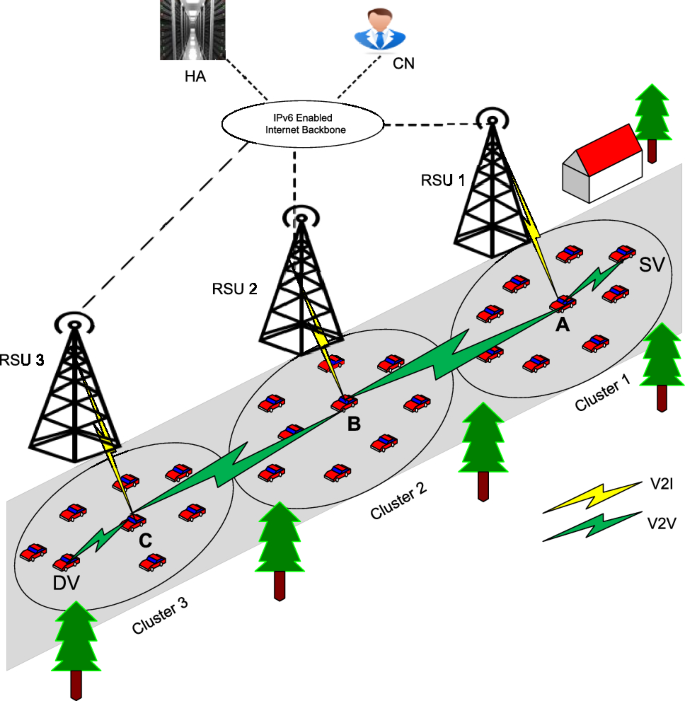

Fig. 3
figure 3

Clustering Scenario in Vehicular Networks for the Proposed ECERV Selection Scheme24.

In this vehicular network setup, there are three clusters consisting of moving vehicles, all traveling at the same speed. These clusters are serviced by three RSUs. Each CV communicates with other CVs or CHs using OBUs installed in the vehicles. However, only CHs are permitted to communicate with their corresponding RSUs. There are two types of communications: V2I and V2V, and the characteristics of the communication channels in both V2I and V2V scenarios are modeled according to the specifications outlined in previous Section. The RSUs store information about nearby RSUs and the CHs of their respective clusters, including their location and distance from the RSU’s coverage range. Importantly, only the CH in one cluster is allowed to communicate with another CH in a neighboring cluster served by a different RSU. If any CV needs to request data, it does so through its corresponding CH. If the requested data doesn’t reach within the RSU’s coverage range, the CV becomes a DV. Clustering provides increased network stability, enabling SVs to communicate with DVs through CHs instead of relying solely on RSUs. To determine the CH within a cluster, a novel CH selection procedure is introduced in the proposed approach. This section provides a comprehensive description of the proposed enhanced clustering approach for efficient relay vehicle selection in VANETs.

Methodology

The proposed ECERV selection framework operates in multiple stages, integrating clustering, relay selection, and RSU-assisted prediction to achieve reliable communication in dynamic VANET environments. The methodology is explained step by step as follows:

Cluster formation and CH selection

In the first stage, vehicles periodically broadcast beacon messages containing position, velocity, and residual energy information. A dual-strategy CH selection process is applied:

  • Stability-based metric: Vehicles with lower relative velocity variance and stronger link lifetime are preferred, ensuring longer cluster stability.

  • Proximity-based metric: Vehicles closer to the geometric centroid of their neighbors are prioritized, reducing intra-cluster communication cost.

By combining both metrics, the proposed ECERV selection scheme ensures that selected CHs are both stable and centrally positioned.

RSU prediction and relay vehicle determination

RSUs periodically collect cluster information and predict potential link breakages using vehicle mobility patterns. For Destination or Designated Vehicles (DVs) that fall outside RSU coverage, the RSU dynamically determines a RV, usually the CH or a nearby stable vehicle, to forward data towards the DV. This prediction mechanism minimizes packet loss due to frequent topology changes.

Data forwarding process

Once relay vehicles are identified, data packets are forwarded as follows:

  • CH transmits collected data to the RSU.

  • RSU either delivers data directly (if DV is in range) or selects an RV/CH for forwarding.

  • The selected RV ensures successful packet delivery to the DV.

This multi-stage relay mechanism improves delivery ratio and reduces delay compared to existing methods.

Role of clustering in relay selection

Clustering is not only used to organize vehicles into manageable groups but also plays a direct role in efficient RV selection. By limiting the candidate set to CHs, the search space for potential relays is greatly reduced, thereby minimizing control overhead. Moreover, because vehicles within a cluster exhibit similar mobility characteristics, CHs are inherently more stable than arbitrary vehicles, ensuring longer link lifetimes and fewer relay switches. Finally, since CHs already act as coordinators for their clusters, they can seamlessly forward data to DVs, avoiding additional discovery procedures. This makes clustering an integral component of the relay selection strategy in ECERV.

Cluster formation

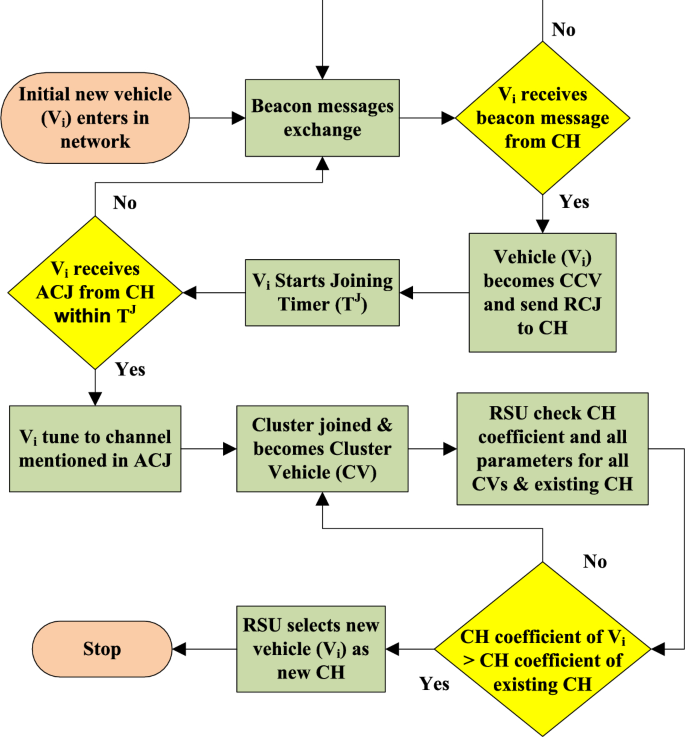

Fig. 4
figure 4

Cluster Formation and CH Selection Flowchart.

The proposed RV selection scheme harnesses the clustering based topology for selecting an efficient RV in vehicular networks. Initially, when a new vehicle \({V_i}\) enters in RSU’s range, it receives beaconing messages either from RSU or \(CH_j\) of its neighboring cluster. On receiving beaconing messages, \(V_i\) becomes Candidate Cluster Vehicle (CCV). Thereafter, \(V_i\) sends a message Request for Cluster Joining (RCJ) to \(CH_j\) and initialize Joining Timer, \(T^J\). Joining Timer is a time assumed in \(V_i\) during which vehicle receives Acceptance for Cluster Joining (ACJ) from \(CH_j\). After receiving ACJ, new vehicle tunes its frequency on channel mentioned in the message ACJ and joins cluster of \(CH_j\). If it does not receive ACJ message from \(CH_j\) during \(T^J\), then, it is not allowed to become even CCV. Besides, RSU contains a list of CH coefficient values of all vehicles that are used for the selection of CH in a cluster. Cluster Initialization, Overlap Resolution, and Stable CH Reassignment is mentioned in algorithm 1 and flowchart with CH selection is given in figure 4.

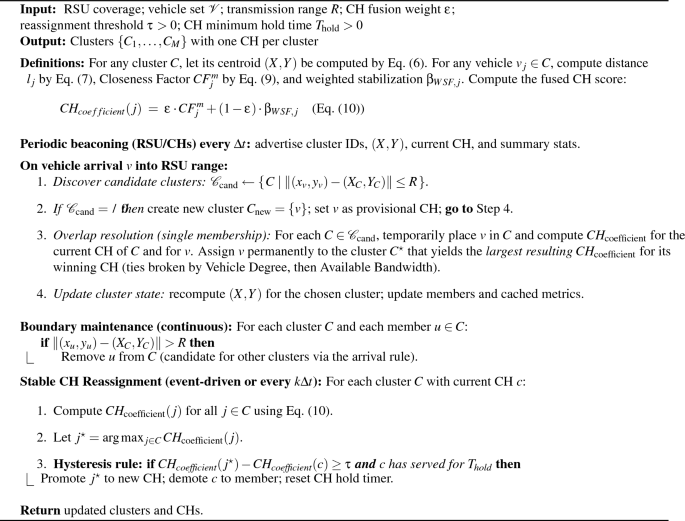

Algorithm 1
figure a

Cluster Initialization, Overlap Resolution, and Stable CH Reassignment

Notes. Cluster boundaries follow the transmission range R around the centroid (Eq. (6)–(9)); the CH score fuses spatial and stability terms via Eq. (10). To avoid CH flapping, a vehicle only replaces the current CH when its score advantage exceeds the hysteresis threshold \(\tau\), and after the current CH has served at least \(T_{\text {hold}}\). Single-cluster membership is enforced by selecting the cluster that yields the highest resulting CH score, with ties resolved by Vehicle Degree and then Available Bandwidth.

Lemma 1

(Geometric packing upper bound) The maximum number of (pairwise disjoint) clusters M that can be placed in an area \(\Omega\) of size A with cluster radius R satisfies

$$M \le \Big \lfloor \frac{\delta A}{\pi R^2} \Big \rfloor , \quad \text {where } \delta =\frac{\pi }{\sqrt{12}} \approx 0.9069.$$

Sketch of Proof

The densest packing of equal discs in the plane has area density \(\delta =\pi /\sqrt{12}\). Hence the total area covered by M disjoint radius-R discs cannot exceed \(\delta A\). Dividing both sides by \(\pi R^2\) (area per disc) gives \(M \pi R^2 \le \delta A\), i.e., \(M \le \delta A/(\pi R^2)\). \(\square\)

Lemma 2

(Counting bound from minimum cluster size) If each cluster must contain at least \(s_{\min }\ge 1\) vehicles and there are N vehicles in \(\Omega\), then

$$M \le \Big \lfloor \frac{N}{s_{\min }} \Big \rfloor .$$

Proof

This follows directly from counting: if each cluster contains at least \(s_{\min }\) vehicles, then \(M s_{\min } \le N \Rightarrow M \le N/s_{\min }\). \(\square\)

Theorem 1

(Combined bound on the number of clusters) Under the assumptions above, the number of clusters M is bounded by

$$M \le \min \!\Bigg \{ \Big \lfloor \frac{\delta A}{\pi R^2} \Big \rfloor ,\; \Big \lfloor \frac{N}{s_{\min }} \Big \rfloor \Bigg \}.$$

If the vehicle field is approximately homogeneous with intensity \(\lambda\) (vehicles/m\(^2\)), then \(N\approx \lambda A\) and

$$\mathbb {E}[M] \;\lesssim \; \min \!\Bigg \{ \frac{\delta A}{\pi R^2},\; \frac{\lambda A}{s_{\min }} \Bigg \}.$$

Proof

This result follows by combining the geometric bound from Lemma 1 with the counting bound from Lemma 2. \(\square\)

Remark 1

  1. (i)

    If clusters may geometrically overlap but membership remains exclusive, the effective territories are still disjoint, so the packing bound remains a safe upper bound.

  2. (ii)

    If a design (or bandwidth) cap imposes a maximum cluster size \(s_{\max }\), then \(M \ge \lceil N/s_{\max }\rceil\) gives a lower bound.

Numeric example (based on Table 2settings). Let the road area be \(A=5000 \times 5000 = 25,000,000 \; \text {m}^2\).

  • If \(R=300\) m (typical DSRC transmission range):

    $$M_{\max } \le \frac{\delta A}{\pi R^2} \approx \frac{0.9069 \times 25 \times 10^6}{\pi \times 300^2} \approx 80 \;\text {clusters}.$$
  • If \(R=1000\) m:

    $$M_{\max } \approx \frac{0.9069 \times 25 \times 10^6}{\pi \times 1000^2} \approx 7 \;\text {clusters}.$$

If a minimum cluster size constraint \(s_{\min }\) is applied, the bound can be further tightened as \(M \le \lfloor N/s_{\min }\rfloor\).

Enhanced cluster’s stability

In the proposed work, cluster stability is improved by adopting the strategy given in reference25. The network comprises N total vehicles, each capable of obtaining its mobility information. Let \(V_i\) be a moving vehicle with coordinate location \((x_i, y_i)\) and following a normal distribution \(\mathcal {N}(\mu _i, \sigma _i^2)\). Initially, vehicles are divided into M clusters, where \(M < N\). Each cluster is represented as \(C_i\) for \(i = 1, 2, \dots , M\), and the vehicles within cluster \(C_i\) are denoted as \(V_i^k\), where \(k = 1, 2, \dots , S_i\). All symbols and their description are given in table 1. The procedure to enhance cluster’s stability is mentioned in algorithm 2.

The average velocity, \(V_i^{avg}\), of the \(i^{th}\) vehicle in cluster \(C_i\) is determined as follows:

$$\begin{aligned} V_i^{avg} = \frac{1}{S_i} \sum _{k=1}^{S_i} \mu _{i,k} \end{aligned}$$
(4)

The velocity deviation factor \(\phi\) is given by:

$$\begin{aligned} \phi = \left| \frac{\mu _{i,k} - V_i^{avg}}{V_i^{avg}} \right| \end{aligned}$$
(5)
Table 1 Notations and Their Descriptions.

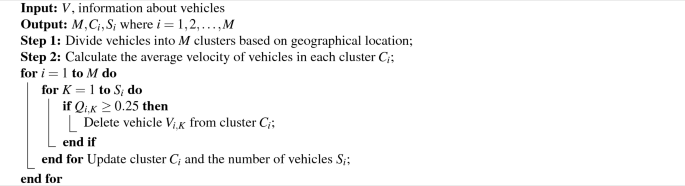

Algorithm 2
figure b

Vehicle Clustering and Filtering

Cluster head selection

In the proposed ECERV selection scheme, CH selection is based on the integration of two complementary strategies. The first strategy is the centroid-proximity strategy, represented by the Closeness Factor, \(CF_j\), which ensures that the CH is located near the cluster centroid to minimize intra-cluster distance. The second strategy is the stability-based strategy, represented by the Weighted Stabilization Factor (\(\beta _{WSF}\)), which measures the velocity stability of vehicles to enhance cluster lifetime. We fuse these strategies through a tunable coefficient \(\epsilon\), where the cluster head coefficient is defined as: \(CH_{coefficient} = \epsilon \cdot CF_j^m + (1-\epsilon ) \cdot \beta _{WSF_j}\), with \(0 \le \epsilon \le 1\). The vehicle with the highest \(CH_{coefficient}\) is selected as CH. In case of a tie, we employ Vehicle Degree and Available Bandwidth as secondary tie-breakers. This multi-criteria fusion is the novelty of proposed approach ECERV, as existing protocols generally rely on a single selection metric.

Cluster head coefficient

A clustering algorithm based on the relative velocity of a vehicle is presented26 for determining a factor referred to as Weighted Stabilization Factor (\(\beta _{WSF}\)). The vehicle bearing the highest \(\beta _{WSF}\) is chosen as the CH. When a new CV joins a cluster, it can assume the role of a CH if it meets all the necessary criteria and satisfies the \(CH_{coefficient}\) requirements. The selection process for CHs is structured to minimize frequent changes, ensuring cluster stability.

In this proposed approach, a \(CH_{coefficient}\) is utilized to determine the CH by considering both the transmission range of vehicles and their velocity. Vehicles with higher \(CH_{coefficient}\) values are prioritized for CH selection27. Let N represent the total number of vehicles in vehicular network, and their positions be \((X_1, Y_1), (X_2, Y_2), \dots , (X_N, Y_N)\). The centroid of the cluster can be determined using the following equations:

$$\begin{aligned} X = \frac{\sum _{i=1}^{N} X_i}{N}, \quad Y = \frac{\sum _{i=1}^{N} Y_i}{N} \end{aligned}$$
(6)

where, The point (XY) represents the center of the cluster and the distance of every \(j^{th}\) vehicle from centroid i.e. \(l_j\), is determined as:

$$\begin{aligned} l_j = \sqrt{(x_j - X)^2 + (y_j - Y)^2} \end{aligned}$$
(7)

Closeness Factor (\(CF_j\)) is the factor which indicates that how closer is the vehicle to centroid and is determined according to reference27 as:

$$\begin{aligned} CF_j^m = \left( 1 - \frac{l_j}{R} \right) \end{aligned}$$
(8)

In this proposed scheme this \(CF_j\) is multiplied with Link Reliability, R(l), so that, selection of CH ensures stronger and stable connection in cluster. The proposed Modified Closeness Factor, \(CF_j^m\) is calculated by the equation mentioned below:

$$\begin{aligned} CF_j^m = \left( 1 - \frac{l_j}{R} \right) \times R(l) \end{aligned}$$
(9)

where, R(l) is Link Reliability, R is transmission range of vehicle and \(CF_j^{m}\) is Modified Closeness Factor of \(j^{th}\) vehicle. Higher value of \(CF_j^{m}\) of vehicle indicates that it is closer to centroid. Figure 5 illustrates the integrating of two strategies leading to improved \(CH_{coefficient}\) with the modified \(CF_j^{m}\). An improved \(CH_{coefficient}\) in terms of \(CF_j^{m}\) and \(\beta _{WSFj}\) is determined in the following equation. Vehicles having higher values of \(CH_{coefficient}\) are prioritized as CH28.

$$\begin{aligned} CH_{\text {coefficient}} = \epsilon . CF_j^m + (1 - \epsilon ). \beta _{\text {WSF}_j} \end{aligned}$$
(10)

where, \(\epsilon\) determines the relative importance of velocity compared to range and \(\beta .WSF_j\) defines a weighted stabilization factor for the \(j^{th}\) vehicle, which should be greater for a chosen CH29. In a network with dense vehicle movement, multiple clusters exist, each with its own CH. The RSU identifies clusters within its coverage area based on vehicle velocities and the beaconing process30. After detecting a cluster, the RSU selects a CH from within its coverage range.

Practical interpretations of the metrics

Eq. (4)–(5) summarize average and relative velocity within a cluster, used to quantify local mobility dispersion. Eq. (6)–(7) define the centroid and per-vehicle distance to the centroid, and Eq. (8)-(9) normalizes this proximity as the Closeness Factor, \(CF_j^m \in [0,1]\) (larger \(CF_j^m\) means closer to the centroid). Eq. (10) fuses spatial compactness and temporal stability via \(CH_{\text {coefficient}}(j) = \epsilon \,CF_j^m + (1-\epsilon )\,\beta _{\text {WSF}_j}\); vehicles with larger \(CH_{\text {coefficient}}\) are preferred as CH. Here, \(\beta _{\text {WSF}_j}\) increases as the vehicle’s relative-velocity dispersion decreases, indicating better cluster stability.

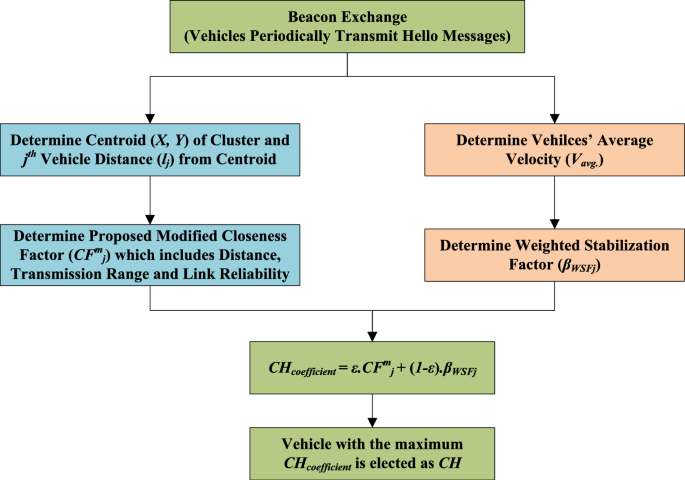

Fig. 5
figure 5

Flowchart Illustrating the Integrating of Two Strategies leading to Improved \(CH_{coefficient}\) with the Modified \(CF_j^{m}\).

Vehicle mobility

Within a cluster, all vehicles travel at the same velocity, resulting in a minimal velocity difference between CVs and the CH. This enhances cluster stability. When selecting the efficient CH, the vehicle with the least velocity difference is preferred. If \(v_j^k\) and \(v_i^k\) represent the velocities of the \(j^{th}\) and \(i^{th}\) vehicles in the \(k^{th}\) cluster, respectively, average velocity difference (\(\partial V\)) can be determined as follows:

$$\begin{aligned} \partial V = \frac{\sum _{i} |v_j^k - v_i^k|}{2 N_{\max } V_{\max }} \end{aligned}$$
(11)

where, i is an element of the set containing all parameters within the \(k^{th}\) cluster, \(N_{\max }\) denotes the total number of CVs in the cluster and \(V_{\max }\) signifies the highest velocity among the CVs.

Vehicle degree

Vehicle degree refers to the highest number of CVs in a cluster that can establish a direct link with the CH. Therefore, the CH should be selected based on the highest vehicle degree. The vehicle degree, represented as \(VD_j^k\), indicates the total count of vehicles within the range of the \(j^{th}\) vehicle in the \(k^{th}\) cluster. To maintain a stable connection among vehicles in a cluster, the maximum number of vehicles considered is \(N_{max}\).

Available bandwidth

When transmitting messages or requested data to DVs, the CH utilizes a certain amount of bandwidth. In this approach, the selection of an efficient CH as a RV also takes into account the average bandwidth consumed by the CH. The calculation for average consumed bandwidth is as follows:

$$\begin{aligned} B_j^k = \frac{B_{\text {avail}}}{B_{\text {total}}} \end{aligned}$$
(12)

where, \(B_j^k\) denotes the average bandwidth utilized by the \(j^{th}\) vehicle in the cluster \(k^{th}\), \(B_{\text {avail}}\) represents the available bandwidth and \(B_{\text {total}}\) refers to the total or maximum bandwidth capacity.

Estimation of remaining duration of connectivity for each CH

Based on velocity, the RSU estimates the Remaining Duration of Connectivity (T) for a CH when a cluster enters its coverage area and transmits a beacon message. T, is defined as the duration for which the CH remains connected to the RSU before moving out of its coverage. In this proposed approach, clusters and their CHs are assumed to be traveling in a single direction, specifically from left to right. the T of \(V_d\) can be computed as:

$$\begin{aligned} T_{V_d} = \frac{D_{R_r} - D_{V_d}}{V_{\text {avg}}} \end{aligned}$$
(13)

where, \(D_{R_r}\) represents the position of the RSU’s right boundary, \(V_d\) is the DV, \(D_{V_d}\) represents the location of \(V_d\) and \(V_{\text {avg}}\) is the average velocity of \(V_d\).

Identification of destination vehicle by RSU and delivery of requested data

DVs refer to those that have moved beyond the RSU’s coverage area after requesting data. The RSU identifies these vehicles based on their remaining duration of connectivity and the data they have requested.

$$\begin{aligned} T_{V_d} \times R_{dt} < \text {Req}_{V_d} \end{aligned}$$
(14)

where, \(R_{dt}\) represents the data transmission rate and \(\text {Req}_{V_d}\) denotes the data requested by the DV i.e. \(V_d\).

If the RSU determines that the remaining duration of connectivity \(T_{V_d}\) is insufficient for \(V_d\) to receive all requested data, the vehicle is classified as a DV. Upon receiving a data request from \(V_d\), the RSU selects the nearest CH based on its distance and velocity relative to the DV. The RSU then transmits the data to the chosen relay CH. If the distance between the relay CH and the DV is significant, the data may be relayed through an additional CH before reaching the DV.

Selection of cluster head as relay vehicle

To transmit data from a SV or a RSU to a DV, an efficient RV is selected among multiple vehicles in a cluster. In the proposed scheme ECERV, the CHs are selected as RVs for each cluster based on specific parameters, including:

  • Link Life Time (\(LLT_{ij}\)),

  • Link Reliability (\(LREL_i\)) metric of vehicle \(V_{i}\), and

  • Cluster Head Coefficient (\(CH_{coefficient}\)).

The Link Life Time (\(LLT_{ij}\)) is also known as the expiration time of the link between two adjacent vehicles, the \(j^{th}\) and \(i^{th}\) vehicles, in a cluster. It is basically a predicted duration time beyond which two adjacent vehicles are not connected in cluster and determined31 as:

$$\begin{aligned} LLT_{ij} = \frac{| \partial V | \times R - \partial V \times \partial d_{ij}}{(\partial V)^2} \end{aligned}$$
(15)

where, \(\partial V\) is the difference in average velocity between the \(j^{th}\) and \(i^{th}\) vehicle and \(\partial d_{ij}\) is the difference in distance between the \(j^{th}\) and \(i^{th}\) vehicle. The parameter Link Life Time (LLT) maintains a list of stable neighboring (\(\text {SN}_i\)) vehicles for each \(V_i\) vehicle. The larger the value of \(LLT_{ij}\), the more sustainable the link is.

Stable links and the stable-neighbor set

Following Eq. (15), we deem the link (ij) stable if \(LLT_{ij} \ge T_{\text {stable}}\). For each vehicle \(V_i\) we form the stable-neighbor set \(SN_i=\{\,V_j \mid LLT_{ij} \ge T_{\text {stable}}\,\}\), which is then used in the link-reliability aggregation (Eqs. (16)–(18)). Intuitively, larger \(LLT_{ij}\) implies a longer residual time that two vehicles remain within range, which promotes consistent forwarding opportunities.

Link reliability

The model of Link Reliability between the \(j^{th}\) and \(i^{th}\) vehicles in urban vehicular networks is presented32. The model of Link Reliability may be defined as the conditional probability applied to equation (16), which gives the probability of continuous connectivity of the link between two vehicles.

$$\begin{aligned} R(l) = P \{ l \text { continues to } t + LLT \} \end{aligned}$$
(16)

where, R(l) indicates Link Reliability and ‘l’ represents the link between \(j^{th}\) and \(i^{th}\) vehicle on condition that ‘l’ is available at ‘t’. The above equation indicates that if link is available at time‘t’ then it will also be available at time (t + LLT). To determine link reliability, speed of vehicles is main parameters. In the proposed ECERV selection scheme, a specific metric i.e. Link Reliability Metric for vehicle \(V_i\) is considered for selecting CH as RV. Link Reliability (LREL) metric is determined18 as:

$$\begin{aligned} LREL_i(t) = \sum _{v_j \in SN_i} R_t(l_{ij}) \end{aligned}$$
(17)

where, \(R_t (l_{i,j})\) can be calculated as:

$$\begin{aligned} R_t(l_{ij}) = {\left\{ \begin{array}{ll} \int _{t}^{t+LLT} f(t) \, d(t), & \text {if } LLT> 0 \\ 0, & \text {otherwise} \end{array}\right. } \end{aligned}$$
(18)

The CHs of each clusters having higher value of LREL and \(CH_{coefficient}\), will be selected as RV in the proposed ECERV selection scheme for the purpose of data transmission. RSU contains all the information about metrics of each vehicle in clusters. In case of selection out of LREL and \(CH_ {coefficient}\) by RSU, the preference will be given to LREL.

Overall operation of proposed approach

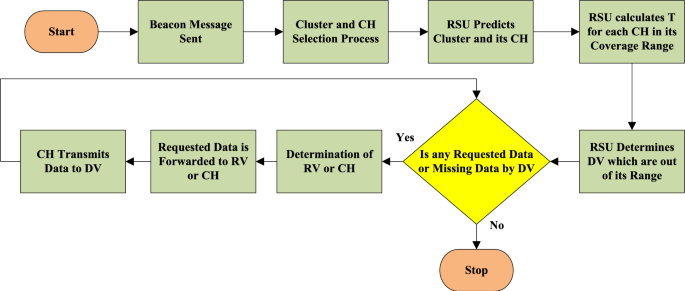

The overall operation of the proposed ECERV selection scheme is shown in Fig. 6 and various steps for data forwarding are depicted in algorithm 3. As illustrated in the flowchart, cluster formation is initiated through a beaconing message process. Once clusters are established, the selection of a CH takes place. In the proposed approach, the efficiently chosen CH also serves as a reliable RV, responsible for forwarding missing data to the DV or transmitting messages from the SV to the DV. Additionally, each RSU predicts the nearby clusters and their CHs while updating CHs with information regarding the velocity, location, and distance of CVs. Vehicles that previously requested data from an RSU within its coverage area and later moved out of range become DVs. To facilitate seamless data delivery, the RSU identifies DVs based on their remaining duration of connectivity and transmits the requested data to the CH. These CHs then act as RVs, relaying the data to CHs of adjacent RSU clusters while searching for the respective DVs. Consequently, data is efficiently delivered to the DV without requiring frequent RSU involvement. The communication process occurs between CHs of different clusters, independent of the number of RSUs or clusters.

Fig. 6
figure 6

Overall Operation of the Proposed ECERV Selection Scheme.

The proposed selection scheme integrates two different CH selection strategies and introduces an innovative approach for cluster formation and CH selection. Subsequently, CHs of each RSU-associated cluster are designated as RVs. Due to the high deployment cost of RSUs along roadways, maintaining continuous vehicle connectivity with RSUs at all times is impractical. This results in uncovered regions between adjacent RSUs where no direct connection can be established between RSUs and vehicles. When vehicles enter such uncovered regions, RSUs cannot efficiently provide the requested data. To ensure a stable vehicular network, cluster formation is necessary when vehicles move into a new RSU’s range. Following the clustering process, CHs are selected for each cluster, and only these CHs function as RVs to relay the requested data to the DV. The Performance evaluation of the proposed ECERV selection scheme demonstrates significant improvements in throughput, data communication delay, requested data completeness, and packet delivery ratio, making it a more efficient solution compared to conventional approaches.

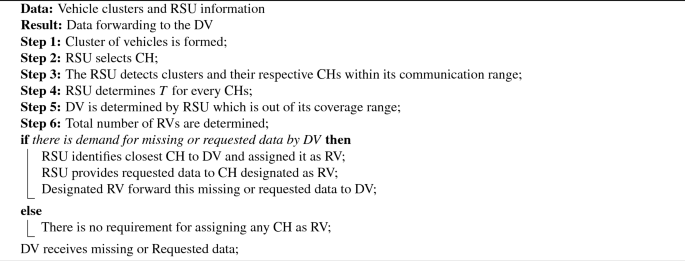

Algorithm 3
figure c

Cluster Formation and Data Forwarding

Results analysis and discussion

In this section, the performance of the proposed ECERV selection scheme for VANETs is compared with previous RV selection schemes. The motive behind such comparison is to analyze the impact of stability of cluster on selecting optimal RV and variation in different performance metrics due to variation in speed and number of vehicles. It is shown that, the variation in speed of vehicles and number of vehicles affects the Delay in Data Communication, Completeness of Missing or Requested Data, Throughput, Packet Delivery Ratio, Cluster Stability Period, Control Overhead and Energy Consumption in the vehicular network. The results demonstrated in this section, strongly argue that the proposed ECERV selection scheme for VANETs shows significant improvements in terms of specific performance metrics, when it is compared with previous research work.

Parameterization & thresholds

We select four operational parameters to balance data delivery, latency, and control stability: (i) the fusion weight \(\epsilon\) in \(CH_{\text {coef}}\), (ii) the CH-switch hysteresis \(\tau\) (minimum advantage to replace the current CH), (iii) the minimum CH hold time \(T_{\text {hold}}\), and (iv) the stable-link threshold \(T_{\text {stable}}\) used in \(SN_i\).

Selection rationale

We conducted a small grid search on representative traces (vehicle counts 60–100; speeds 25–35 m/s) and chose values that maximized PDR while constraining CH churn and end-to-end delay. Specifically, we explored \(\epsilon \in \{0.3,0.5,0.7\}\), \(\tau \in \{0.03,0.05,0.08\}\) (with \(CH_{\text {coef}}\) normalized to [0, 1]), \(T_{\text {hold}}\in \{2,3,5\}\,\text {s}\), and \(T_{\text {stable}}\) as the p-th percentile of the empirical LLT distribution with \(p\in \{10,25,40\}\). Across densities, \(\epsilon {=}0.5\) provided a robust spatial/temporal balance; \(\tau {=}0.05\) and \(T_{\text {hold}}{=}3\) s limited unnecessary CH switches; \(T_{\text {stable}}{=}\text {percentile}_{25}(LLT)\) filtered transient links yet preserved enough neighbors for forwarding. Operational parameters and final values used in experiments have been mentioned in table 2.

Table 2 Operational parameters and final values used in experiments.

In summary, \(CH_{\text {coefficient}}\) (Eq. (10)) weights centroid proximity and velocity stability (Eqs. (7)–(9)) while \(\tau\) and \(T_{\text {hold}}\) ensure CH stability; \(LLT_{ij}\) (Eq. (15)) and \(T_{\text {stable}}\) define stable neighbors used in the link-reliability aggregation (Eqs. (16)–(18)).

Criterion for performance metric selection

In this study, seven key metrics such as: Throughput, Packet Delivery Ratio, Data Communication Delay, Requested Data Completeness, Cluster Stability Period, Control Overhead and Energy Consumption were selected for performance evaluation. These metrics were prioritized because the primary objective of ECERV selection scheme is to enhance data delivery reliability and connectivity in uncovered regions, where packet-level performance directly indicates protocol effectiveness. We note that other metrics, such as energy consumption (important for RSUs/OBUs) and control overhead (relevant to clustering), are also valuable. However, unlike wireless sensor networks, VANET devices are generally less energy-constrained, and clustering-based control is already implicitly reflected through cluster stability and reduced CH reassignments in the proposed ECERV selection approach.

Statistical validation

To ensure that the reported improvements are statistically reliable, each experiment was repeated five times, and we computed the mean along with 95% confidence intervals (CIs). Additionally, we performed two-tailed t-tests between ECERV and each baseline schemes Ahmed et al.15, Chai et al.16, and the CORV24. The results confirm that the observed gains in throughput, PDR, and delay are statistically significant (\(p < 0.05\)). This statistical validation strengthens the claim that ECERV consistently outperforms existing approaches. Table 3 shows the statistical validation of the propose ECERV selection approach using two-tailed t-tests (p-values).

Table 3 Statistical Validation of ECERV Improvements using Two-Tailed t-tests (P-Values).

Experimental setup

To analyze the impact of variations in vehicle speed and density on key performance metrics such as: throughput, data communication delay, requested data completeness packet delivery ratio, cluster stability period, control overhead and energy consumption, simulations were conducted, as these metrics are the primary focus of this study. The simulations were carried out using Network Simulator33 (NS-2), version 2.34. A portion of the simulated vehicular environment is illustrated in Fig. 7.These figures are entirely simulation-based outputs and not derived from external satellite imagery. This ensures that no copyright permissions are required, as the maps and backgrounds originate solely from the simulation tools employed. Vehicular mobility traces were generated using a realistic mobility model developed with the SUMO traffic simulation tool, which is integrated with NS-2 [reference34 and reference35. This model produces vehicles moving at speeds ranging from 10 to 40 m/s.The simulations were performed on bi-directional roads with a single lane in each direction, covering a simulation area of 5000 m \(\times\) 5000 m over a duration of 150 seconds. Each message had a size of 100 bytes and was transmitted at a data rate of 3 Mbps. The ad hoc communication range and data transfer rate were set according to the IEEE 802.11p standard, with vehicle transmission ranges varying between 300 m and 1000 m. A summary of the simulation parameters is provided in Table 4.

Fig. 7
figure 7

Screenshot of the vehicular network simulation environment. The scenario was generated using SUMO http://sumo.dlr.de) integrated with NS-2. The figure represents simulation outputs only; no third-party or copyrighted satellite imagery has been used.

Table 4 Simulation parameters for proposed ECERV selection scheme.

Simulated results

This section gives the comparison of the simulated results of the proposed ECERV selection scheme with other previous relevant schemes Ahmed et al.15, Chai et al.16 and CORV24. These four performance metrics are: delay in data communication, completeness of missing or requested data, throughput, and packet delivery ratio.

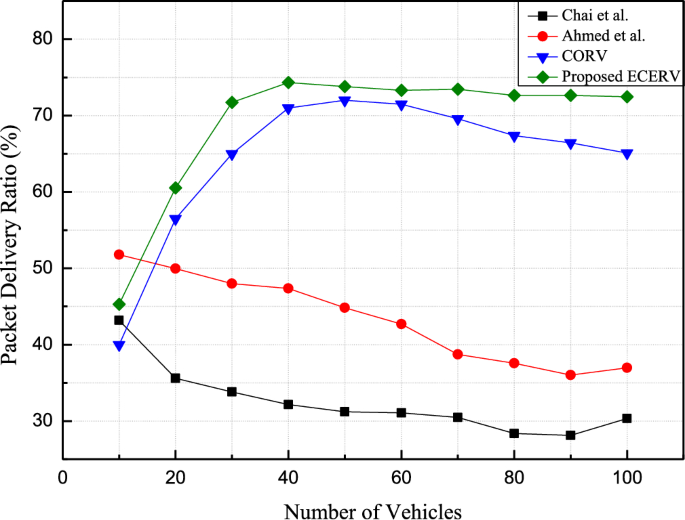

In Fig. 8, the performance of Packet Delivery Ratio (PDR) is observed with the increasing number of vehicles. Initially, PDR is low but as the number of vehicles increase, it increases and it remains almost constant. The reason is that, in the proposed scheme cluster’s stability is enhanced and CH is selected as RV and if the number CHs increase, relay vehicles also increases.

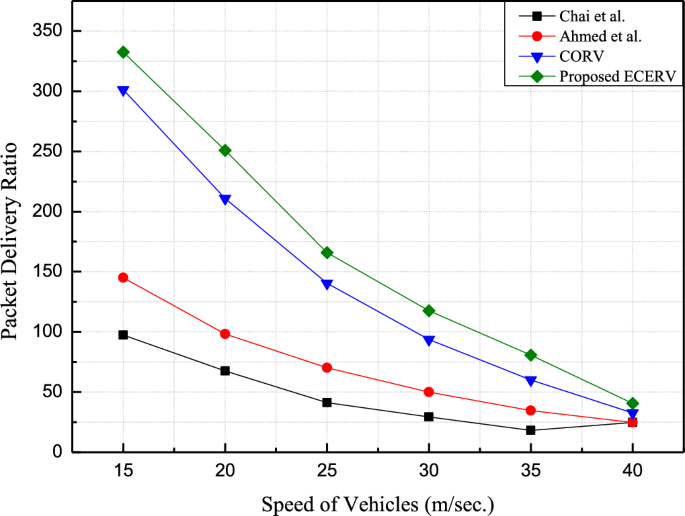

Figure 9 shows the performance of PDR with speed of vehicles. PDR decreases when speed of vehicles increase. PDR decreases with the increase of speed because of quickly disconnection from other vehicles or RSUs. The proposed ECERV shows considerable improvement with respect to other schemes, because in a cluster, speed of all the vehicles is constant. So, there is lesser effect on PDR.

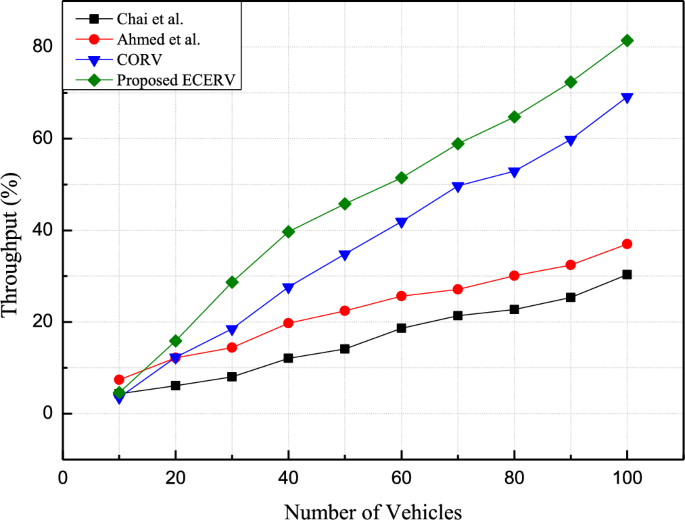

Figure 10 illustrates the effect of increasing vehicle density on network throughput. In VANETs, throughput generally improves as the number of vehicles rises since more data packets are transmitted, making higher throughput desirable. The approach proposed by Chai et al.16 primarily considers the selection of a single CH as an RV within a cluster, without enabling communication between CHs of different clusters. Similarly, the method introduced by Ahmed et al.15 emphasizes RV selection, relying on RSU services whenever more than two RSUs are available. In contrast, the proposed ECERV selection scheme incorporates both CHs as RVs and facilitates intra-cluster communication through CHs, enhancing network stability. As a result, a SV in one cluster can communicate with a DV in another cluster without consistently depending on RSUs. This approach significantly improves throughput compared to existing methods.

Fig. 8
figure 8

Number of Vehicles versus Packet Delivery Ratio.

Fig. 9
figure 9

Speed of Vehicles versus Packet Delivery Ratio.

Fig. 10
figure 10

Number of vehicles versus Throughput (Kbps).

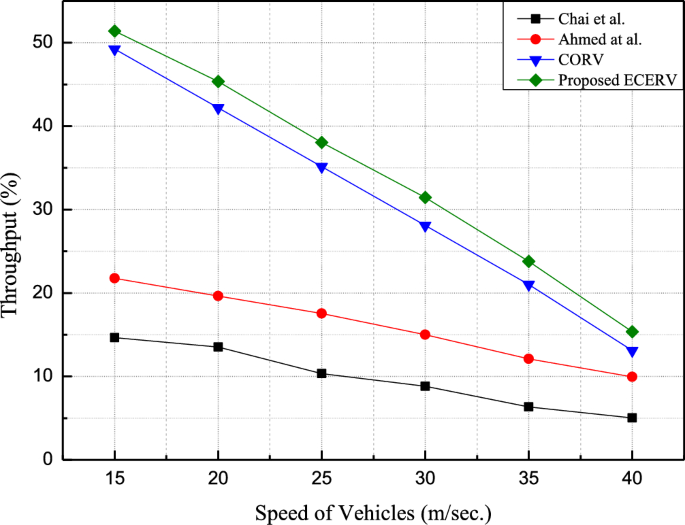

Figure 11 reveals that throughput decreases as vehicle speed increases, with vehicle speeds considered up to 40 m/s. This reduction in throughput occurs due to frequent disconnections of CVs from RSUs. In the proposed ECERV scheme, the CH collects all requested data within the RSU’s coverage and efficiently forwards it to the DV, minimizing collision probability due to the low relative velocity of CVs within clusters. By selecting CHs as RVs, the adverse effects of RSU disconnections are mitigated, leading to a notable enhancement in throughput when compared to competing schemes, including those by Ahmed et al.15, Chai et al.16, and the CORV24 approach.

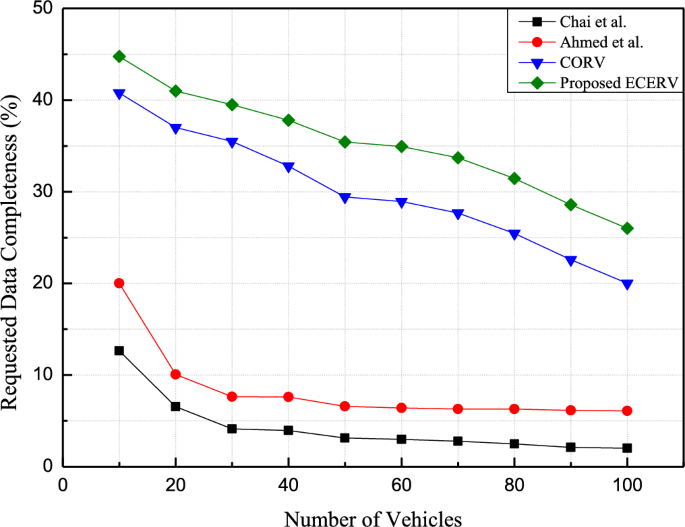

Figure 12 illustrates the influence of the number of neighboring vehicles around a DV on Requested Data Completeness (RDC), which is defined as the successful reception of all requested data by a DV after moving out of RSU coverage. This data was initially requested when the vehicle was still a CV within the RSU range and later became a DV. Compared to existing schemes, the proposed ECERV approach observes that lower vehicle density results in higher RDC. However, as the number of vehicles increases, RDC decreases due to a rise in packet collisions caused by higher transmission rates in the network.

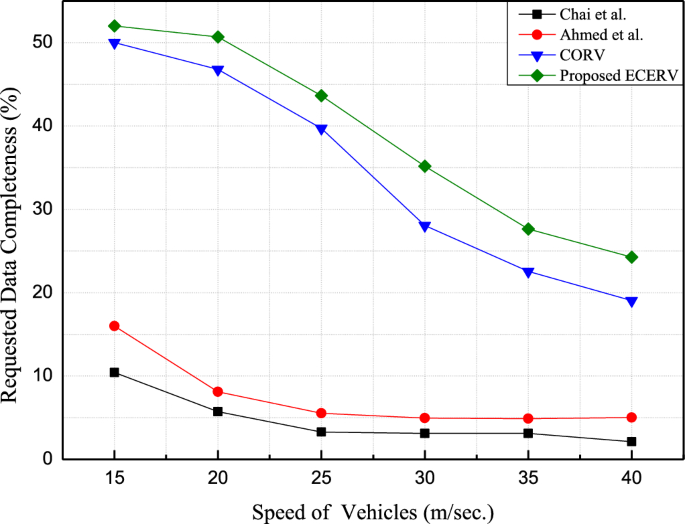

Figure 13 investigates the impact of vehicle speed on RDC. Vehicles with lower speeds exhibit improved RDC performance since they maintain longer connection times with RSUs, allowing them to store and retrieve requested data effectively. Conversely, as vehicle speed increases, connection time with RSUs decreases, leading to reduced RDC. The proposed ECERV scheme achieves a higher RDC percentage by maintaining low relative velocity within clusters and reducing the number of relay vehicles, thereby minimizing packet collisions.

Fig. 11
figure 11

Speed of Vehicles versus Throughput.

Fig. 12
figure 12

Number of Vehicles versus Requested Data Completeness.

Fig. 13
figure 13

Speed of Vehicles versus Requested Data Completeness.

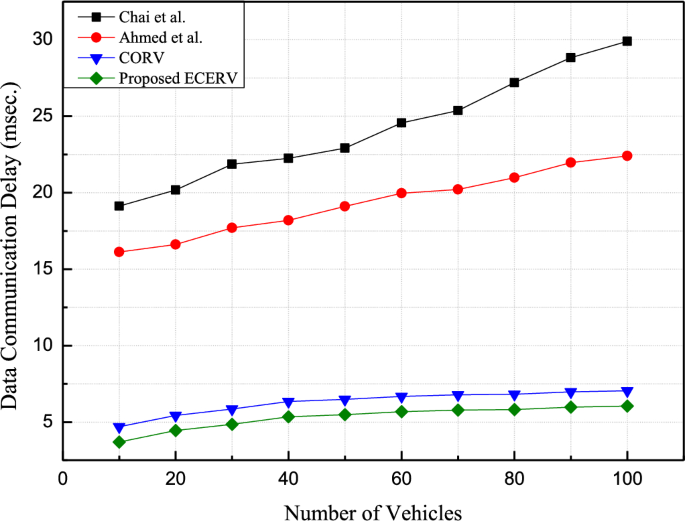

Figure 14 examines the effect of vehicle density on data communication delay, where lower delay is preferred. In Ahmed et al.’s15 scheme, as vehicle density increases within an RSU’s coverage, data communication delay rises due to multiple service requests being processed simultaneously and multiple RVs being selected. Additionally, their method lacks CH selection as RVs for transmitting requested data in uncovered areas. The approach by Chai et al.16 involves CH selection as RVs, but it does not facilitate inter-cluster communication between CHs. In contrast, the proposed ECERV scheme uses clustering and efficient selection of CH as RVs, reducing the number of required RVs and consequently lowering data communication delay. Furthermore, service requests are consolidated through a single CH, rather than multiple CVs, leading to significantly reduced and more consistent communication delay.

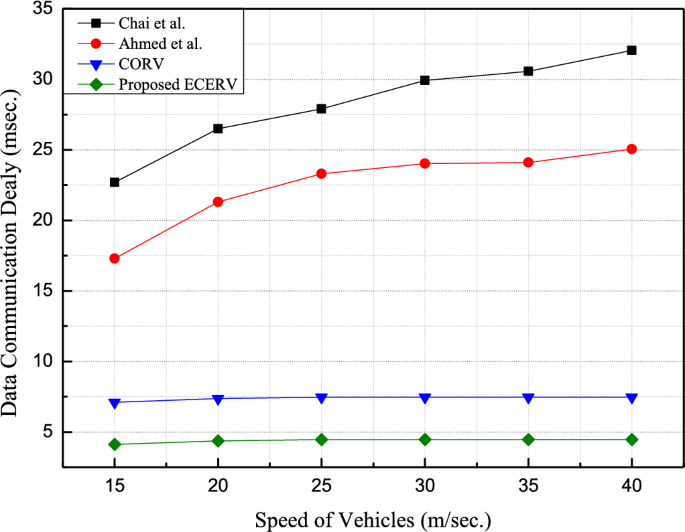

Figure 15 presents the relationship between vehicle speed and data communication delay, demonstrating that the proposed ECERV scheme achieves lower delay compared to the methods of Ahmed et al.15, Chai et al.16, and CORV24. In these competing schemes, as vehicle speed increases, delay rises due to vehicle mobility and the absence of a parameter accounting for remaining duration of connectivity when determining DV locations. The proposed ECERV approach addresses this by minimizing mobility effects through clustering and forwarding data via CHs to DVs. Additionally, the proposed ECERV algorithm assesses whether a request can be served based on the remaining duration of connectivity and the volume of data that can be transmitted to DVs. This optimization results in a significantly lower and more stable data communication delay in the proposed scheme.

Fig. 14
figure 14

Number of Vehicles versus Data Communication Delay.

Fig. 15
figure 15

Speed of Vehicles versus Data Communication Delay.

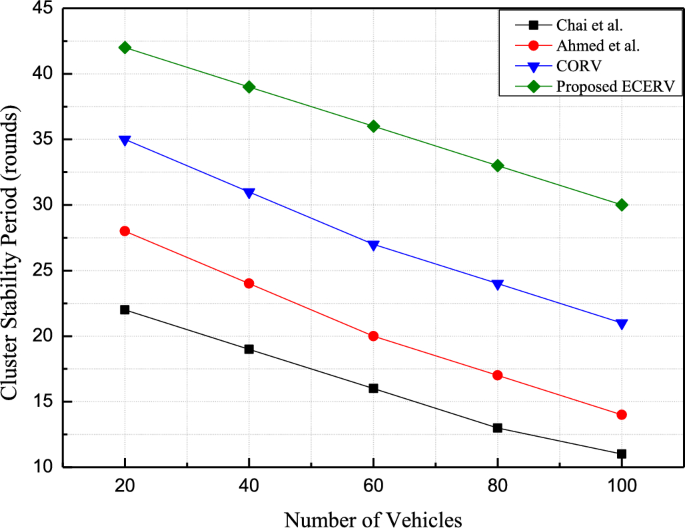

Cluster Stability Period (CSP) refers to the duration (in simulation rounds or time units) for which a cluster remains intact before a re-clustering or CH re-selection event occurs. Figure 16 demonstrates the variations of CSP against number of vehicles. The proposed ECERV shows higher CSP in comparison to other schemes. A longer CSP indicates that the clustering algorithm ensures more stable groupings of vehicles, thereby reducing frequent cluster maintenance overhead and improving routing reliability in VANETs.

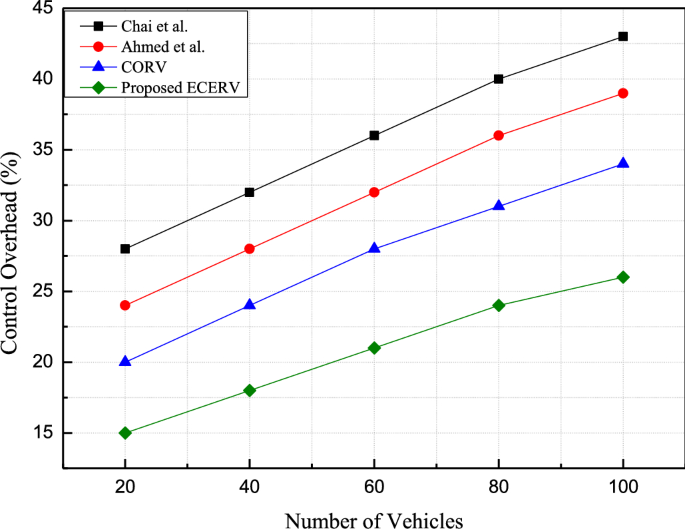

Figure 17 presents the graph which gives the variations of Control Overhead (CO) with increasing number of vehicles. CO represents the fraction of control packets (e.g., beacon messages, CH announcements, cluster join requests) relative to the total packets transmitted in the network. A lower CO implies higher efficiency, as fewer resources are wasted on signaling, making the protocol more scalable for dense vehicular networks. The proposed ECERV approach results in lower CO compared to other schemes.

Figure 18 demonstrates the Energy Consumption (EC) with respect to Simulation Time. Energy Consumption refers to the total energy expended by all nodes (vehicles and RSUs) during communication, including transmission, reception, and idle listening activities. Lower energy consumption indicates better utilization of resources and is crucial in extending the operational lifetime of vehicular devices and RSUs. The proposed ECERV approach results in lower energy consumption compared to other schemes.

Fig. 16
figure 16

Number of Vehicles versus Cluster Stability Period.

Fig. 17
figure 17

Number of Vehicles versus Control Overhead.

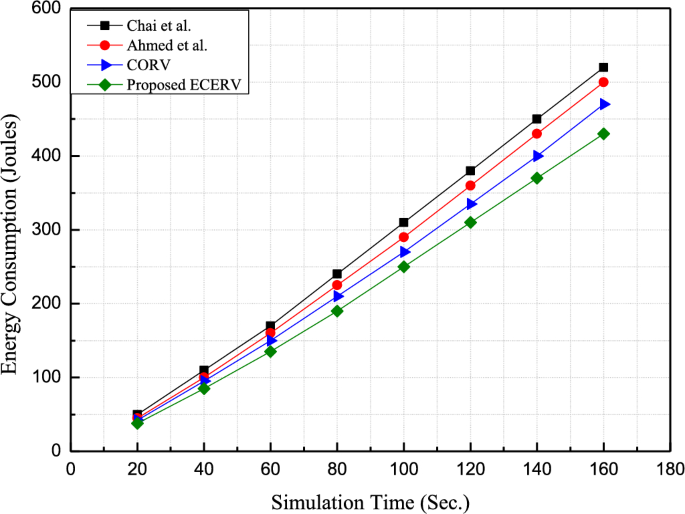

Fig. 18
figure 18

Energy Consumption versus Simulation Time.

Performance comparison and improvements of metrics of ECERV across protocols

The methods of reference15, reference16, and reference24 were selected as baselines because they are widely cited and represent established clustering-based or relay selection approaches in VANETs. These schemes provide a fair benchmark to highlight the contribution of our clustering and CH-fusion strategy. We note, however, that more recent state-of-the-art methods, particularly those employing Machine Learning for RV prediction and selection, are gaining prominence. Incorporating such ML-based baselines is an important direction for future work to further validate ECERV selection scheme under highly dynamic and large-scale VANETs scenarios. Table 5 gives the comparison of performance metrics across protocols and the percentage improvement of the proposed ECERV selection scheme are given in table6.

Table 5 Comparison of Performance Metrics across Protocols.
Table 6 Percentage Improvement of Proposed ECERV over baseline Protocols.

Conclusion

The Enhanced Clustering approach for Efficient Relaying Vehicle selection is introduced to improve data retrieval reliability for DVs in Vehicular Delay-Tolerant Networks. This method identifies the relay vehicle as the cluster head after forming clusters and selecting CHs by considering both vehicle transmission range and velocity. Since clustered vehicles exhibit lower mobility, greater stability, and a reduced risk of message collisions, the proposed scheme ensures more reliable data retrieval for DVs in uncovered regions. As a result, it enhances network performance by achieving higher throughput, reduced communication delay, improved data completeness, and a higher packet delivery ratio compared to conventional RV selection strategies.

Extension to UAV-based communication

Although ECERV focuses on clustering and relay vehicle (RV) selection among ground vehicles, there may be extreme cases where neither a suitable RV nor an RSU is available in an uncovered area. In such scenarios, Unmanned Aerial Vehicles (UAVs) or drones can act as temporary relay nodes, providing on-demand connectivity and extending coverage. This hybrid approach has the potential to complement ECERV by ensuring communication continuity even in sparse or infrastructure-less regions. In future work, we plan to integrate UAV-assisted communication into the ECERV framework to enhance robustness in challenging environments.

Limitations and scalability

While the proposed ECERV scheme has demonstrated significant improvements under a bi-directional, single-lane road scenario, this setting represents a simplified abstraction of real-world VANETs conditions. In practice, vehicular networks operate over multi-lane highways, dense urban intersections, and heterogeneous RSU deployments, which introduce additional complexities such as frequent lane changes, traffic signal effects, and varying densities of vehicles. Although the clustering and CH-fusion strategy in ECERV is inherently scalable to larger and more complex topologies, additional adaptations may be required. For example, lane-change dynamics can alter cluster boundaries more frequently, and urban intersections may necessitate intersection-aware CH reassignment policies. As part of future work, we intend to extend ECERV to such multi-lane and urban scenarios and to validate its performance in large-scale, mixed-mobility environments. This discussion clarifies the current scope of our simulations and outlines the scalability of the proposed approach.
