From: Cardiotoxicity of different 5-HT3 receptor antagonists analyzed using the FAERS database and pharmacokinetic study

Fig. 3

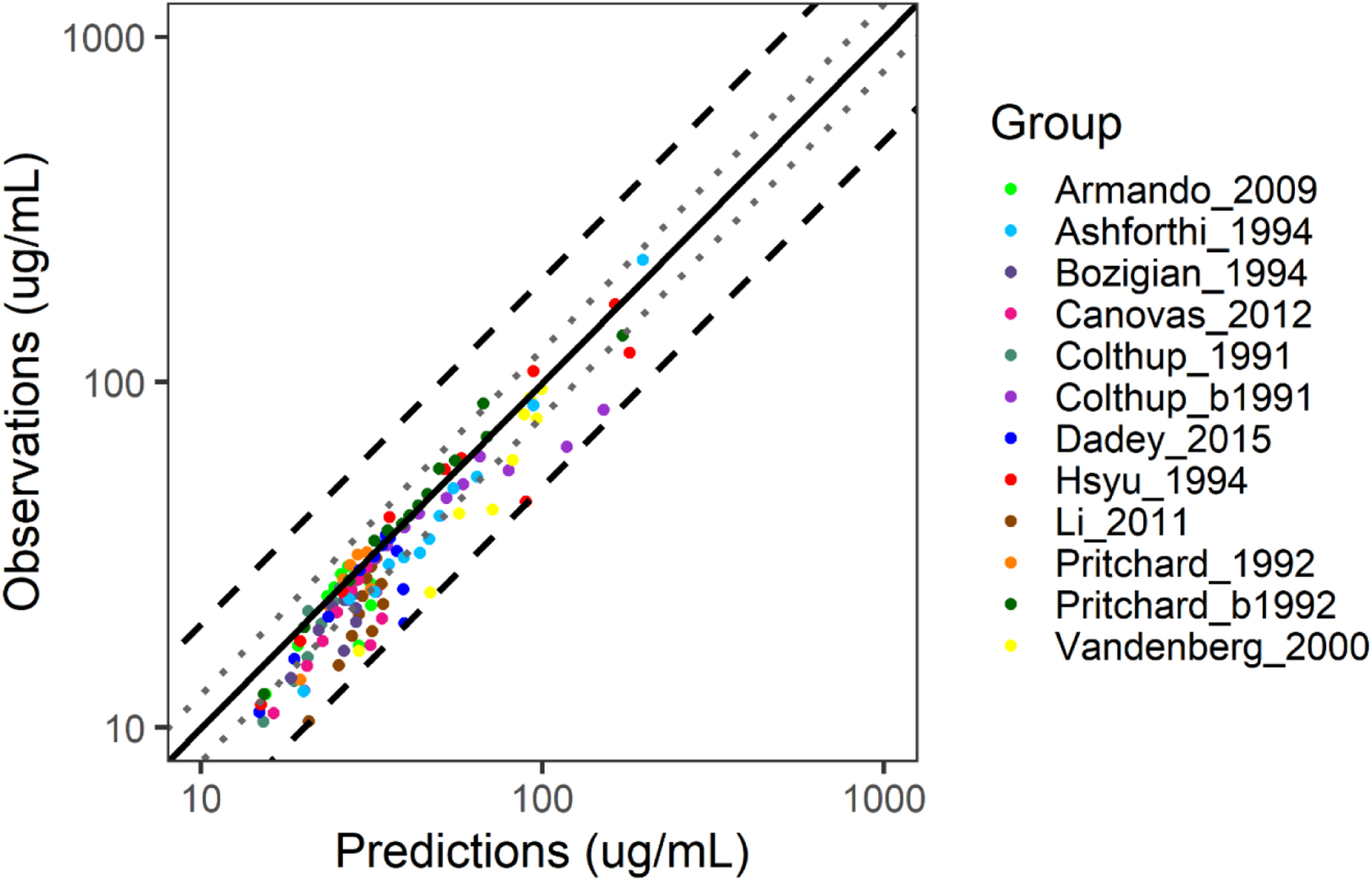

The goodness of fit plots of final model. The black line signifies that the observed concentrations are equal to the predicted ones. Black and grey dotted lines were obtained by scaling the observed concentrations by a factor of 2 and 1.25, respectively. Different colours represent concentrations measured in different studies (more detailed information can be found in the supplementary document).
