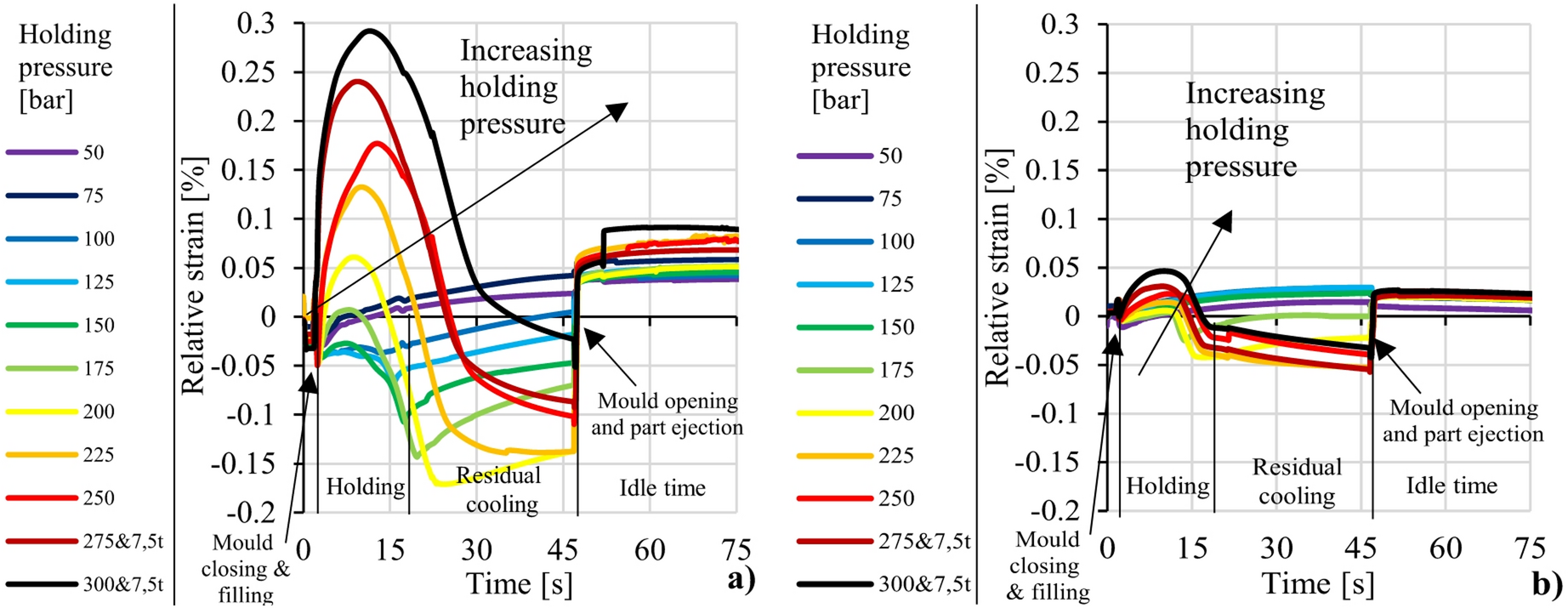

Fig. 6
From: Applying high-performance resins in stereolitography printing to produce prototype injection moulds
Operational deformations of the high temp injection mould insert (a) and the Rigid10K injection mould insert (b) in the 50–300 bar holding pressure range.
