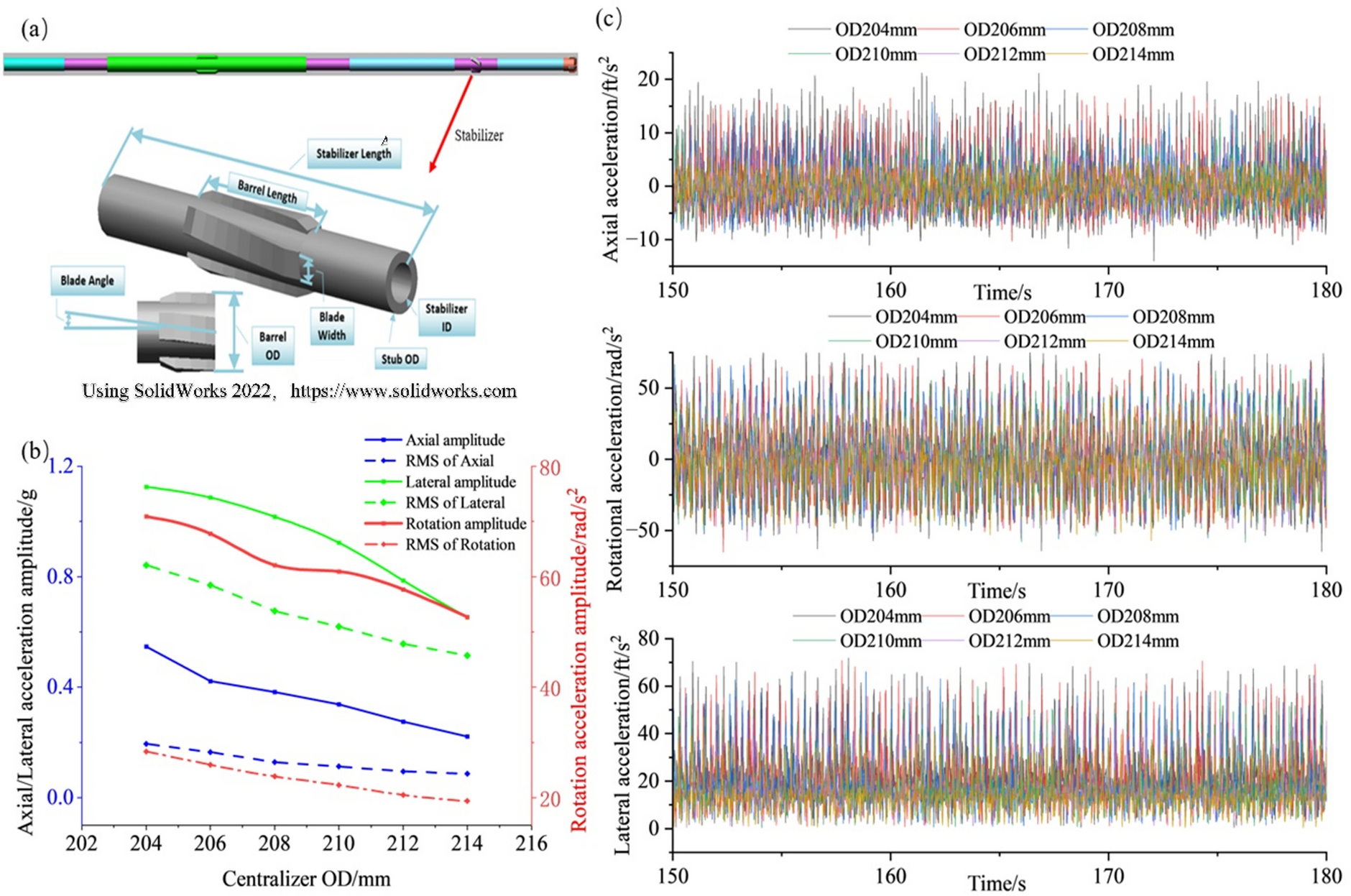

Fig. 6
From: Vibration behavior analysis of reamers based on drill string dynamics
(a) Stabilizer OD Schematic (b) Variations in triaxial acceleration amplitudes and RMS of the Reamer Under stabilizer OD. (c) Triaxial acceleration curves of the reamer under stabilizer OD.
