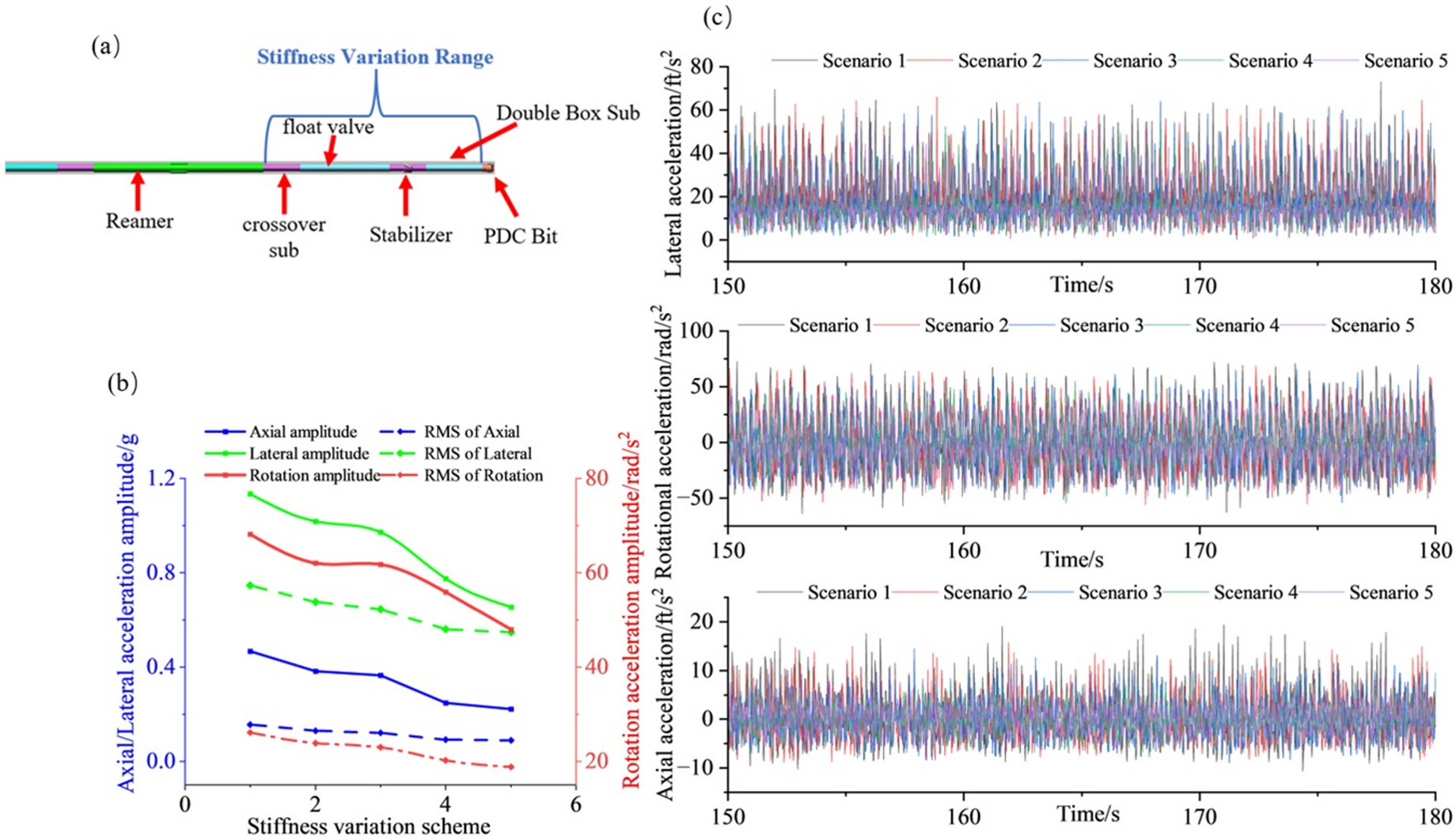

Fig. 7
From: Vibration behavior analysis of reamers based on drill string dynamics
(a) Stiffness variation range. (b) Variations in triaxial acceleration amplitudes and RMS of the reamer under drill string stiffness between bit and reamer. (c) Triaxial acceleration curves of the reamer under drill string stiffness between bit and reamer.
