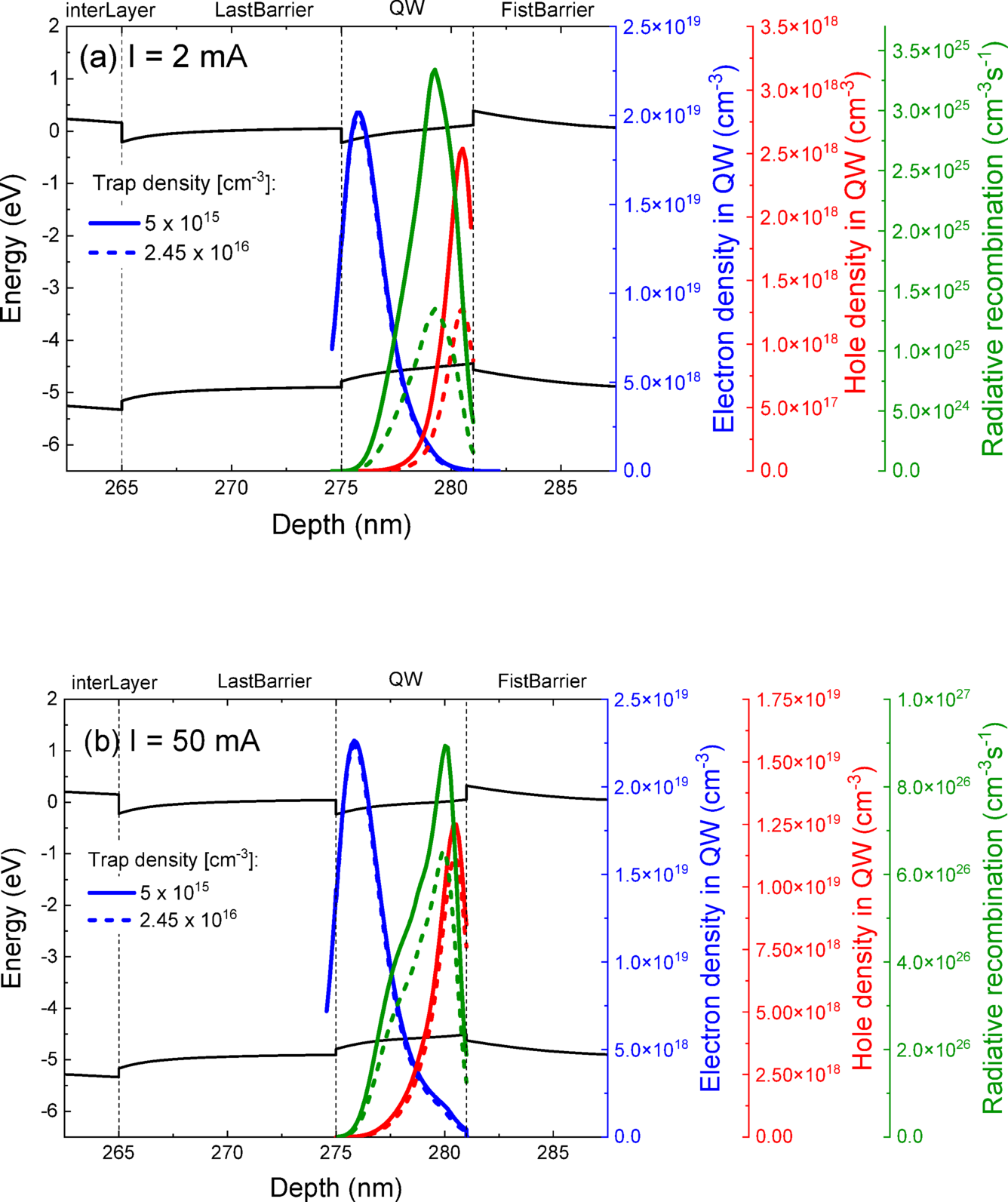

Fig. 4

Simulated band diagram of the investigated structure at two different current levels: 2 mA (a) and 50 mA (b). With equal defect density in the QW, the impact of defects on the radiative efficiency prevails at low current, where we can spot a reduction of 80% (at 2 mA), against a 20% reduction at 50 mA.
