Fig. 3
From: Research on power flow of encased differential gear train in coaxial contra-rotating gearbox

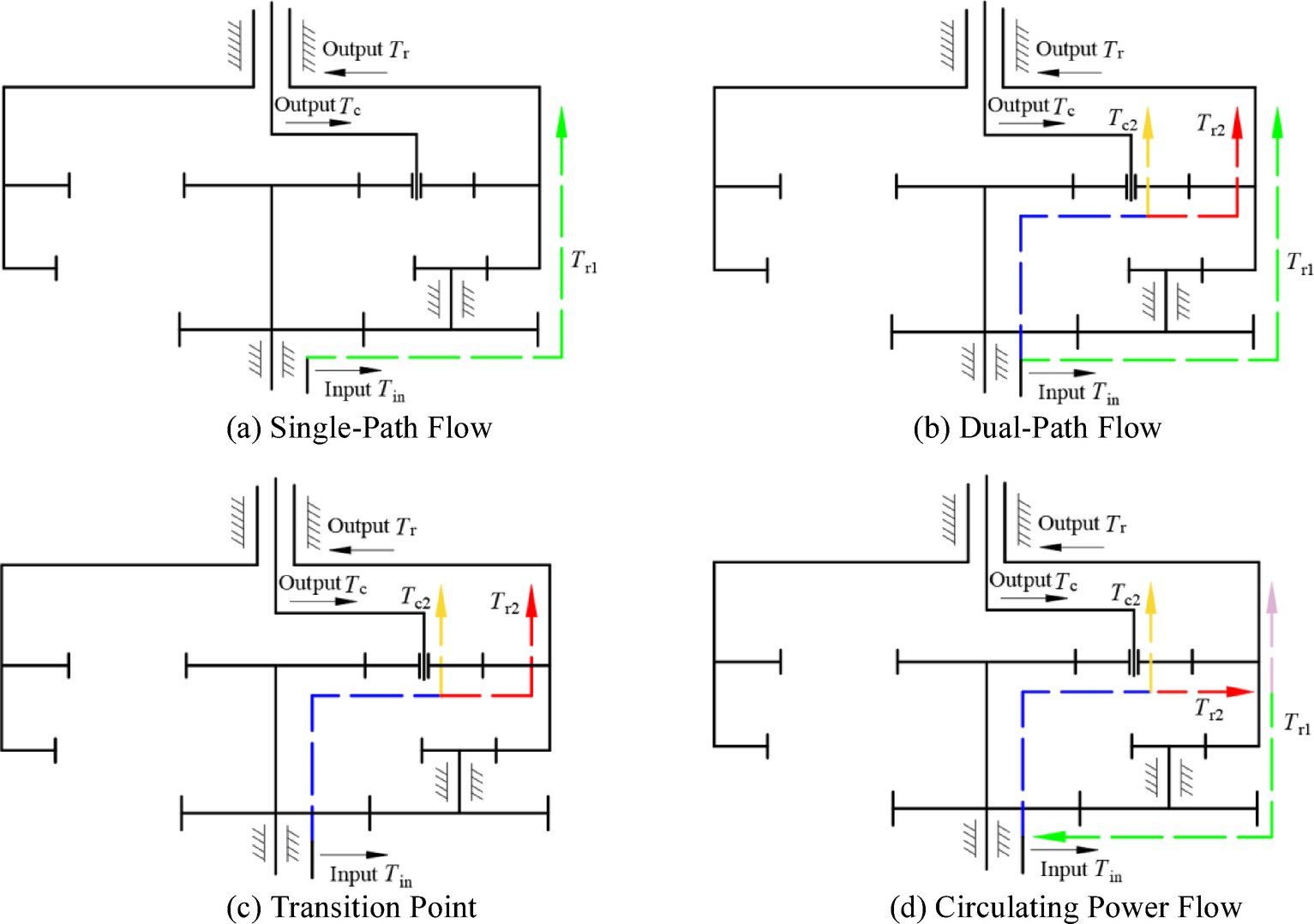

Power flow of encased differential gear train under different loads. Different colored lines are used to represent different power transmission paths. The system has four distinct transmission scenarios. (a) Single-Path Flow, (b) Dual-Path Flow, (c) Transition Point, (d) Circulating Power Flow.
