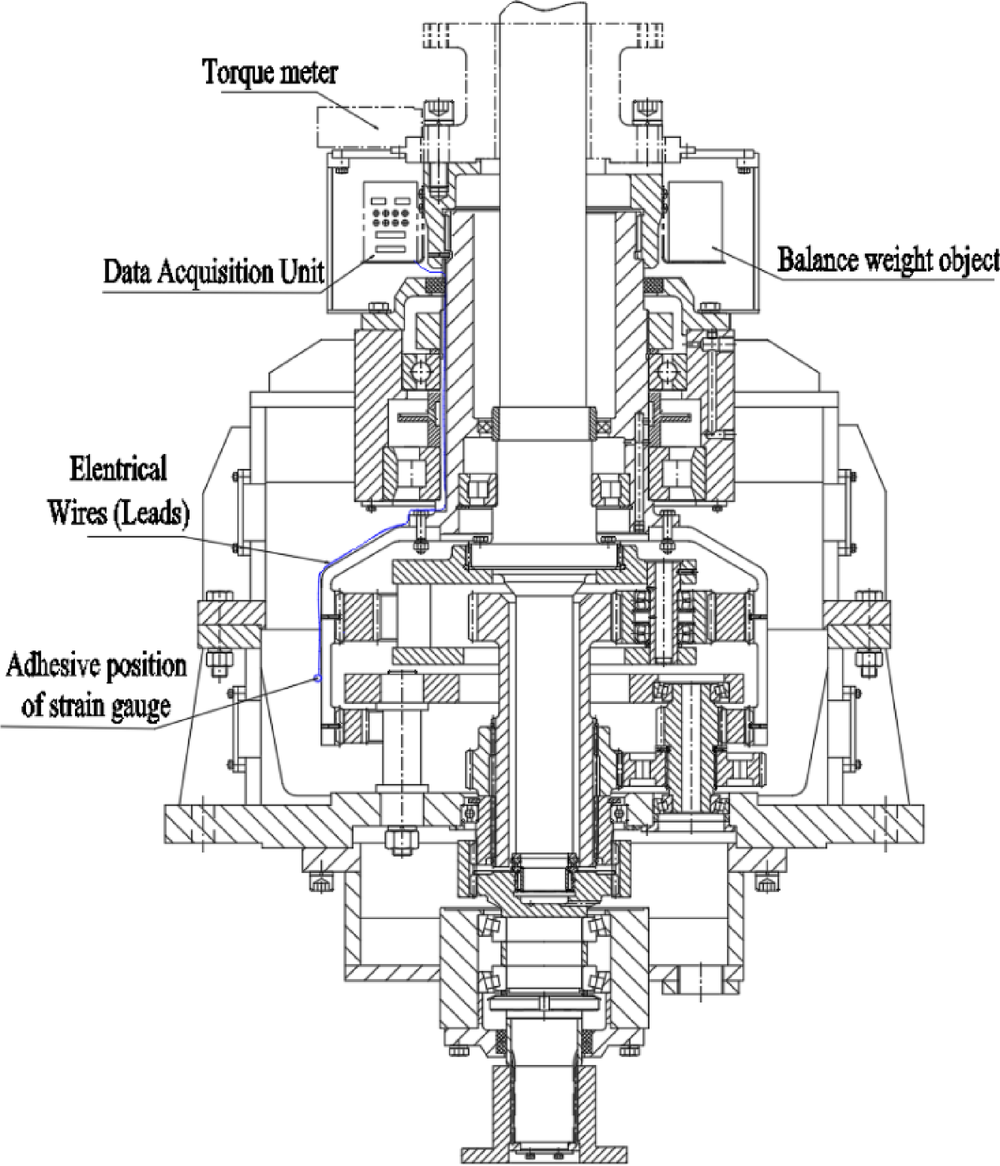

Fig. 6
From: Research on power flow of encased differential gear train in coaxial contra-rotating gearbox
Layout of strain gauges and data acquisition equipment. Wires connecting the strain gauges to the data acquisition unit are indicated by blue lines.
