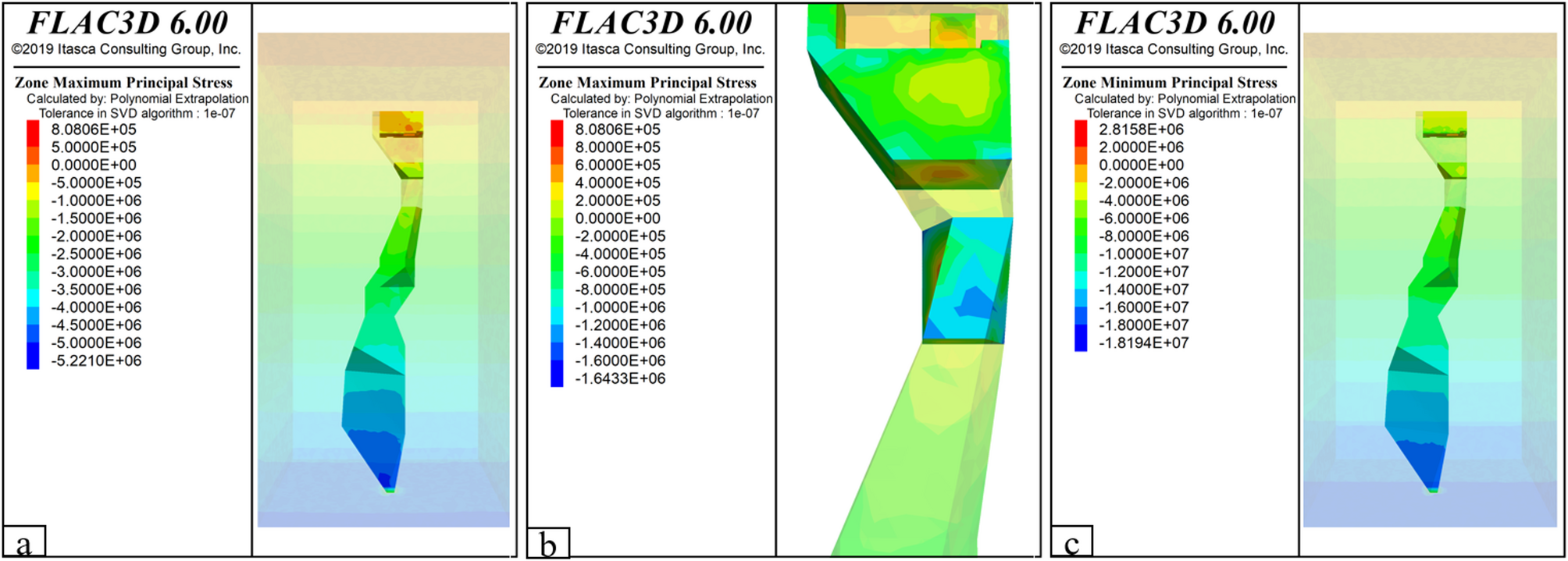

Fig. 8

Nephogram of principal stress in scheme 3: (a) simulation nephogram of maximum principal stress of filling body and ore body; (b) simulation nephogram of maximum principal stress of goaf wall; (c) simulation nephogram of minimum principal stress in goaf.
