Fig. 1
From: Modeling dysentery spread and the impact of public awareness on control dynamics

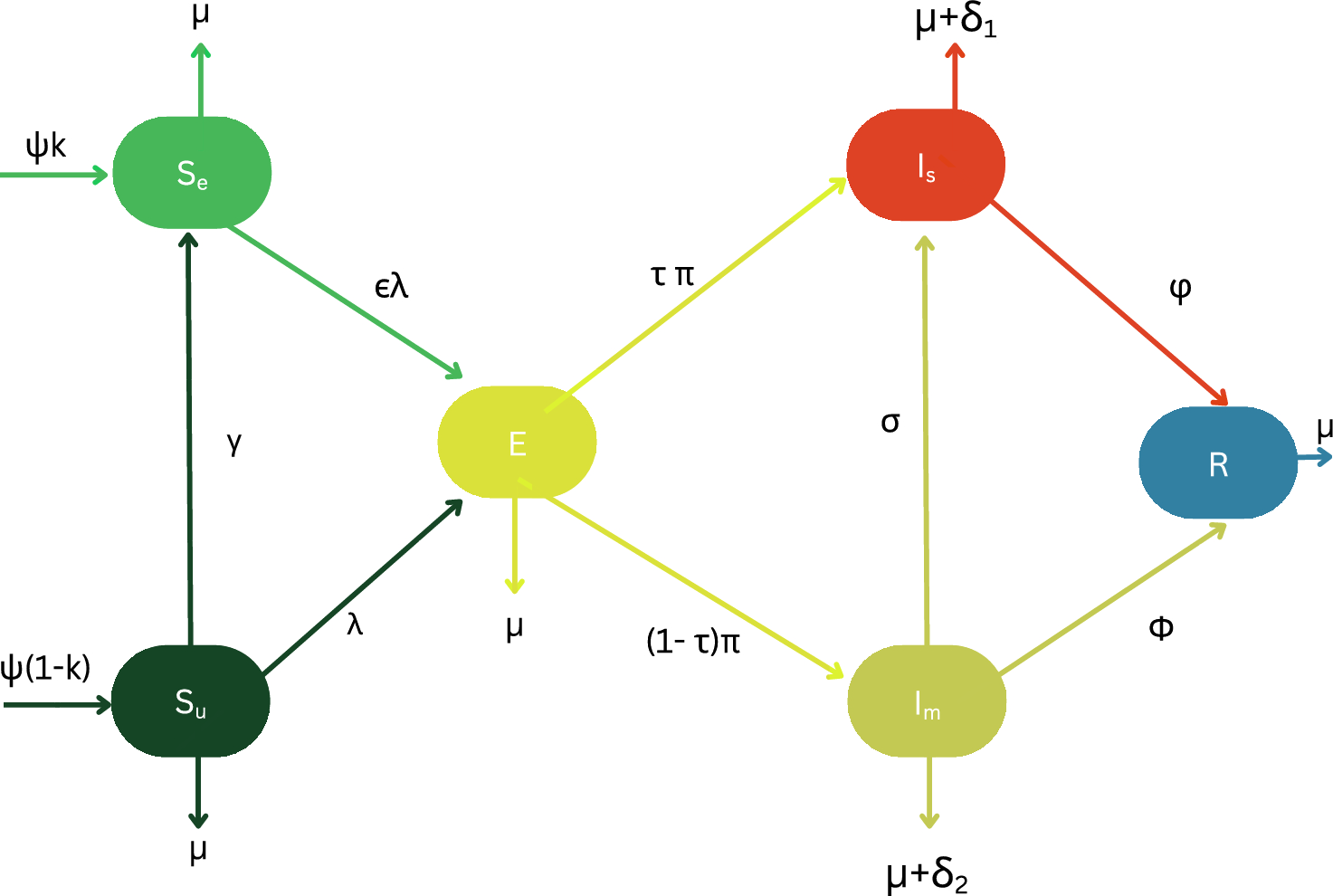

Schematic diagram illustrating the dynamics of the model. Solid arrows represent transitions between compartments, with accompanying expressions denoting the per capita flow rates.
