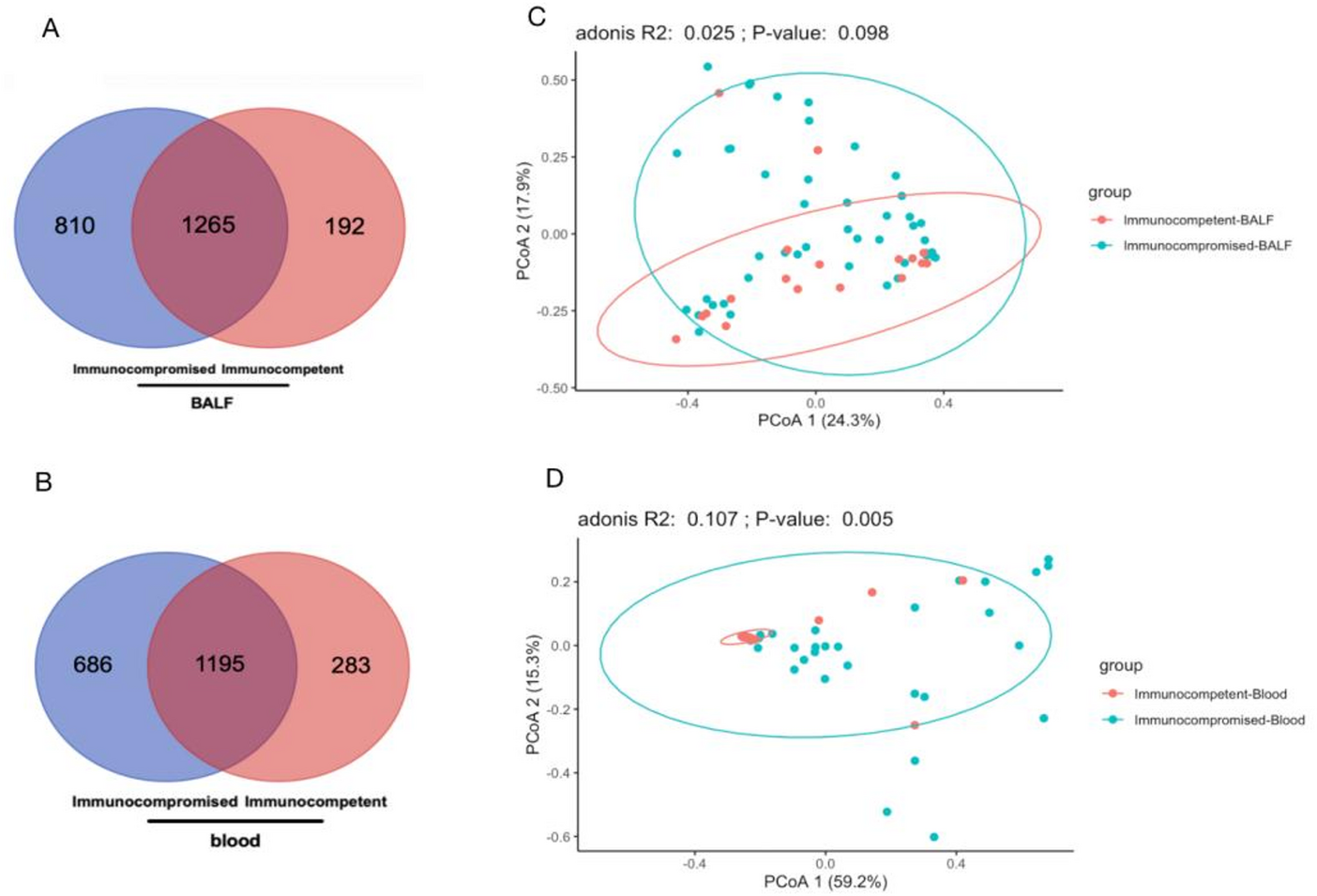

Summary of Taxonomic breakdown and Ī² diversity in TTV-infected patients. (A) The Venn diagram based on the microbial composition at genus level in BALF samples of immunocompromised (purple) and immunocompetent patients (pink). (B) The Venn diagram based on the microbial composition at genus level in blood samples of immunocompromised (purple) and immunocompetent patients (pink). (C) PCoA based on Bray-Curtis indices of blood samples immunocompromised (red dot) and immunocompetent patients (green dot). (D) PCoA based on Bray-Curtis indices of BALF samples immunocompromised (red dot) and immunocompetent patients (green dot).
