Fig. 5
From: MRI guided HIFU robotic system application in feasibility study for treating uterine fibroids

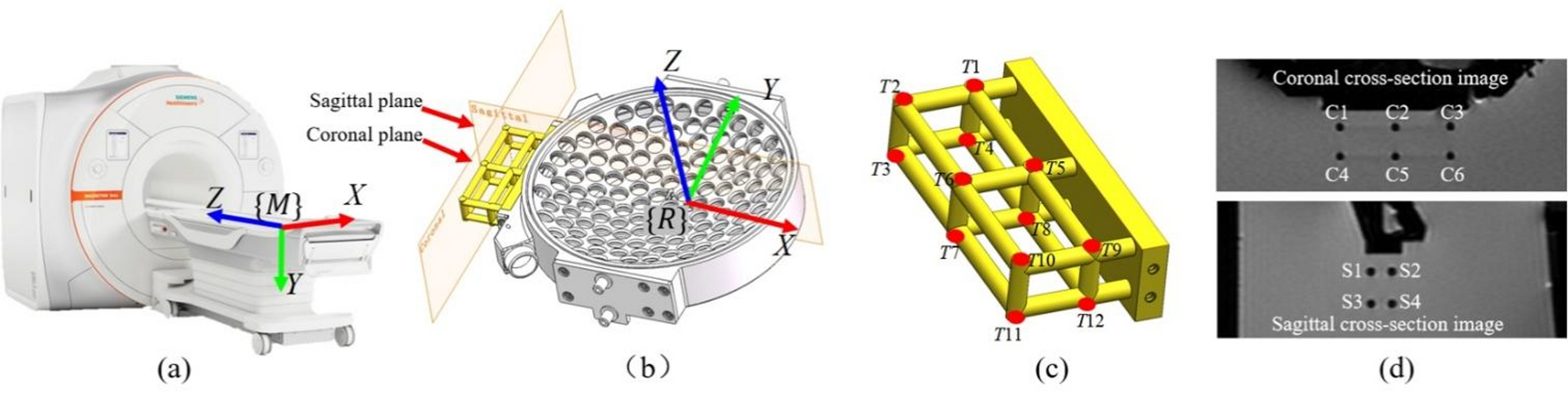

Registration overview. (a) Definition of MRI coordinate system. (b) Robot coordinate system on the probe. (c) The fiducial frame for registration. (d) Coronal and sagittal plane images during registration.
