Fig. 6
From: MRI guided HIFU robotic system application in feasibility study for treating uterine fibroids

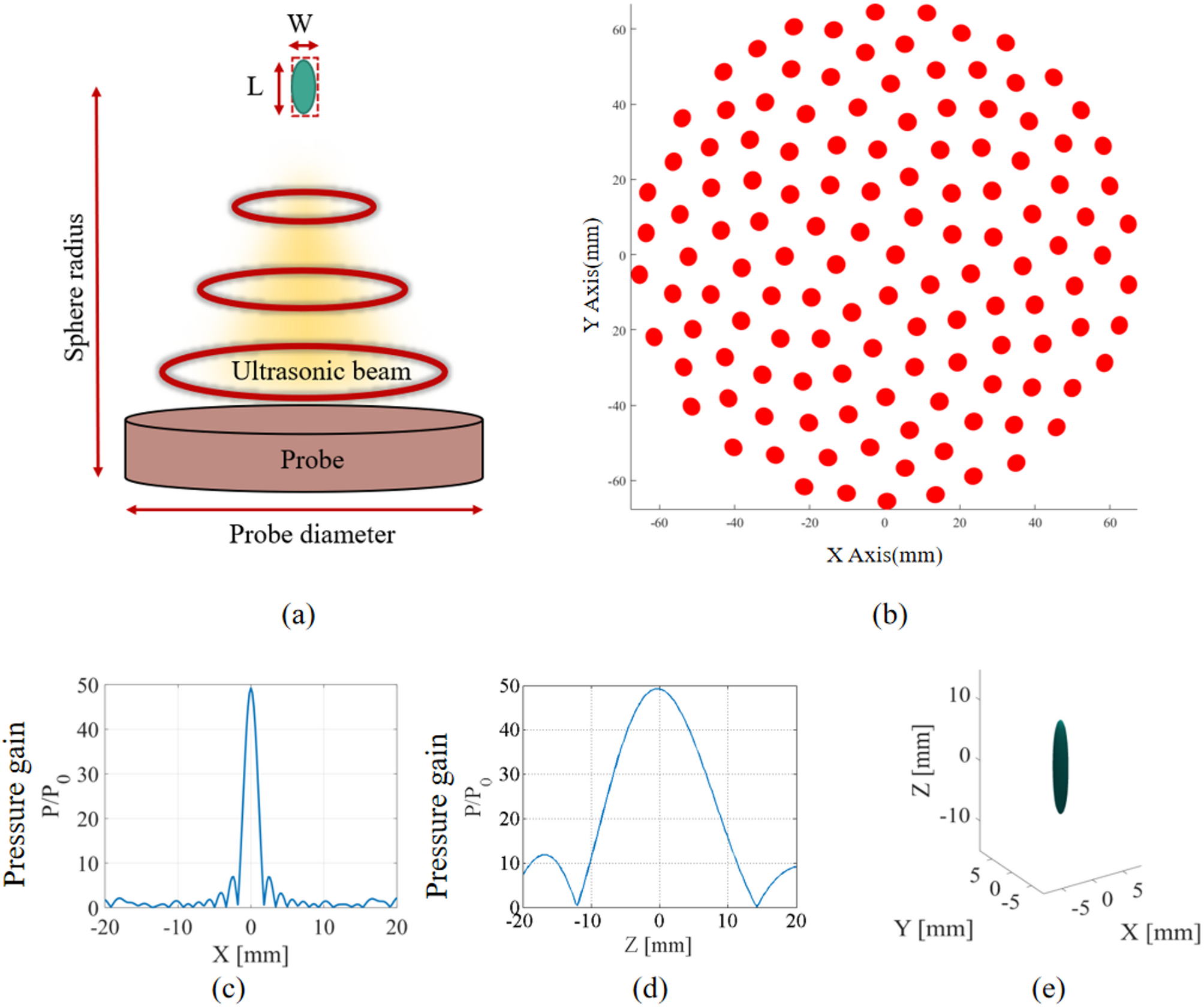

HIFU setup: (a) Probe geometric dimensions. (b) Distribution of the 128 array elements. (c) X-axis sound pressure gain; (d) Z-axis sound pressure gain; (e) Probe focal size.
