From: Explore the key genes and prognosis related to mitochondrial permeability transition driving necrosis gene in kidney renal clear cell carcinoma

Fig. 1

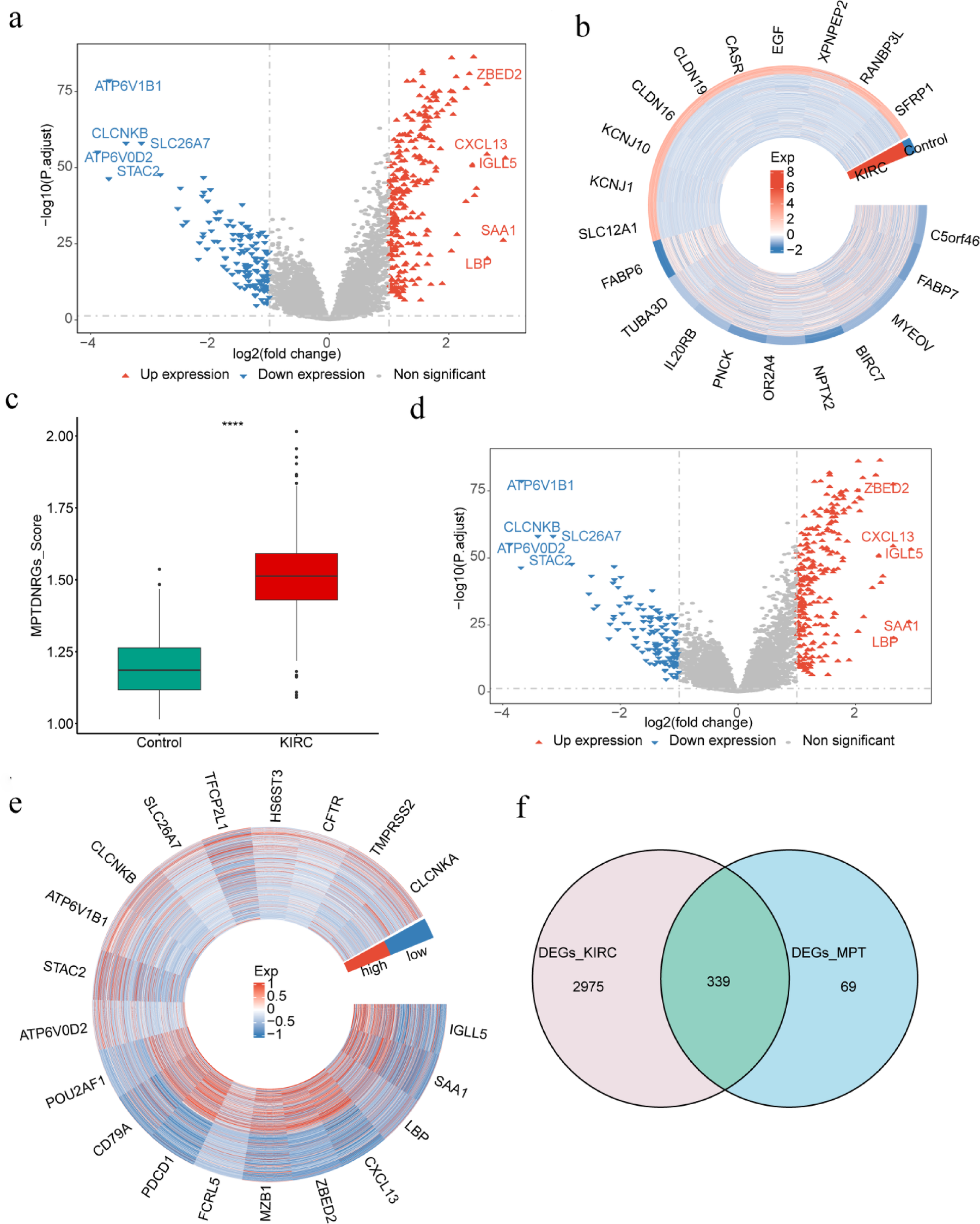

Screening of candidate MPT-driven necrosis-related genes in KIRC. a Volcano plot of DEGs-KIRC. Red upward-pointing triangles represent upregulated differentially expressed genes, blue downward-pointing triangles represent downregulated differentially expressed genes, and gray indicates non-significant genes. b Heatmap of DEGs-KIRC. Gene names are listed outside the circles. Colors indicate normalized gene expression levels, with red representing high expression and blue representing low expression. c MPTDNRGs scores were significant in control samples and KIRC samples discrepancy. ****P < 0.0001. d, e Volcano and heat maps of DEGs-MPT. f Venn map of candidate MPTDNRGs identification. KIRC kidney renal clear cell carcinoma, DEGs differentially expressed genes, MPTDNRGs MPT driven necrosis-related genes.
