From: Influence of inorganic scale formation on asphaltene behavior during water injection

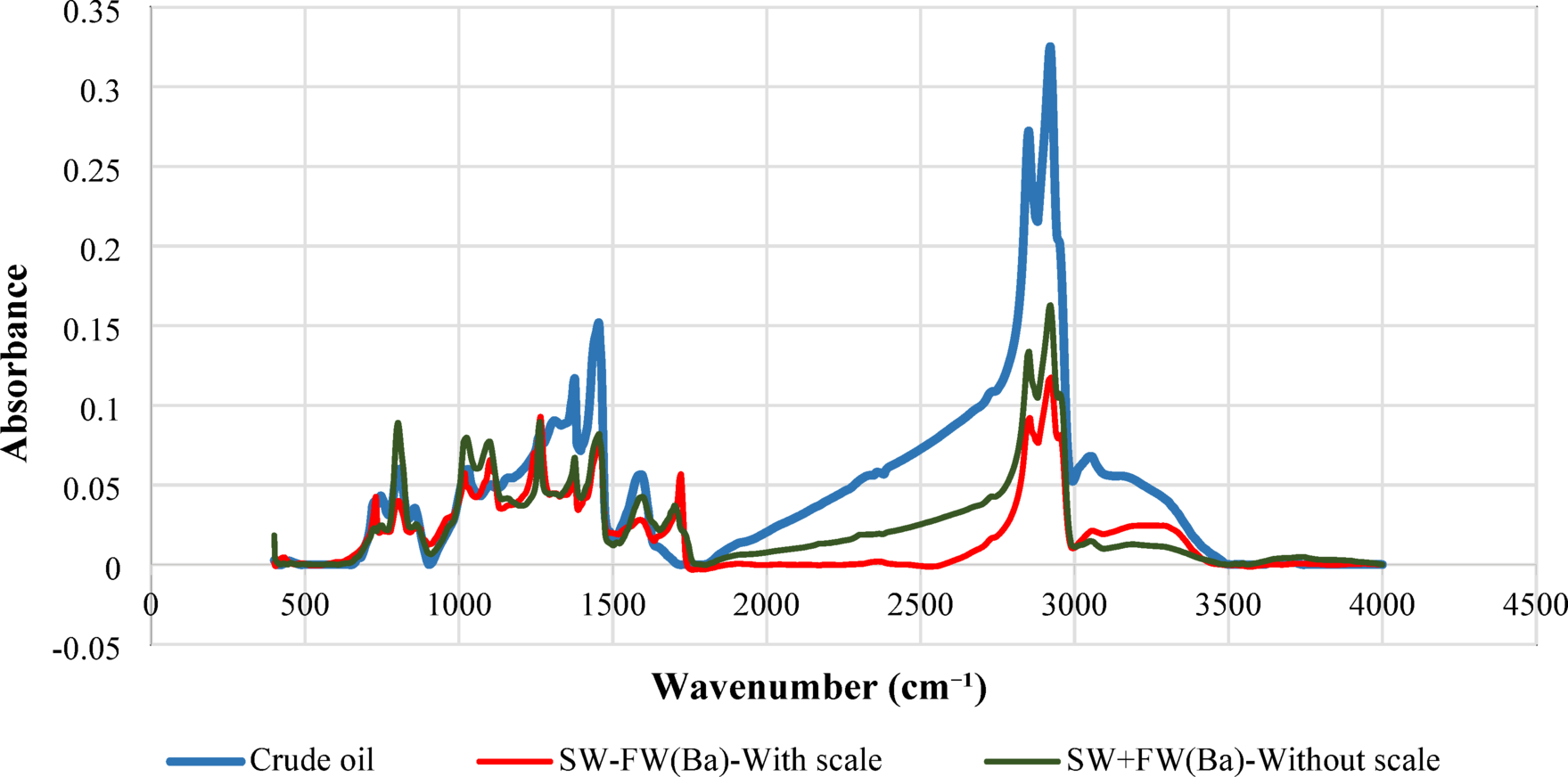

Comparative FTIR spectra of asphaltenes in crude oil and in samples treated with Ba2+-based FW and SW, under scale and non-scale conditions.
