Fig. 12
From: Influence of inorganic scale formation on asphaltene behavior during water injection

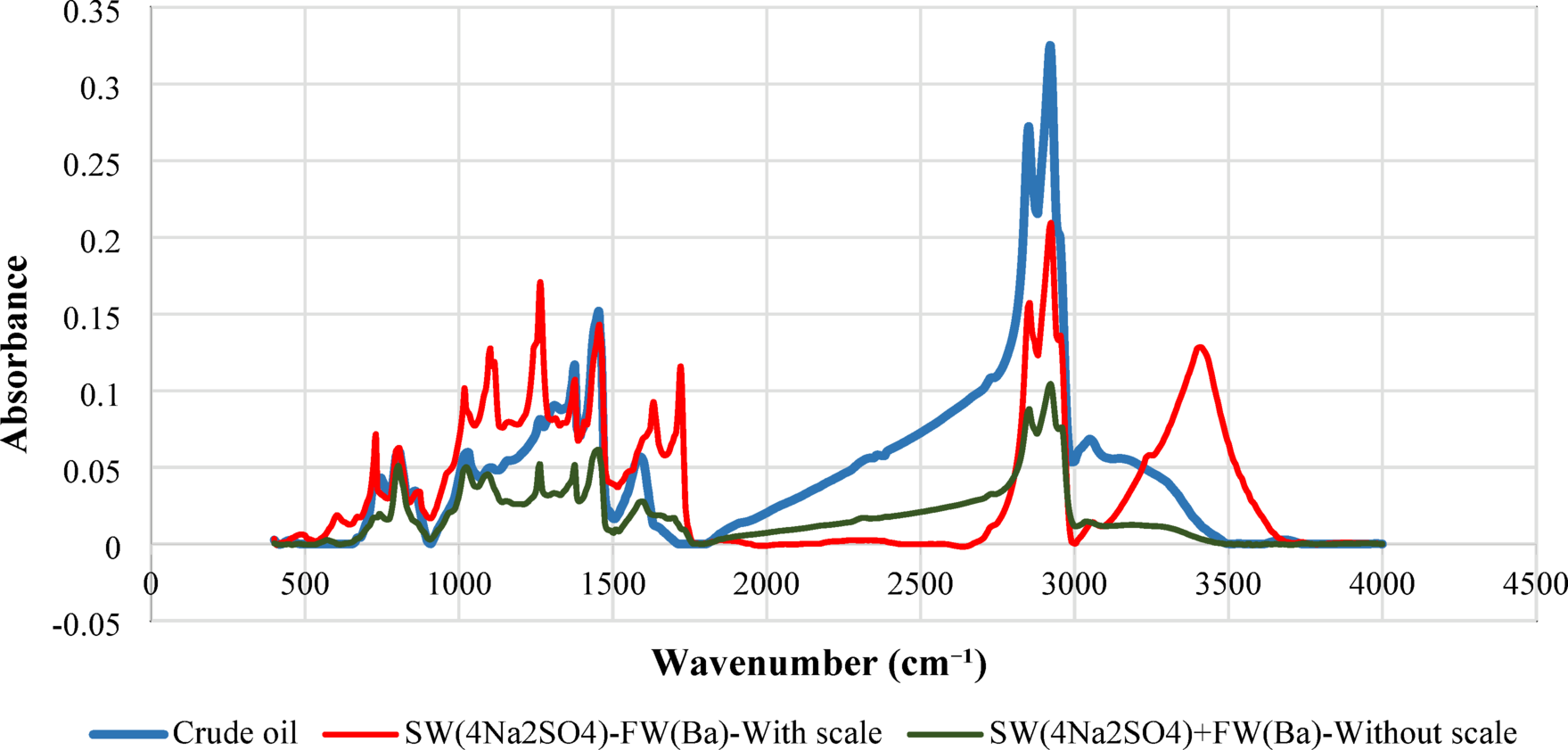

Overlay comparison of FTIR spectra for asphaltenes in crude oil, and after exposure to Ba2+-based FW and SW with 4 × Na2SO4, under both scale and non-scale conditions.
