Fig. 13
From: Influence of inorganic scale formation on asphaltene behavior during water injection

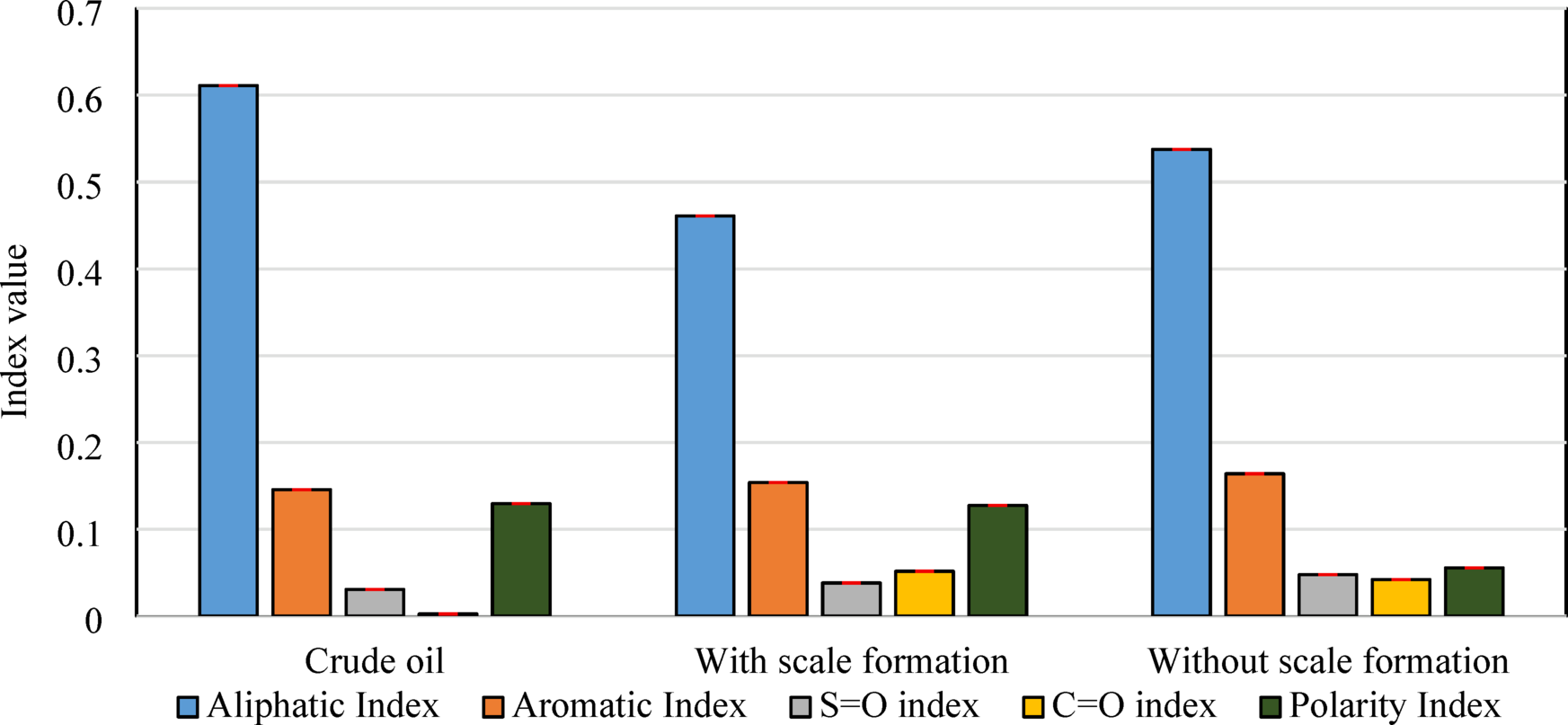

Comparison of FTIR-derived functional group indices (S = O, C = O, polar, aromatic, aliphatic) for asphaltenes in crude oil and after brine treatment with Ba2+ and 4 × Na2SO4, with and without scale formation.
