Fig. 18
From: Influence of inorganic scale formation on asphaltene behavior during water injection

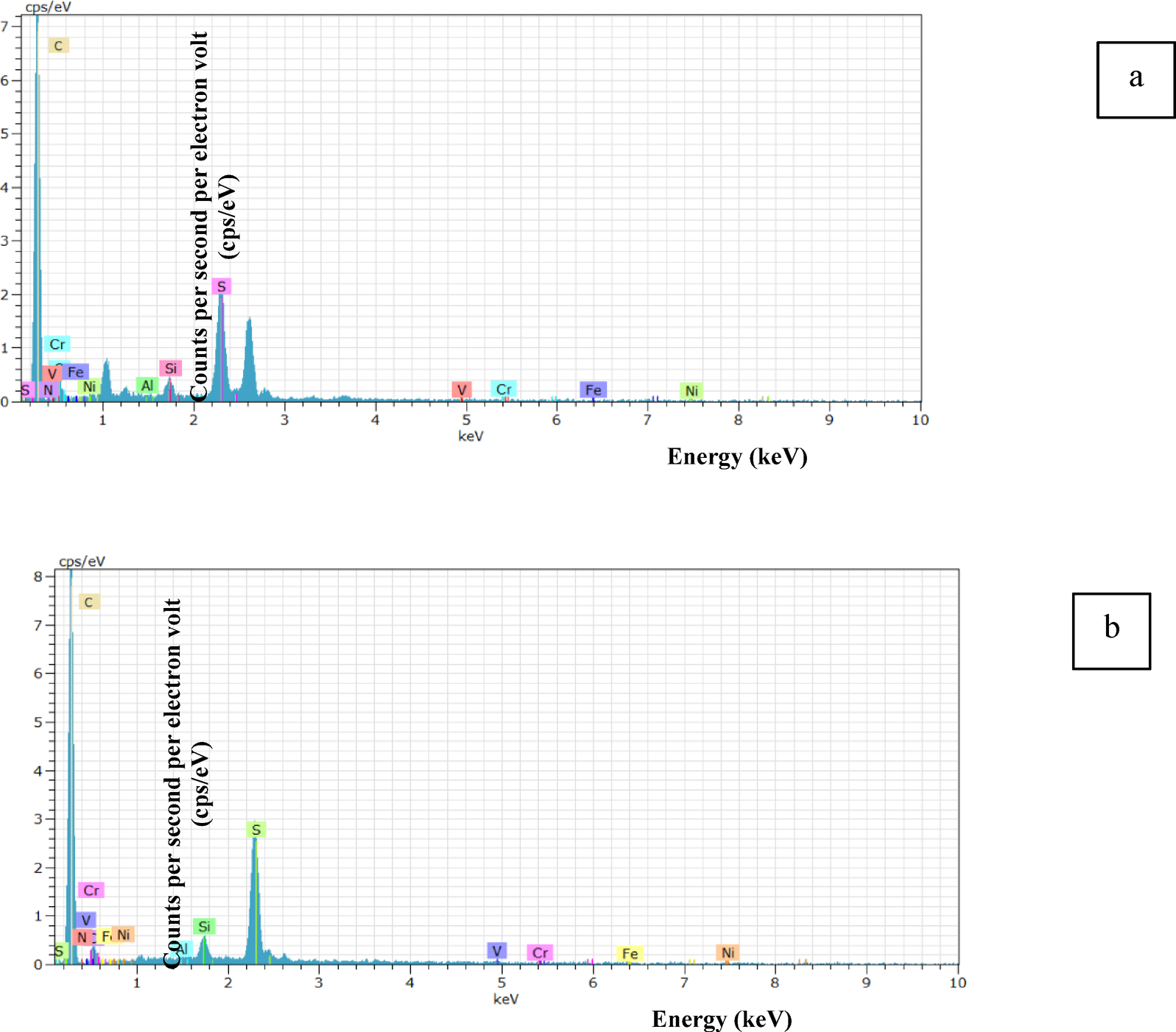

EDS spectra of asphaltenes extracted from crude oil in contact with Ba2+-based FW and SW containing 4 × Na2SO4: (a) under scale-forming conditions, (b) under non-scaling conditions.
