Fig. 5

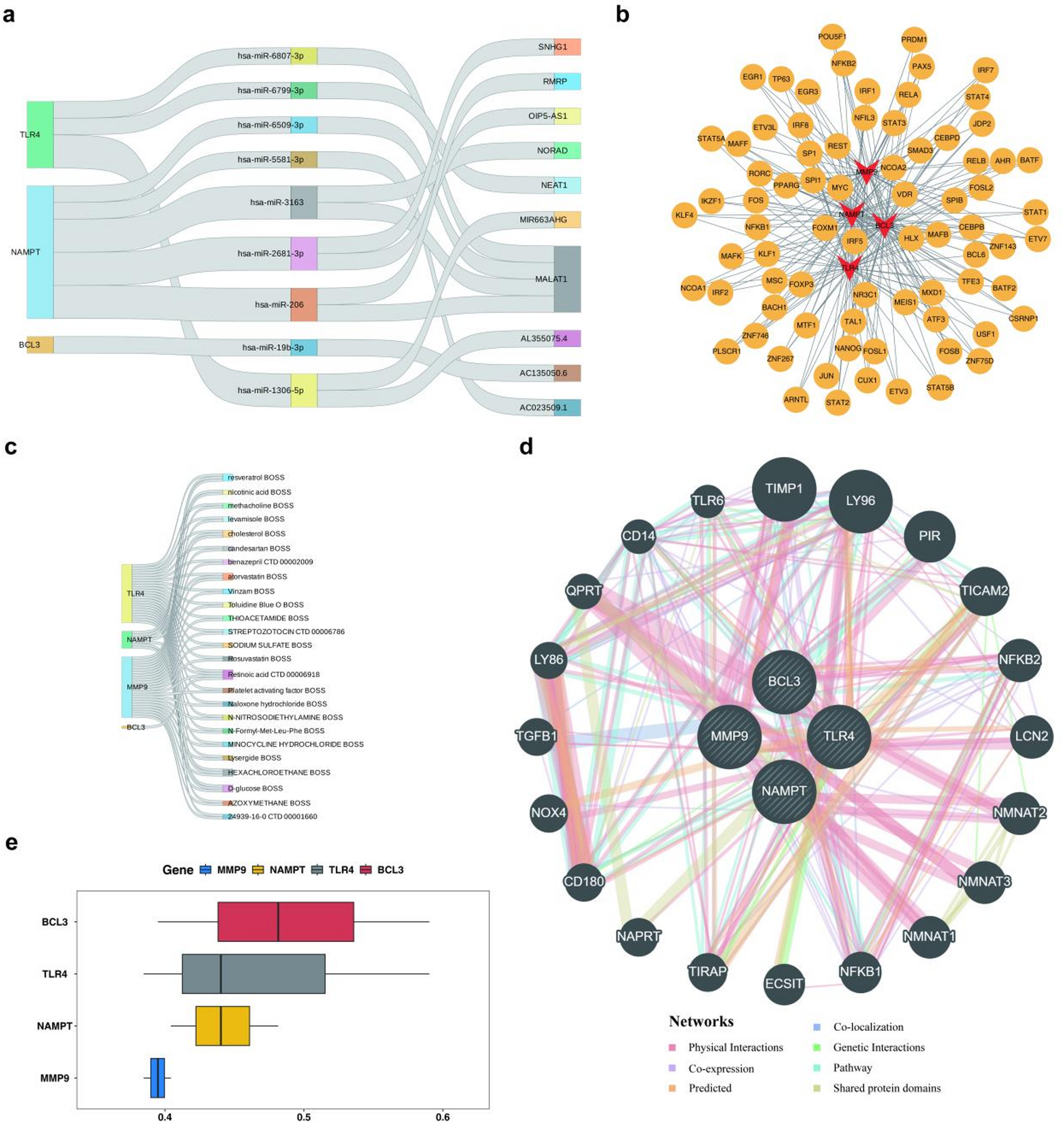

Prediction network diagrams of key gene-targeted drugs. (a) lncRNA-miRNA-mRNA regulatory network, with left nodes representing mRNAs, middle nodes representing miRNAs, and right nodes representing lncRNAs; (b) Transcription factor (TF) regulatory network of key genes, with red nodes representing key genes and yellow nodes representing TFs targeted by key genes; (c) Network diagram of drugs and key genes, with left nodes representing key genes and right nodes representing predicted drugs for key genes; (d) GeneMANIA network diagram, where different colors represented distinct functional interaction relationships; (e) Friends analysis of key genes, with the vertical axis representing key genes and the horizontal axis representing functional similarity coefficients.
