Fig. 4

From: Strongest constraint on the parastatistical Quon model with the VIP-2 measurements

Fig. 4The alternative text for this image may have been generated using AI.

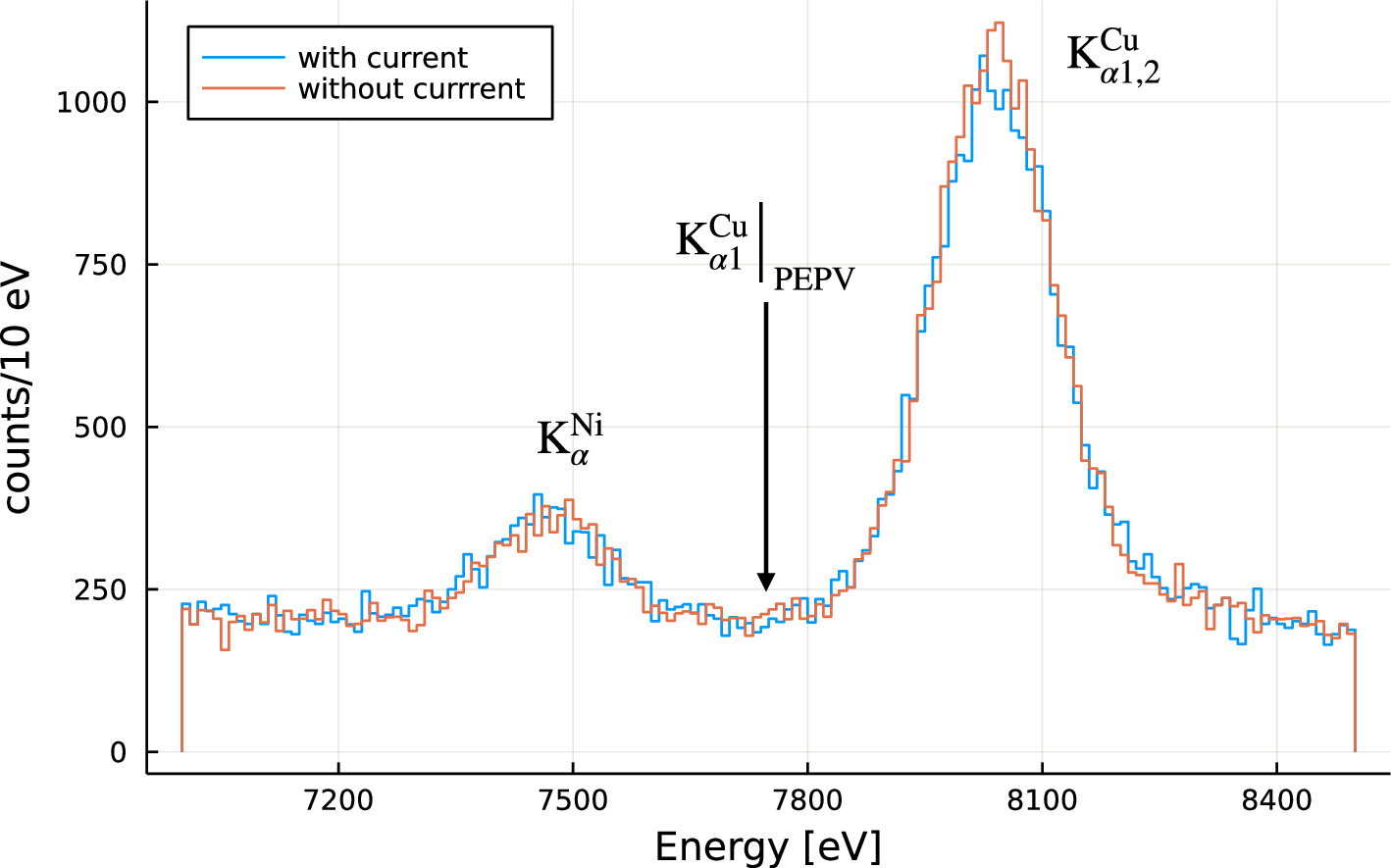

VIP-2 calibrated data in the region-of-interest 7000-8500 eV, of about two years of data taking (May 2019 to May 2021). The spectrum of the data acquired with a current circulating in the target is shown in blue. Data taken without current in the target, used as reference and control, shown in red. The copper and nickel K\({}_\alpha\) lines are visible in the spectra.
