From: Bayesian joint inversion of surface nuclear magnetic resonance and transient electromagnetic data for groundwater investigation in the Beishan area, Inner Mongolia, China

Fig. 10

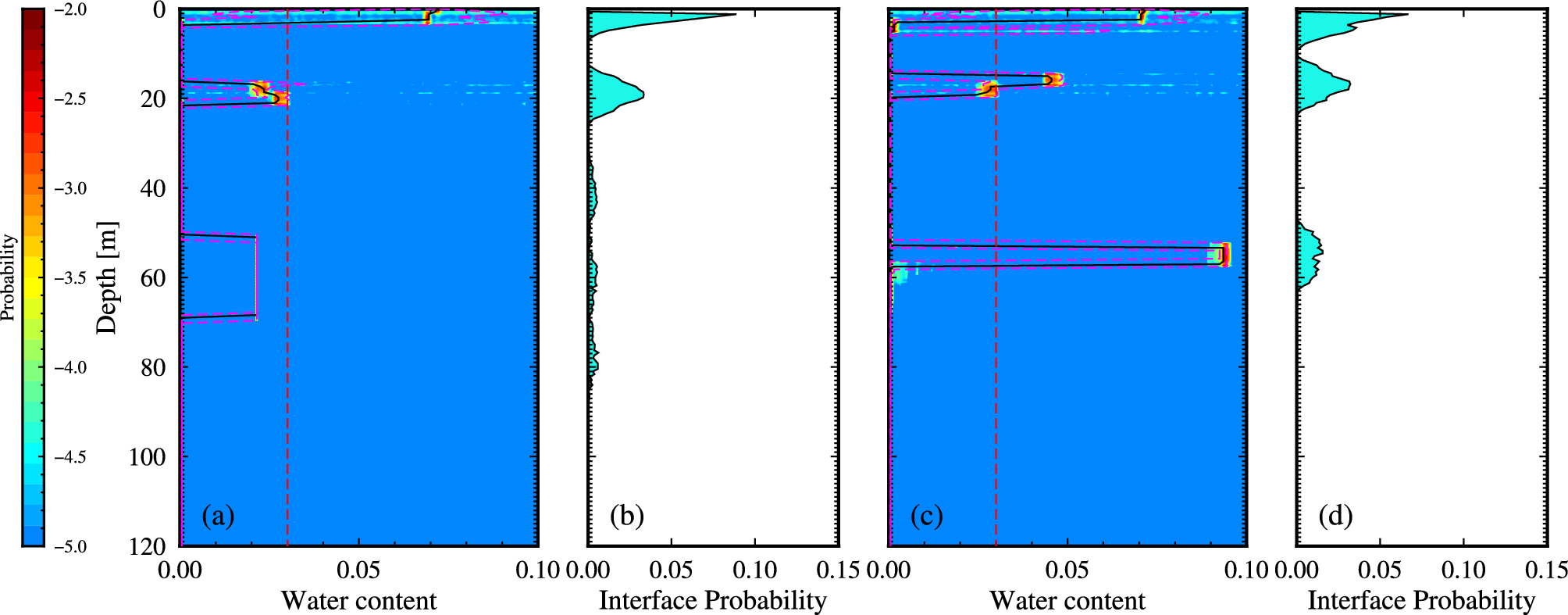

Posterior probability distributions for the ZK1 data (a,b) Results from the individual SNMR Bayesian inversion (c,d) Results from the joint SNMR-TEM Bayesian inversion. The black solid line is the posterior mean model, while the magenta dashed lines denote the 5th and 95th percentiles of the posterior PDF.
