From: Archived multi-objective simulated annealing transient electromagnetic inversion

Fig. 6

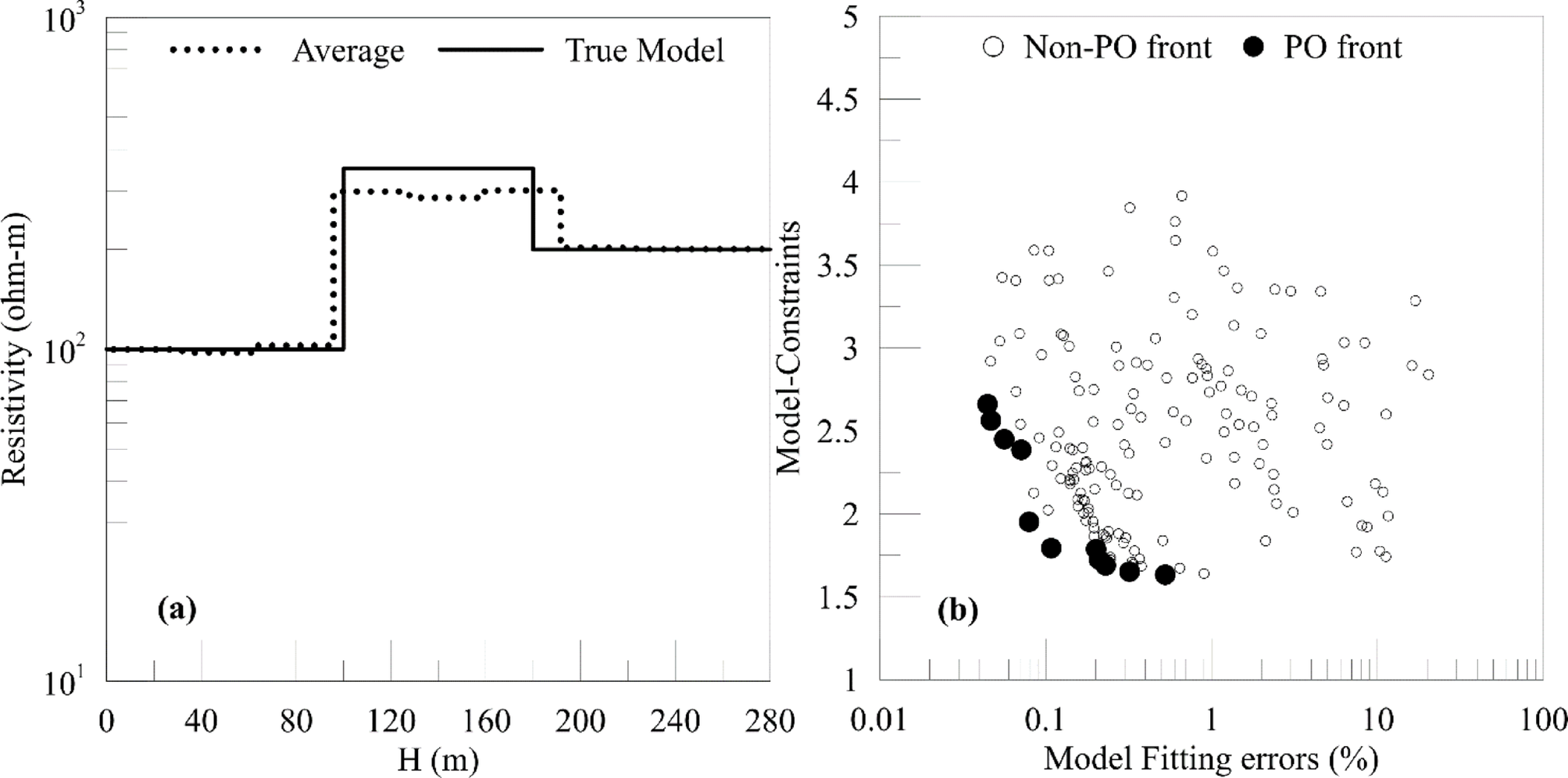

(a) Inversion result and (b) the distribution of archived points’ set for Model #2, a three-layered model with high resistivity in the middle. Model details and inversion parameters are listed in Table 1. In (b), the solid dots correspond to the PO front while the hollow dots are Non-PO front but once archived. In (a), the dot line is the average inversion result of three best solutions with minimum model-fitting errors in PO front. The inverted result is in good agreement with the true model in solid line.
