From: Differential gene expression analysis of Dohne Merino sheep naturally infected with Haemonchus contortus

Fig. 2

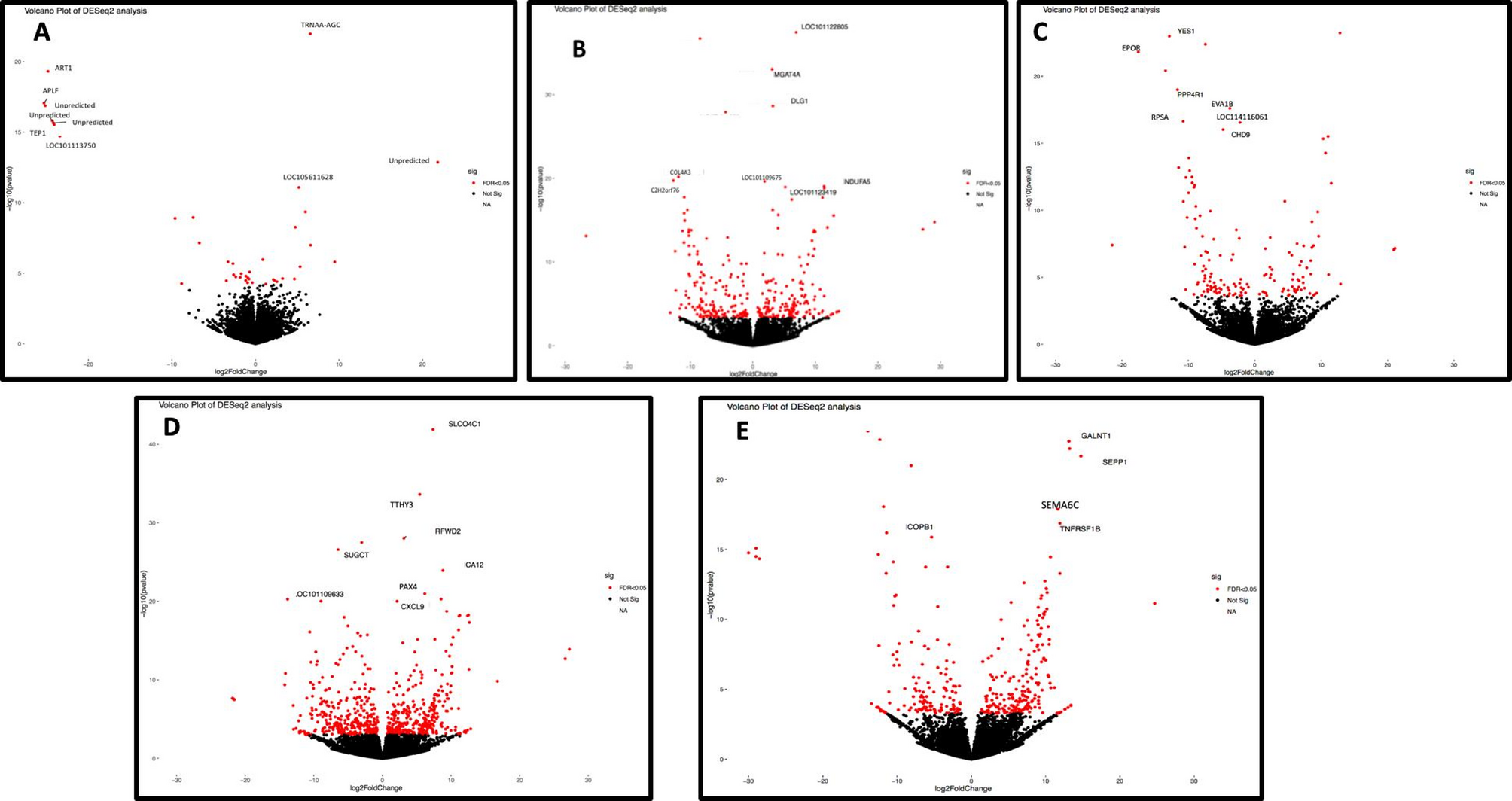

Volcano plot showing genes with significant differences in the relative abundance of study animals. The dot colour denotes significantly differentially expressed (red dot) at FDR < 0.05, non-significant (black dot), down-regulated (< 0) and up-regulated (> 0) with (A) Animals infected with H, contortus (B) ileum, (C) abomasum, (D) jejunum and (E) duodenum.
