Introduction

Agricultural drought (AD) is a recurring, long-lasting and unstructured natural disaster in all lands of the world1,2,3, which is the result of many factors, such as hydrological conditions, meteorological conditions, crop layouts, crop varieties and growth conditions, farming system and tillage level4. Since the beginning of the 21 st century, the average annual grain loss due to drought in China is 37.284 million tons, about twice the grain loss in the 1980 s, accounting for 7.7% of the total grain production in the same period5. Therefore, understanding and evaluating AD is of great significance to improve the ability of drought resistance and disaster reduction, ensure food security, and promote the sustainable development of social economy and environment6,7,8,9,10.

Soil moisture is widely considered to be an important indicator for monitoring AD, as water stress on crops is closely related to soil moisture content11,12,13,14. The essence of AD is that soil water shortage cannot meet the water demand of vegetation roots15,16. The traditional AD monitoring method mainly comes from the station data17,18, which is difficult to realize the macro dynamic monitoring of AD due to its low efficiency and lack of representativeness10,18. Compared with traditional AD monitoring methods, remote sensing monitoring methods can realize large-area and dynamic monitoring by using the spectral, spatial and azimuth information of surface objects, and can also dynamically monitor soil moisture content19,20,21. While recent reanalysis and remote sensing soil moisture data are typically available at coarse resolution and remote sensing data are limited to surface soil19,22,23,24,25,26, high-quality gridded soil moisture products are essential for many Earth system science applications27,28,29,30.

AD monitoring indices based on soil moisture can be classified into two categories: The first type of index requires long-term soil moisture data to determine the extent to which the current soil moisture deviates from the historical normal range, such as standardized soil moisture index (SSMI), soil moisture anomaly index (SMAI), soil moisture percentile (SMP). Such indicators only need soil moisture data, and the monitoring results in different regions are comparable. The disadvantage is that the time series is required to be long enough. The second category realizes AD monitoring based on soil moisture and soil hydraulics parameters, such as soil moisture index (SMI) and soil water deficit index (SWDI)31. The advantage of this type of index is that from the perspective of soil available water, the influence of soil properties in different regions on water deficit is considered. However, for regional AD monitoring, it is difficult to accurately obtain soil attribute parameters in different regions. From the perspective of AD monitoring, SWDI considers the relationship between a plant physiological state and soil water and is more suitable for monitoring AD. Previous studies have shown that SWDI can well reflect the relationship between soil moisture and AD at both basin scale and regional scale and is considered as a potential indicator for AD monitoring32,33,34,35,36.

The spatial distribution of soil moisture varies greatly due to the diversity of soil types, land use/land cover, topography and soil textures. With the deepening influence of climate change and human activities, drought appears to be widespread and frequent. Land use/cover change, as a man-made “system disturbance”, is one of the main driving factors affecting the spatio-temporal evolution of drought events in river basins37,38. In addition, soil texture is closely related to soil water content. The water capacity of different soil textures in farmland is different, and the effective water content of soil and plants is also different. However, how different soil textures affect the evolution of AD is closely related to the response of soil water to AD under different soil textures39. Therefore, it is necessary to systematically study the effects of land use types and soil textures on the evolution of AD in semi-arid areas.

The purpose of this study is to evaluate the impacts of land use types and soil textures on AD in ZRB, by using the widely used and effective SWDI. Specifically, the objectives of this study are: (1) to investigate the feasibility of SWDI in a semi-arid area; (2) to evaluate the impacts of different land use types on AD; and (3) to evaluate the impacts of different soil textures on AD.

In the following, Sect. “Materials and methods” describes the materials and methods. The impacts of different land use types and soil textures on AD are presented in Sect. “Study area”, with a specific focus on comparing average SWDI time series and violin graphs of drought characteristics of AD. Discussion is presented in Sect. “Data”, followed by the conclusions summarized in Sect. “Methodology”.

Materials and methods

Study area

As a subbasin of the Haihe River Basin, the Ziya River Basin (ZRB, 36° 3’ N to 39° 5’ N, 112° 20’ E to 116° 0’ E) is situated in a semi-arid and warm temperate continental monsoon climate zone and covers 46,328 km2. The upper reaches of the basin are located at the eastern foot of the Mountains, where the terrain uplift is relatively obvious, precipitation is relatively abundant, and the temperature is relatively low, showing certain characteristics of mountain climate. The terrain in the middle and lower reaches of the plain is flat, with slightly less precipitation, higher temperatures, more vigorous evaporation and more prominent continental climate characteristics (Fig. 1).

Fig. 1
Fig. 1
Full size image

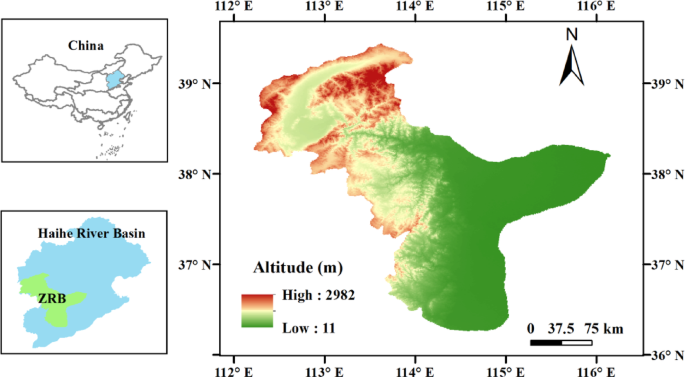

Map showing the location of Ziya River Basin (ZRB). The figure is created in ArcMap 10.3 (https://desktop.arcgis.com/zh-cn/desktop/index.html).

In recent years, it has been observed that land use types have not changed significantly over ZRB40. For purposes of this study, the land use types in 2010 were chosen in order to better match the data period (2000–2018, see Sect. “Data”. Data). Figure 2 shows the spatial distribution of (a) land use and (b) soil textures in ZRB. From Fig. 2a, vegetation covers approximately 90% of the basin area (49.86% of Cropland, 15.78% of Forest and 24.38% of Grassland) and there is a very limited amount of Unused land and Waters. Among the soil types (Fig. 2b), Loam accounts for a large proportion (75.98%), Sand represents a small percentage (21.76%), and Clay is the smallest (2.26%).

Fig. 2
Fig. 2
Full size image

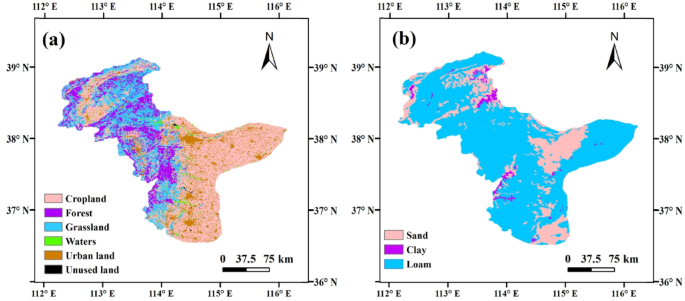

Spatial distributions of (a) land use and (b) soil texture and the corresponding site locations in Ziya River Basin. The figure is created in ArcMap 10.3 (https://desktop.arcgis.com/zh-cn/desktop/index.html).

Data

Digital elevation model (DEM), land use, soil texture, precipitation, and soil moisture data are the main data sources in this paper. We used the high spatial-resolution (1 km) precipitation data from a long-term (1901–2021) dataset produced by Peng et al. (2020), which is generated in China by Delta spatial downscaling scheme based on global 0.5° climate data set published by Climatic Research Unit and global high-resolution climate data set published by WorldClim database (website address: https://worldclim.org/). DEM with a resolution of 30 m was downloaded from the Geospatial Data Cloud website (http://www.gscloud.cn/search); the land use data in 2010 come from http://www.resdc.cn; Chinese soil data set-based Harmonized World Soil Database (version 1.2) and the monthly rainfall data with a resolution of 1 km from 1961 to 2018 come from http://www.tpdc.ac.cn/zh-hans/; the SMCI1.0 (Soil Moisture of China by in situ data, version 1.0) with a resolution of 1 km from 2000 to 2020 was downloaded from https://doi.org/10.11888/Terre.tpdc.272415. In order to match the research period of all data, 2000–2018 is selected as the study period in this paper.

Methodology

Soil water deficit index

Soil water deficit index (SWDI) is an effective indicator of agriculture drought that quantifies soil moisture deficits associated with drought conditions. According to the Eq. 1, SWDI can be calculated by combining land surface soil moisture and soil water parameters as follows:

$$SWDI=(\frac{{\theta - 0.8 \times {\theta _{FC}}}}{{{\theta _{AWC}}}}) \times 10$$
(1)

where \(\theta\) determines the land surface soil moisture (m3/m3); \({\theta _{FC}}\) and \({\theta _{AWC}}\) represent the soil moisture (m3/m3) at field capacity (FC) and at available water capacity (AWC), respectively; \({\theta _{AWC}}\) is calculated by subtracting \({\theta _{FC}}\) from soil moisture at the wilting point (\({\theta _{WP}}\)), as shown in Eq. 2:

$${\theta _{AWC}}={\theta _{FC}} - {\theta _{WP}}$$
(2)

The reduction factor is set as 0.8 in this study, indicating that drought occurs when \(\theta\) is less than 0.8 times \({\theta _{FC}}\). Referring to the findings of the following relevant studies, Pan et al. (2014) studied the effect of drought on six plant species on the Tibetan Plateau, they determined the normal level of soil moisture to be more than 0.8 times. According to Wu (2013), the photosynthetic physiological response of three tree species peaks at 0.8 times \({\theta _{FC}}\) and declines when soil moisture decreases. A final step is to multiply the index by 10 in order to make the value agronomically relevant in terms of soil water availability.

In the presence of a positive SWDI, the soil moisture is greater than 0.8 times \({\theta _{FC}}\), indicating that there is no AD. Thus, a threshold of 0 is considered to be the point at which drought conditions begin and end. The SWDI was calculated at a monthly time scale, and an overview of the drought classification was provided in Table 110,41,42.

Table 1 Drought categories in accordance with the values of SPI and SWDI.
Full size table

Note: Here SPI, SWDI represent standardized precipitation index and soil water deficit index.

Standardized precipitation index

SPI is a commonly used metric for assessing meteorological drought (MD)43,44,45,46 on a range of timescales, proposed by McKee et al. (1993). In this study, the SPI and SWDI are compared to analyze the relationships among MD and AD. The gamma probability density function was used to fit precipitation data as follows47,48,49:

$$g(x)=\frac{1}{{{\beta ^\alpha } \cdot {{\varvec{\Gamma}}}(\alpha )}}{x^{\alpha - 1}} \cdot {e^{ - \frac{x}{\beta }}},\quad x>0$$

where α and β (> 0) are the shape and scale parameters, respectively; and x (> 0) is the amount of monthly precipitation.

Water shortage in vadose zone

The vadose zone is the area where atmospheric water and surface water are connected with groundwater and exchange water. It is a complex system of rock and soil particles, water and air. The vadose zone has the ability to absorb water, retain water and transfer water. For ease of calculation, the water shortage of the vadose zone is defined as follows:

$$V={\theta _{FC}} - {\theta _i}$$
(3)

where V is the water shortage of the vadose zone of a certain soil moisture grid, %; \({\theta _{\text{i}}}\) is the initial soil moisture content, %.

Drought characteristics

Drought characteristics, including duration (D), and severity (S) were extracted by using the Runs theory50. D is the number of consecutive months with both SPI < −0.546,51 and SWDI32 < 0; S is the summation of the absolute values of drought indices for a drought event. To analyze the regional impact of drought, we also use the ratio of drought areas (RDA), which is the percentage of grids where drought occurs compared to the total number of grids in the region. The higher the RDA, the wider the area affected by the drought.

Results

Temporal variations of precipitation and soil moisture

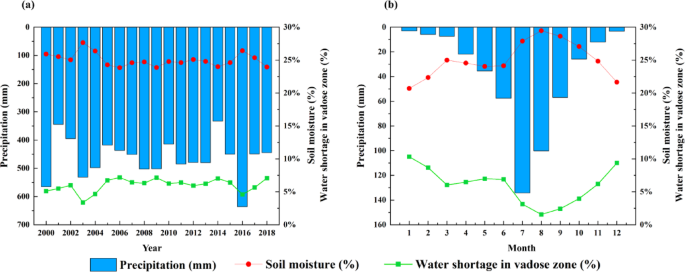

In ZRB, annual average soil moisture and annual precipitation show similar trends, with soil moisture increasing as precipitation increases (Fig. 3a). In contrast, the water shortage in the vadose zone decreases with an increase in precipitation. There is an average annual precipitation of 463.95 mm in the watershed; however, in 2001, 2002, and 2014 the annual precipitation was less than 400 mm, and the minimum value of 332.85 mm appeared in 2014. Statistically, the soil moisture of the watershed is 25.03% on average, while 2006, 2009, 2014 and 2018 are among the years with reduced soil moisture. In the vadose zone of the basin, the average annual water shortage is 6.0%; 2014 is the year that has the highest value of water shortage, which is 7.04%. By analyzing the above information, it is evident that the ZRB is in a situation where soil moisture is scarce in 2014.

Fig. 3
Fig. 3
Full size image

Temporal variations of precipitation, soil moisture and water shortage in vadose zone at (a) annual and (b) monthly scales of Ziya River Basin.

Similarly, the interannual distribution of soil moisture and precipitation in the basin is well-consistent, as monthly soil moisture increases with increased precipitation (Fig. 3b). However, as depicted in Fig. 3b, precipitation has increased from January to July, but soil moisture decreased slightly from March to June, and it did not increase until July, indicating that soil moisture has a lag during spring (March to June). There is an uneven distribution of precipitation throughout the year in ZRB, with low precipitation recorded in both October-December and January-April of the following year, and the lowest precipitation recorded in January, only 3.04 mm. In winter, soil moisture is less than 23%, and the minimum value is 20.69% in January, which coincides with the month of the minimum precipitation. It is noticeable that the vadose zone exhibits a water shortage of more than 8% between January and February as well as December of each year, with the maximum showing up in January at 10.33%, followed by a shortage of 8.68% and 9.38% in December and February. Overall, winter is the most prominent season when soil moisture levels are low in ZRB.

Investigation into the feasibility of SWDI in the study area

The Run theory is used to identify drought events of MD and AD, and the accuracy of SWDI at the monthly scale is verified by comparing the drought characteristics of the two. Table 2 represents the drought characteristics sequences for MD and AD in ZRB from 2000 to 2018, and the most significant drought events with a long duration and high severity are indicated in red color. As shown in Table 2, it is believed that the time at which AD began and ended is almost in accordance with the time at which MD began and ended, based on the dates from the two sources. The following four typical drought events are taken as examples. In 2005–2006, MD lasted for 20 months with S of 6.54, while AD had a shorter D of 11 months with a higher S of 8.3. In 2008–2009 and 2010–2011, AD and MD are both beginning and ending at the same time, however, AD exhibits a more severe S (3.35–4.15) than MD (9.08–10.19). Additionally, there have been three small drought events for MD in 2013–2015 resulting in the longest and most severe drought event for AD over the entire study period.

Table 2 The drought characteristics sequences of MD and AD in Ziya river basin during 2000–2018.
Full size table

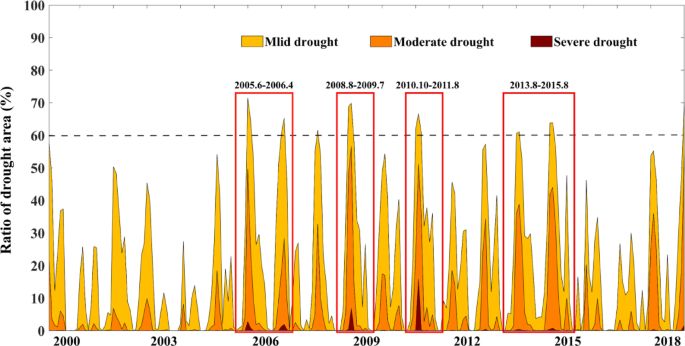

Figure 4 illustrates the temporal variations of RDA under different levels (mild, moderate and severe drought) of AD in ZRB. The extraordinary droughts of 2005–2006, 2008–2009, 2010–2011 and 2013–2015 affected a larger geographic area (RDA > 60%) and had more serious consequences, which is consistent with the findings of Table 2. During 2000–2018, AD was mainly associated with mild droughts, and the number of moderate drought events has increased significantly since 2004, indicating that AD has gradually evolved from mild to moderate in recent years although some mitigation of droughts in 2016–2017. Hence, these analyses suggest that the SWDI calculated in the ZRB is reliable and accurately reflects the soil water balance. It should be noted that AD has become increasingly serious in ZRB in recent years, and more early warnings of drought are required.

Fig. 4
Fig. 4
Full size image

Temporal variations of ratio of drought areas under different levels of agricultural drought in Ziya River Basin.

Impacts of land use types on AD

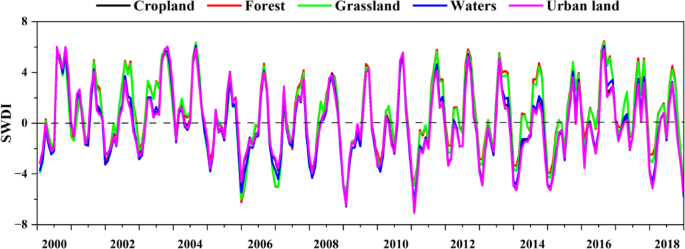

Figure 5 shows the average SWDI time series during 2000–2018 for each land use type (Cropland, Forest, Grassland, Waters and Urban land, respectively) in ZRB. Generally, there is a similar tendency of AD across different land use types during 2000–2018 (Fig. 5). Also, severe drought events occurred more frequently for all land use types in 2004–2015 with lower SWDI values (more negative), which is consistent with the findings of Fig. 4. As a general rule, more severe droughts can be observed in Cropland, Waters and Urban land than other land use types throughout the entire period. In contrast, it appears that Forest and Grassland are more susceptible to wet events and light droughts with high SWDI, as demonstrated by the years 2002–2003, 2011–2012, 2014 and 2017, although they may suffer from severe droughts in certain cases (such as in 2006). This is possibly due to the fact that Forest and Grassland have higher drought resistance and toughness.

Fig. 5
Fig. 5
Full size image

Average soil water deficit index (SWDI) timeseries during 2000–2018 for each type of land use in Ziya River Basin.

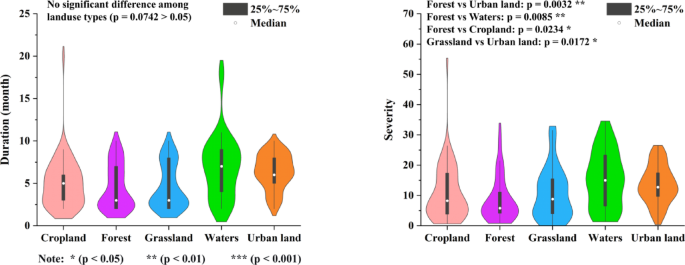

For further investigation of the differences in drought characteristics (D and S) across different land use types (Fig. 6), violin graphs were conducted during 2000–2018 over ZRB. The quantiles range from 25% to 75%, and the white circles represent the mean values. Generally, the mean values of D (5.81) and S (11.72) identified by Urban land are highest than other land use types, followed by Cropland (D, 5.41; S, 11) and Waters (D, 5.39; S, 11.57). Forest and Grassland show the lowest D (4.12 and 3.92, respectively) and S (7.76 and 7.93, respectively) over ZRB, leading to the conclusion that Forest and Grassland exhibit more light droughts with shorter D and lower S due to their superior water holding capacity. Conversely, Cropland, Waters, and Urban land are prone to severe droughts, which may be caused by increased evaporation and human activity.

Fig. 6
Fig. 6
Full size image

Violin graphs of duration and severity of agricultural drought for different land use: Cropland, Forest, Grassland, Waters and Urban land, respectively.

Impacts of soil textures on AD

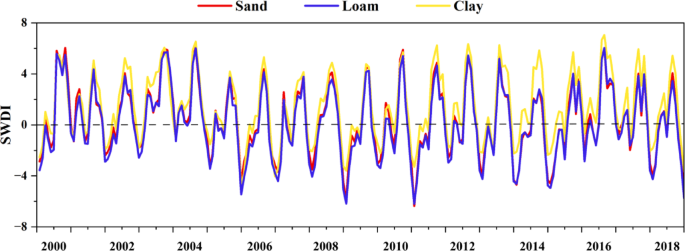

Figure 7 shows the average SWDI time series of AD during 2000–2018 for each type (Sand, Clay, and Loam, respectively) of soil textures in ZRB. Generally, it has been noted that all types of soil textures experienced similar changes in AD during the entire period (Fig. 7). Similarly, it can be found that severe drought events were more frequent for all types of soil textures between 2004 and 2015, and SWDI values were lower (more negative) in most cases. Clay is more likely to experience wet events as well as light droughts with a larger SWDI, whereas the most severe droughts have occurred in Sand and Loam (e.g., 2009, 2011, 2013, 2015, and 2018), indicating that AD occurs more frequently in Sand and Loam.

Fig. 7
Fig. 7
Full size image

Average soil water deficit index (SWDI) timeseries during 2000–2018 for each type of soil texture in Ziya River Basin.

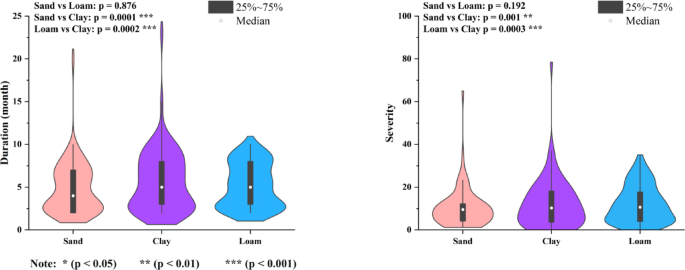

Figure 8 shows the violin graphs of D and S for different soil textures: Sand, Clay, and Loam, respectively, with quantiles ranging from 25% to 75%, and white circles indicating the mean values. Among the three soil textures, Loam has the largest D (5.09) and S (10.32) of AD over ZRB, followed by Sand (D, 4.56; S, 8.32), and the lowest is for Clay (D, 3.24; S, 5.13). In addition, the distribution of drought characteristics for Sand (D, 1–9; S, 2–20) and Loam (D, 1–11; S, 2–23) is relatively uniform, whereas Clay tends to concentrate on lower D of 2–4 months and S of 1–7, suggesting that Clay shows best performance with higher water holding capacity and drought resistance.

Fig. 8
Fig. 8
Full size image

Violin graphs of duration and severity of agricultural drought for different soil textures: Sand, Clay, Loam, respectively.

Discussion

Comparisons of impacts of land use types on AD

In this study, five different land use types are analyzed (Cropland, Forest, Grassland, Waters, and Urban Land) to evaluate the impacts of AD in semiarid areas. Our findings show that Forest and Grassland are more drought-resistant while Cropland, Waters, and Urban land are more susceptible to severe droughts (Figs. 5, and 6). Adaptation strategies to water deficits and the ability to absorb water can determine drought resistance and recovery capabilities among different vegetation types52. In a study published by Hanson and Weltzin et al. (2000), it was shown that vegetation with well-developed roots (e.g., Forest and Grassland) is more resistant to drought and water shortages than vegetation with less-developed roots (e.g., Cropland), which is in accordance with the findings of our study. In addition, Water areas are directly affected by drought resulting in reduced water storage, and Urban land may also be more prone to drought due to multiple factors such as high temperature, human activities, precipitation deficit, low humidity, and strong evapotranspiration53.

Comparisons of impacts of soil textures on AD

Our results indicated that Clay performs better than Loam and Sand (Figs. 7, and 8), the reason can be that Clay has good water retention due to smaller pores and low evapotranspiration rate. The finding of Yu et al. (2022) confirmed that Sand has a lower capacity to absorb and store rainfall than the other two soil textures, making it less able to recover from severe AD, while Clay and Loam can recover more quickly due to their better water-holding capacity when replenished by timely precipitation. A number of important implications can be drawn from these results for crop selection and the allocation of soil texture types in the semi-arid region. AD intensity and frequency are closely correlated with soil texture, demonstrating the importance of integrating local soil types, main planting structures, and topographic features into the design of soil moisture monitoring stations so that agricultural management may be improved.

The impact of other relative factors on AD

Vegetation structure, soil hydrological characteristics and human activities are also the key factors that interact and jointly drive the dynamics of AD. Vegetation regulates water consumption and microclimate through transpiration. The texture and structure of the soil determine the ability of water infiltration, storage and transmission. Human activities directly alter the natural water cycle by changing land use (such as deforestation and urbanization) and water resource management (such as excessive water extraction), often reducing the resilience of ecosystems. The coupling of the three, through positive and negative feedback mechanisms, amplifies or alleviates meteorological drought, jointly determining the occurrence, intensity and recovery process of AD. Therefore, sustainable land management and water resource utilization strategies, such as protecting forests, improving agricultural soil health, and adopting water-saving technologies, are crucial for enhancing the drought resistance of ecosystems.

Conclusions

In this study, we have analyzed the temporal variations of precipitation, soil moisture, and water shortage in the vadose zone in ZRB on an annual and monthly scale, evaluated the applicability of SWDI in ZRB, and quantitatively assessed the effects of land use type and soil texture on AD. In summary, the following conclusions can be drawn:

  1. (1)

    The annual variation trends of soil moisture and precipitation in the ZRB are broadly similar, while the trend for water shortage in the vadose zone is the opposite. Similarly, the interannual distribution of soil moisture and precipitation in the basin is well-consistent. Overall, winter is the most prominent season when soil moisture levels are low in ZRB.

  1. (2)

    SWDI is capable of characterizing the water balance of the ZRB soil layer to a certain extent and can be used for AD assessment, monitoring, early warning, and forecasting. To some extent, AD and MD are both beginning and ending at the same time in a specific drought event. However, AD tends to exhibit more severe S than MD.



  1. (3)

    Different types of land use in semi-arid areas demonstrate significant impacts of AD. There is a greater drought resistance among Forest and Grassland with lower D and S, while Cropland, Waters, and Urban land are more susceptible to severe droughts because of their poorer water holding capacity and human activities.

  1. (4)

    Soil texture also has a significant effect on AD. Generally, Sand and Loam are more prone to severe drought with higher D and S under the similar climate. On the other hand, Clay has better drought resistance toughness.
