Introduction

Gamma rays and X-rays are utilized in several applications such as scientific research, industrial applications, medicine, and nuclear power plants1,2,3,4. However, undesired exposure to ionizing radiation has harmful effects on humans and the environment. It may result in cell alterations, damage to organs, and other health issues5,6.

Reduction of absorbed dose can be achieved by control in duration of exposure and remoteness from the radiation source and presence of shields3,6. Reinforcement of polymers with high atomic number micro and nano metal oxides enhances its radiation attenuation properties and makes it suitable for use as shields2,5,7,8. In addition, polymer composites are flexible and have light weight and good mechanical strength compared to other materials used in shielding7,9,10.

One of the metal oxides that is used is bismuth oxide (Bi2O3) in nano size. Bismuth oxide has a high density and a large atomic number for bismuth (Z = 83). Also, it is non-toxic compared to lead11. Many researchers used bismuth oxide nanoparticles in the fabrication of polymer composites for shielding applications. El Sharkawy et al. studied the shielding properties of recycled PVC doped with different percentages of Bi2O3 NPs at different energies emitted from the Eu-152 source11. Also, Yassene et al. prepared HDPE composite reinforced with Bi2O3 NPs and studied its shielding properties12. Elsafi et al. used Bi2O3 NPs and waste marble with unsaturated polyester and studied the attenuation characteristics for these composites at various energies13. Also, Elsafi et al. prepared epoxy composites using Bi2O3 NPs for shielding applications14. Cao et al. improved the shielding properties of PMMA by adding bismuth oxide, and other studies used bismuth oxide with different polymers5,7,15.

Unsaturated polyester is a type of thermoset polymer that is used in many applications such as automotive, military products, aircraft, construction, and the marine industry. It is characterized by its low cost, ease of processing, and good mechanical properties16,17,18,19. Many researchers used unsaturated polyester as a matrix in the composites for radiation shielding applications. Ozdogan et al. added different ratios of PbO to unsaturated polyester and measured its shielding properties10. More et al. studied attenuation properties against gamma rays and neutrons for TiO2 NPs filled unsaturated polyester composite20. Hemily et al. prepared unsaturated polyester composites reinforced with waste marble and WO3 NPs for gamma shielding applications21. Also, more et al. added SnO2 NPs to unsaturated polyester and studied its shielding properties9. As well, different studies focused on unsaturated polyester composites for shielding applications1,22,23,24.

Bi2O3 NPs can be synthesized by various methods such as sol-gel method, co-precipitation, and hydrothermal method, but these methods use toxic chemicals, so it is hazardous to humans and environment. On the other hand, green synthesis is cost-effective, non-toxic, and eco-friendly, as it uses microorganisms and plant parts instead of toxic chemicals. The different plant parts contain a lot of phytochemicals such as flavonoids, phenolic compounds, alkaloids, proteins, and terpenoids which act as reducing agents and stabilizing agents in nanoparticles synthesis25,26,27. Many studies reported the preparation of Bi2O3 NPs using different plant parts such as leaves of (A) indica plant28, (B) multifida plant29, leaves of Datura inoxia plant30, roots of ginger plant31, leaves of Mexican mint plant32, S. persica plant33, and leaves of Ficus benghalensis plant26.

In the present work, Bi2O3 NPs were prepared by the green synthesis method using olive leaves extract. Then, it used in the fabrication of unsaturated polyester nanocomposites with different filler percentages. The attenuation properties of these composites were studied at different energies in addition to its thermal and mechanical properties.

Materials and methods

Materials

Olive leaves were purchased from local market. Bismuth nitrate pentahydrate Bi(NO3)3 .5H2O were obtained from universal fine chemicals Ltd. Glacial acetic acid CH3COOH was supplied from fisher scientific. Pre-accelerated unsaturated polyester resin was supplied from SUPIC Co. Methyl ethyl ketone peroxide (MEKP) was supplied from AKPA chemicals.

Preparation of Olive leaves extract

First, olive leaves were cut into small pieces. Then, 40 gm of chopped leaves were boiled in 500 ml of distilled water at 95 °C for 60 min. After that, the extract was cooled in air, filtered and stored in the refrigerator for further utilization.

Green synthesis of Bi2O3 NPs

Initially, 50 ml of 0.1 M Bi(NO3)3 solution was prepared by dissolution of 2.425 gm Bi(NO3)3.5H2O in 5 ml of acetic acid at 60 °C. Then, it was completed to 50 ml with distilled water. This solution was added dropwise to 400 ml of olive leaves extract at 60 °C under vigorous stirring. The mixture was stirred for 3 h under the same conditions. After this period, the resultant precipitate was filtered, washed several times with distilled water, then dried in an oven at 70 °C for 4 h and subsequently calcinated in a muffle furnace at 600 °C for 2 h in ambient air.

Preparation of unsaturated polyester nanocomposites

The Bi2O3 NPs with different wt % (0, 1, 5, 10, and 20) were mixed with unsaturated polyester resin followed by sonication for 30 min. Thereafter, the mixture was stirred for 30 min. Then, 1% of MEKP was added to the mixture to initiate curing reaction. Finally, the mixture was poured into cylindrical molds and allowed to solidify. Table 1; Fig. 1 show the composite samples and its composition and density. The mass per volume law was used to practically estimate the samples’ density. A digital balance with a ± 1 mg precision was used to measure the mass, and the (x πr2) formula was used to calculate the volume, where x and r stand for the sample’s thickness and radius, respectively.

Table 1 Composition and density of composite samples.
Full size table
Fig. 1
figure 1

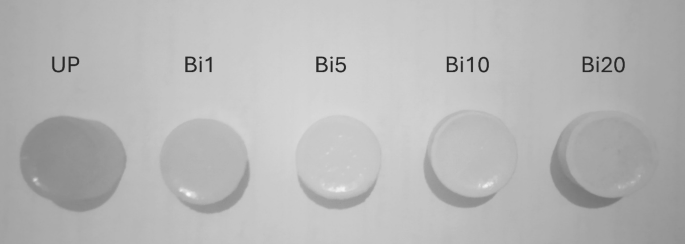

Image of UP and different composites samples.

Full size image

Characterization

The size and shape of the Bi2O3 NPs was measured by transmission electron microscope (JEOL JEM-1400 plus). IR spectra of the nanoparticles and nanocomposites were measured by a PerkinElmer spectrum two FT-IR spectrometer in the wave number range of 4000–450 cm− 1. XRD patterns were measured by a Bruker XRD D2 phaser diffractometer using Cu Kα radiation (λ = 1.54 Å). Thermal stability of nanocomposites was evaluated with heating rate 10 C°/min using Q600 thermogravimetric analyzer, TA instruments. Scanning electron microscope (JEOL JSM IT200) was utilized to study fracture surface of nanocomposites and to make EDX analysis for Bi2O3 NPs. In addition to, compression test was conducted for nanocomposite samples using universal testing machine (5ST, Tinius Olsen).

Measurement of attenuation properties

The attenuation characteristics of the composites were examined using a high purity germanium (HPGe) detector with a relative efficiency of 24% and an energy resolution of 1.96 keV at 1333 keV and several radioactive point sources emit gamma rays with different energies (Am-241 emits at 59 keV, Cs-137 emits at 661 keV, and Co-60 emits at 1173 and 1333 keV) with an initial activity of 40.3 kBq in 1998. The composites samples were placed between the detector and the radioactive source as shown in Fig. 2. The peak intensity was measured in absence and presence of the samples and the linear attenuation coefficient (LAC) was determined at each energy according to Eq. (1)

$${\text{LAC}}={\text{ln}}\left( {{{\text{I}}_{\text{o}}}/{\text{I}}} \right)/{\text{x}}$$
(1)

Where, I0, I, and x represent peak intensity in absence of sample, peak intensity in presence of sample, and thickness of sample, respectively. From LAC values, other parameters of shielding such as half value layer (HVL), tenth value layer (TVL), and radiation shielding efficiency (RSE%) were be measured using Eqs. (2), (3), and (4)6,34.

$${\text{HVL}}={\text{ln(2)}}/{\text{LAC}}$$
(2)
$${\text{TVL}}={\text{ln(1}}0{\text{)}}/{\text{LAC}}$$
(3)
$${\text{RSE}}\% =\left( {{\text{1}}-{\text{I}}/{{\text{I}}_{\text{o}}}} \right)*{\text{1}}00$$
(4)
Fig. 2
figure 2

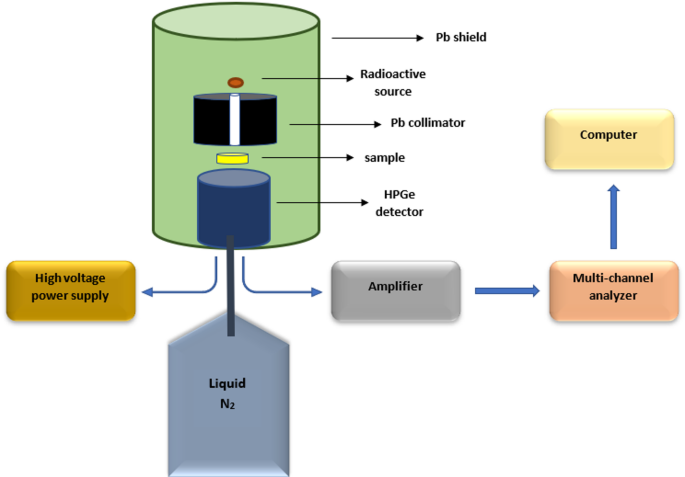

The experimental setup for measurement of attenuation coefficient.

Full size image

Results and discussion

TEM and EDX analysis of Bi2O3 NPs

According to illustrated TEM image of Bi2O3 NPs (Fig. 3), it can be seen that Bi2O3 NPs have spherical shape with an average particle size of 15 nm. On other hand, EDX analysis (Fig. 4) shows presence of bismuth and oxygen as major elements which confirms the formation of Bi2O3 with other characterization results in addition to presence of minor amounts of carbon and phosphor which may be residue from calcination step and impurities in starting precursor, respectively.

Fig. 3
figure 3

TEM image of pure Bi2O3 NPs synthesized using olive leaves extract.

Full size image
Fig. 4
figure 4

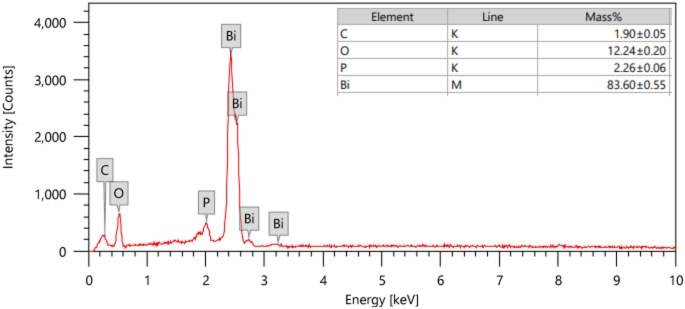

EDX spectrum of Bi2O3 NPs.

Full size image

FT-IR spectroscopy

Figure 5 shows FT-IR spectra of Bi2O3 NPs, pure UP, and 20 wt% Bi2O3 nanocomposite. As seen in Fig. 5a, the peak at 546 cm− 1 is assigned to metal-oxygen bond (Bi-O-Bi) vibration in Bi2O325,27. The peaks 937 and 963 cm− 1 may be related to Bi-O bond stretching vibrations25,27,35. Also, the peak at 1074 cm− 1 may be assigned to vibration of Bi-O bond28,35. Figure 5b represents the spectrum of pure UP. In which the peak at 3463 cm− 1 corresponding to O-H stretching vibration, the peak at 3028 cm− 1 is attributed to aromatic C-H bond vibration, and the peak at 2954 cm− 1 is related to aliphatic C-H bond stretching. While, the peaks at 1728 and 1453 cm− 1 are related to C = O bond stretching vibration and C-H bond bending vibration, respectively. The peaks at 1283, 1130, and 1072 cm− 1 are related to C-O bond vibrations and the observed peaks at 745 and 702 cm− 1 are related to aromatic C-H bending vibrations36,37. In comparing to the spectrum of pure UP (Fig. 5b), it is noticed the presence of new peaks in the spectrum of Bi2O3/UP composite (Fig. 5c) at 545 and 937 cm− 1 related to Bi-O bond which indicates successful addition of Bi2O3 NPs to unsaturated polyester. Also, it is obvious that there is no shift on the peaks of unsaturated polyester in the composite spectrum which indicates that there is no chemical interaction between the nanoparticles and the matrix37,38,39.

Fig. 5
figure 5

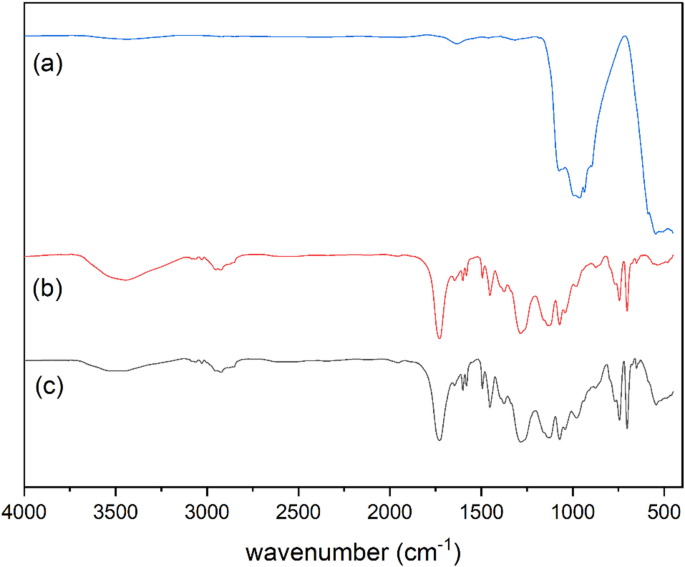

FT-IR spectra of (a) Bi2O3 NPs, (b) pure UP, and (c) Bi20 nanocomposite.

Full size image

X-ray diffraction (XRD)

Figure 6 Show the XRD patterns of Bi2O3 NPs, pure UP, and 20% wt Bi2O3 nanocomposite. As seen in Fig. 6a, there are several peaks in the XRD pattern of Bi2O3 NPs. The peaks at 2θ values of 24.99°, 26.89°, 27.76°, 33.64°, 41.40°, 42.04°, 44.16°, 46.83°, 55.42°, and 58.91° which corresponding to (102), (111), (120), (200), (131), (122), (040), (041), (241), and (024) diffraction planes which can be attributed to monoclinic Bi2O3 (JCPDS card 41-1449) with the following lattice parameters: a = 5.849 Å, b = 8.169 Å, c = 7.512 Å, α = γ = 90°, and β = 112.96°25,30,31,33,35,40,41. While the peaks at 2θ values of 28.28°, 30.53°, 31.84°, 32.30°, 45.75°, 47.54°, 54.13°, 55.96°, and 57.46° corresponding to (201), (211), (002), (220), (222), (400), (203), (421), and (402) diffraction planes of tetragonal Bi2O3 (JCPDS cards 27–0050) with the following lattice parameters: a = b = 7.73 Å, c = 5.64 Å, and α = β = γ = 90°25,35,42,43. On other hand, the peak at 2θ value of 29.16° may be attributed to non-stoichiometric phase of Bi2O344. Also, the peak at 2θ value of 51.01° can be assigned to (023) diffraction plane in BiPO4 which confirm with presence of phosphor element in EDX analysis45. The average crystallite size of Bi2O3 NPs is calculated and it is found to be 12.98 nm using Scherrer’s Eqs.25,29 :

$$\:D=\:\frac{K\lambda\:}{\beta\:cos\theta\:}$$

Where D is the crystallite size, K is the shape factor (taken as 0.9), λ is the X-ray wavelength (1.54 Å for Cu Kα radiation), β is the full width at half maximum (FWHM) of the diffraction peak, and θ is the Bragg’s diffraction angle. Table 2 shows FWHM values and other XRD parameters for each peak.

Table 2 XRD parameters of synthesized Bi2O3 nanoparticles.
Full size table

It is noticed in Fig. 6b. that there are broad peaks at 2θ values of 19.33°, 28.74°, and 40.64° which indicates the amorphous nature of unsaturated polyester. On other hand, XRD pattern of the nanocomposite (Fig. 6c.) show the decrease in intensity of broad peaks and appearance of sharp peaks at 2θ values of 26.73°, 28.14°, 31.49°, 47.22°, and 55.30° related to Bi2O3 NPs which reflects the slight increase in crystallinity with addition of Bi2O3 NPs20,46,47,48.

Fig. 6
figure 6

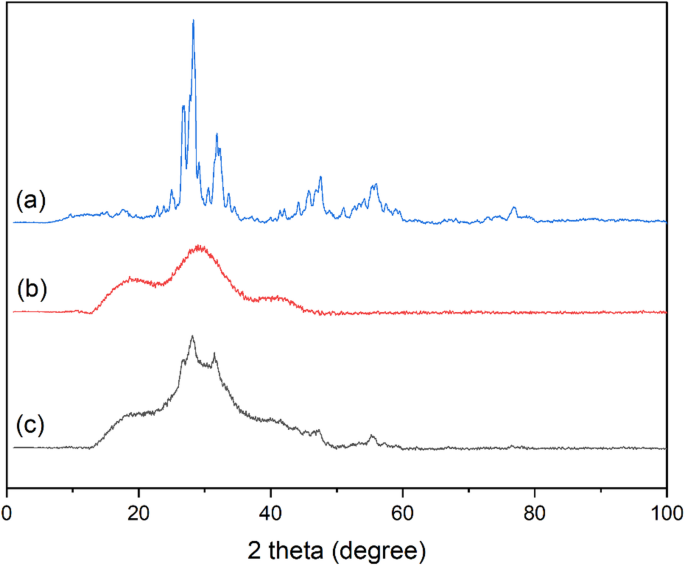

XRD patterns of (a) Bi2O3 NPs, (b) pure UP, and (c) Bi20 nanocomposite.

Full size image

Thermal gravimetric analysis (TGA)

Figure 7 Shows the TGA curve of Bi2O3 NPs, pure UP, and 20% wt Bi2O3 nanocomposite. It is noticed that Bi2O3 NPs have high thermal stability up to 800 °C where it lost about 1.33% from its weight only. This very small weight loss may be because of the evaporation of adsorbed water on the surface of Bi2O3 NPs11. Also, it is seen that pure UP lost 10% of its weight at 247 °C and lost 50% of its weight at 357 °C. On other hand, the 20% wt nanocomposite degraded at higher temperatures where it lost 10% of its weight at 326 °C and lost 50% of its weight at 395 °C which indicates that the addition of Bi2O3 NPs retards the thermal decomposition of unsaturated polyester and improves its thermal stability49.

Fig. 7
figure 7

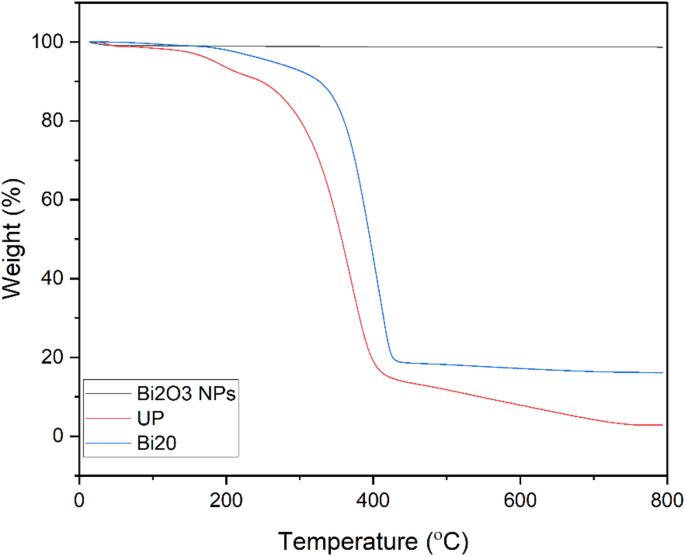

TGA curve of Bi2O3 NPs, pure UP, and Bi20 nanocomposite.

Full size image

Scanning electron microscope (SEM)

Figure 8 Shows SEM images of fracture surfaces of pure UP, 5% wt nanocomposite, and 20% wt nanocomposite. Figure 8a. shows a smooth fracture surface for pure UP which indicates the brittle fracture of unsaturated polyester. While, Fig. 8b and c show rough fracture surfaces for Bi5 and Bi20 nanocomposites which indicate that the nanocomposites have some toughness. Also, at higher loading, it is clear there is good dispersion of Bi2O3 nanoparticles in polymer matrix. However, it is noticed the presence of some agglomerations of nanoparticles in both samples and it increases with the increase of Bi2O3 NPs ratio36,49. Despite the good dispersion of nanoparticles, these agglomerations reduce distribution homogeneity of Bi2O3 NPs in UP matrix which may affect mechanical properties of the composites as discussed below.

Fig. 8
figure 8

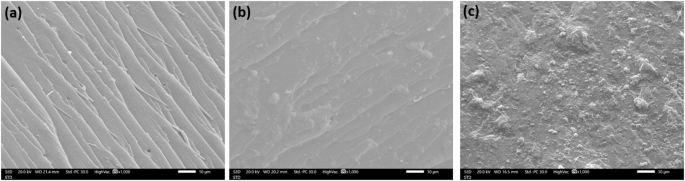

SEM images of (a) pure UP, (b) Bi5 nanocomposite, and (c) Bi20 nanocomposite.

Full size image

Compressive strength test

The mechanical properties of nanocomposites were evaluated through compressive strength test. Figure 9 Shows values of compressive strength for UP and nanocomposites with different percentages of Bi2O3 NPs. It is noticed the slight increase in compressive strength value for 1% wt nanocomposite which may be due to good dispersion of nanoparticles in composite. Then, the compressive strength decreases with increasing of Bi2O3 NPs ratio which may be related to agglomeration of nanoparticles and negative effect of nanoparticles on crosslinking reaction during curing process of composite49,50.

Fig. 9
figure 9

Compressive strength for UP and different nanocomposites.

Full size image

Radiation attenuation properties

Io / I ratio was plotted against the thickness (x) for each sample as shown in Fig. 10 and the slope of the curve represents the value of LAC. Table 3 shows the relative deviation between experimental and theoretical values of LAC where the relative deviation was calculated according to the following equation:

$$\:RD\%=\frac{LAC\left(XCOM\right)-LAC(exp.)}{LAC(exp.)}*100$$

It is noticed that relative deviation for all samples doesn’t exceed 6% which indicates compatibility between experimental and theoretical results51. The theoretical results were calculated using XCOM software where it is an online software and is used in calculation of attenuation coefficient by entering chemical composition of samples.

Fig. 10
figure 10

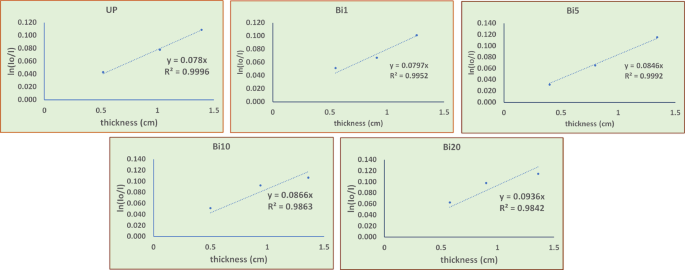

Curve of Io / I against thickness for UP and different composites at 1173 keV.

Full size image
Table 3 Values of experimental, theoretical LAC and RD% between them.
Full size table

Figure 11 shows values of LAC for unsaturated polyester the different composites at different energies. It is observed that LAC has higher values at lower energy (59 keV) and decreases with increase of energy where photoelectric effect is more prevalent at lower energy while Compton scattering and pair production are prevalent at higher energies7,51,52. Also, it is noticed the increase of LAC with increase of Bi2O3 NPs ratio which largely increases from 0.250 cm− 1 for pure unsaturated polyester to 1.668 cm− 1 for 20 wt% nanocomposite at 59 keV and slightly increases at higher energies due to dominance of photoelectric effect at lower energy.

Fig. 11
figure 11

Experimental LAC for UP and different composites at different energies.

Full size image

As it is expected, Fig. 12 shows increase of HVL values with increase of energy where HVL is inversely proportional to LAC and the more thickness is required to prevent higher energy photons from penetrating. It also shows the improvement of HVL values with addition of Bi2O3 NPs where HVL value of unsaturated polyester improves from 2.77 cm to 0.41 cm at 59 keV with addition of 20% Bi2O3 NPs. Therefore, a thin layer is enough to absorb half of photons since the photoelectric effect is the dominant at low energy. On other hand, the same addition slightly decreases the HVL value from 9.25 cm to 7.88 cm at 1333 keV where the photoelectric effect becomes less dominant and Compton scattering and pairs production are more dominant at higher energies. As shown in Fig. 13, TVL values have the same trends as HVL values. Also, it is observed that TVL values are greater than HVL values since the more thickness is needed to reduce radiation intensity to tenth of its value. The addition of 20 wt% of Bi2O3 NPs to unsaturated polyester enhances its TVL value from 9.22 cm to 1.38 cm at 59 keV while it is improved from 30.74 cm to 26.21 cm at 1333 keV which indicates that low thickness of 20 wt% nanocomposites is useful in attenuation of low energy photons. This kind of performance implies that these nanocomposites could be especially helpful for real-world shielding applications. These include lightweight protection panels used in mammography centers, dental radiography offices, and diagnostic X-ray rooms. These composites can also be used in laboratory-scale shielding, where low-energy isotopes are commonly used, and in the creation of building materials for radiation-safe walls and partitions. Their suitability for architectural and biomedical applications is strengthened by the fact that they are lead-free. Additionally, using a green synthesis method lowers its manufacturing cost. Another parameter was be measured is radiation shielding efficiency. Figure 14 shows shielding efficiency at different energies for different thickness. It shows decrease of shielding efficiency with increase of photon energy which is attributed to dominance of photoelectric effect at lower energies as explained in previously discussed parameters. Also, it is observed that 20 wt% nanocomposite has the highest shielding efficiency at 59 keV (81.14% and 91.81% at 1 and 1.5 cm thickness respectively) which reveal its good ability in attenuation of low energy photons.

Fig. 12
figure 12

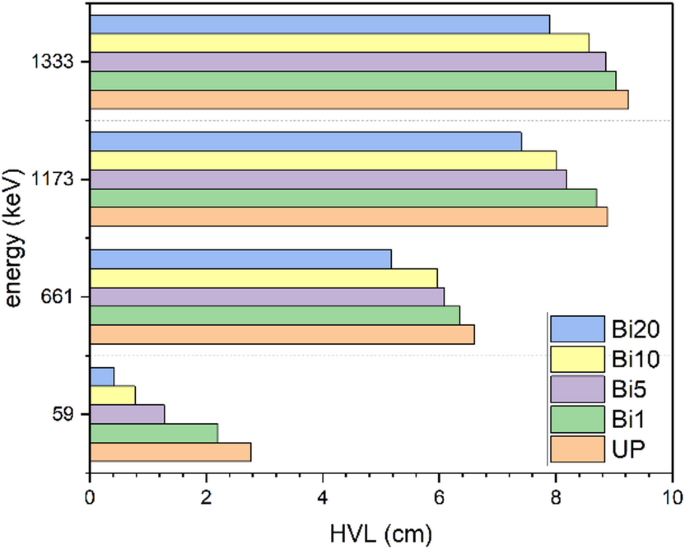

HVL values of UP and different composites at different energies.

Full size image
Fig. 13
figure 13

TVL values of UP and different composites at different energies.

Full size image
Fig. 14
figure 14

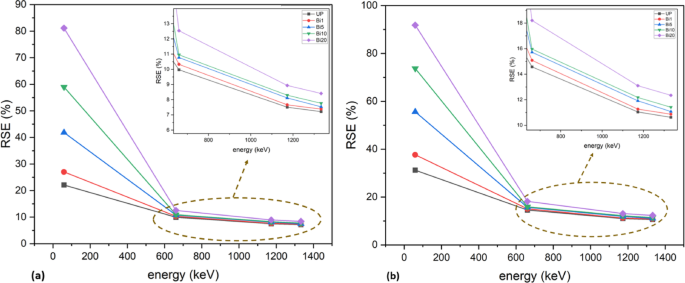

RSE% of UP and different composites at (a) 1 cm and (b) 1.5 cm thickness.

Full size image

Finally, our results were compared with different previously reported unsaturated polyester composites. Figure 15 Shows LAC values of different unsaturated polyester composites containing Bi2(WO4)31, BiClO53, CdTe2, SnO54, and PbO49 and our composites. It shows the agreement of our results with other published results. In addition, it is observed that LAC value of 20 wt% Bi2O3 nanocomposite is greater than LAC value of the composites containing other bismuth compounds. Also, when 20 wt% Bi2O3 nanocomposite is compared with PbO composites, it shows greater LAC value which indicates importance of Bi2O3 as the safe relative for lead compounds in shielding composites.

Fig. 15
figure 15

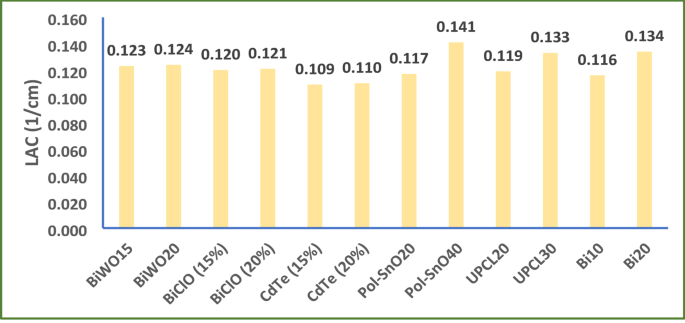

LAC values of different unsaturated polyester composites.

Full size image

Conclusion

In this study, shielding characteristics of unsaturated polyester nanocomposites filled with different ratios of Bi2O3 NPs were studied. Bi2O3 NPs were synthesized using olive leaves extract with average particle size of 15 nm as confirmed by TEM image. Also, the results of IR and XRD revealed the good preparation of Bi2O3 NPs. The LAC, HVL, TVL, and RSE% of the nanocomposites were measured at different energies (59, 661, 1173, and 1333 keV). In general, attenuation properties decreased with increase of energy for all samples. For example, RSE% of unsaturated polyester decreased from 22.09% to 7.22% with increasing of energy from 59 to 1333 keV at 1 cm thickness. On other hand, attenuation properties were improved with increase of Bi2O3 NPs ratio. The 20 wt% nanocomposite had the best results especially at 59 keV where it has highest LAC value of 1.668 cm− 1 and lowest HVL value of 0.415 cm which revealed that it is appropriate choice for shielding applications at lower energies. In summary, the prepared nanocomposites are more suitable for practical low-energy shielding applications rather than high-energy radiation. Also, the addition of Bi2O3 NPs improves resistance of unsaturated polyester for thermal degradation but, it decreases compressive strength of the composites.
