Fig. 3

From: MiRNome alterations drive the malignant transformation of endometriosis into endometriosis-correlated ovarian cancer

Fig. 3

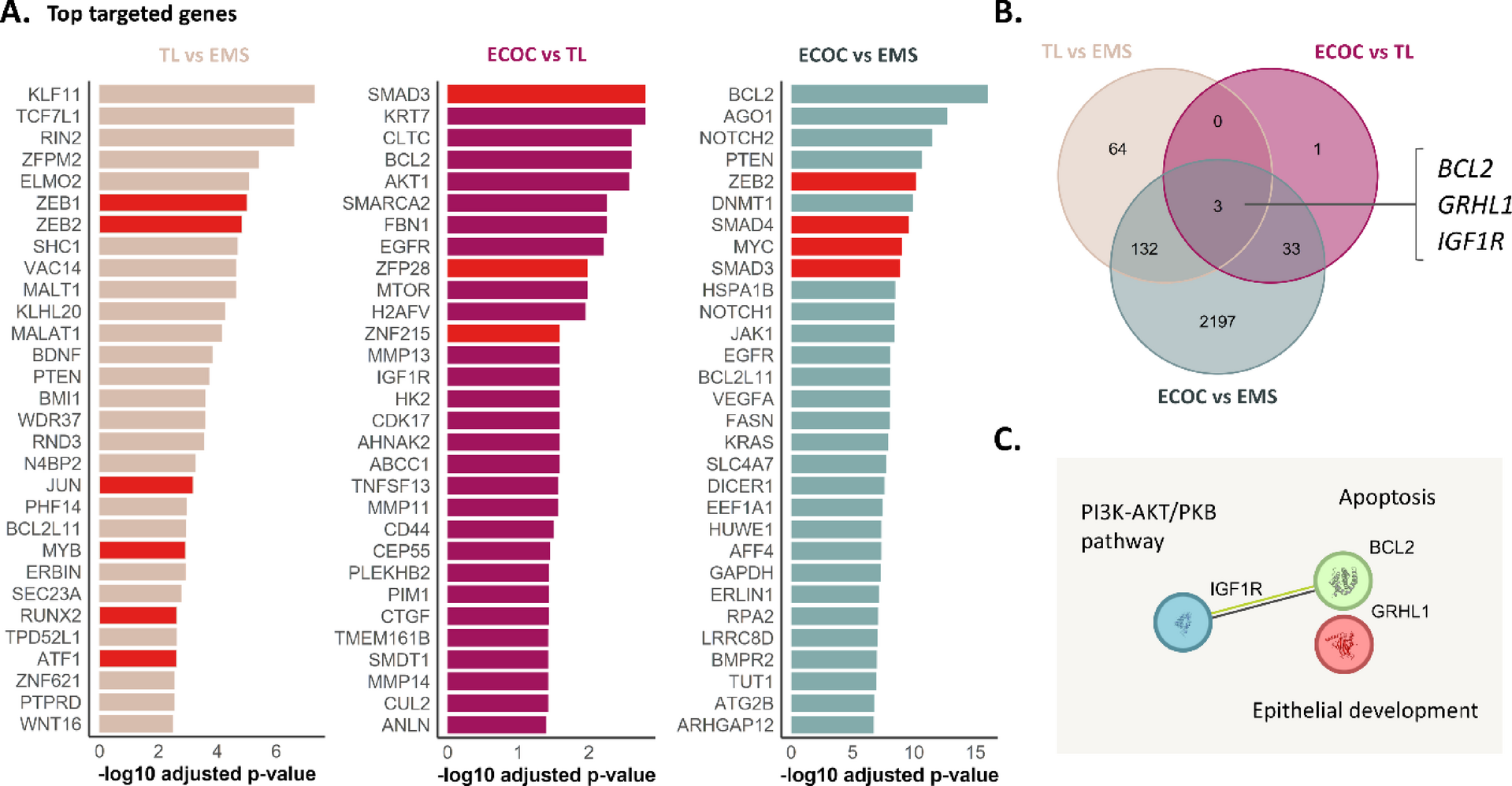

A) Top targeted genes by the significantly deregulated miRNAs. Transcription factors are marked with red bars. B) Venn diagrams showing the commonly targeted genes by significantly upregulated and downregulated miRNAs. Transcription factors are marked in red. C) String analysis of the commonly targeted genes. EMS: ovarian endometriosis; ECOC: endometriosis-correlated ovarian cancer.
