Fig. 5

From: Wound healing improvement by a multicomponent wound dressing of keratinocyte-imprinted polydimethylsiloxane substrate in a rabbit model

Fig. 5

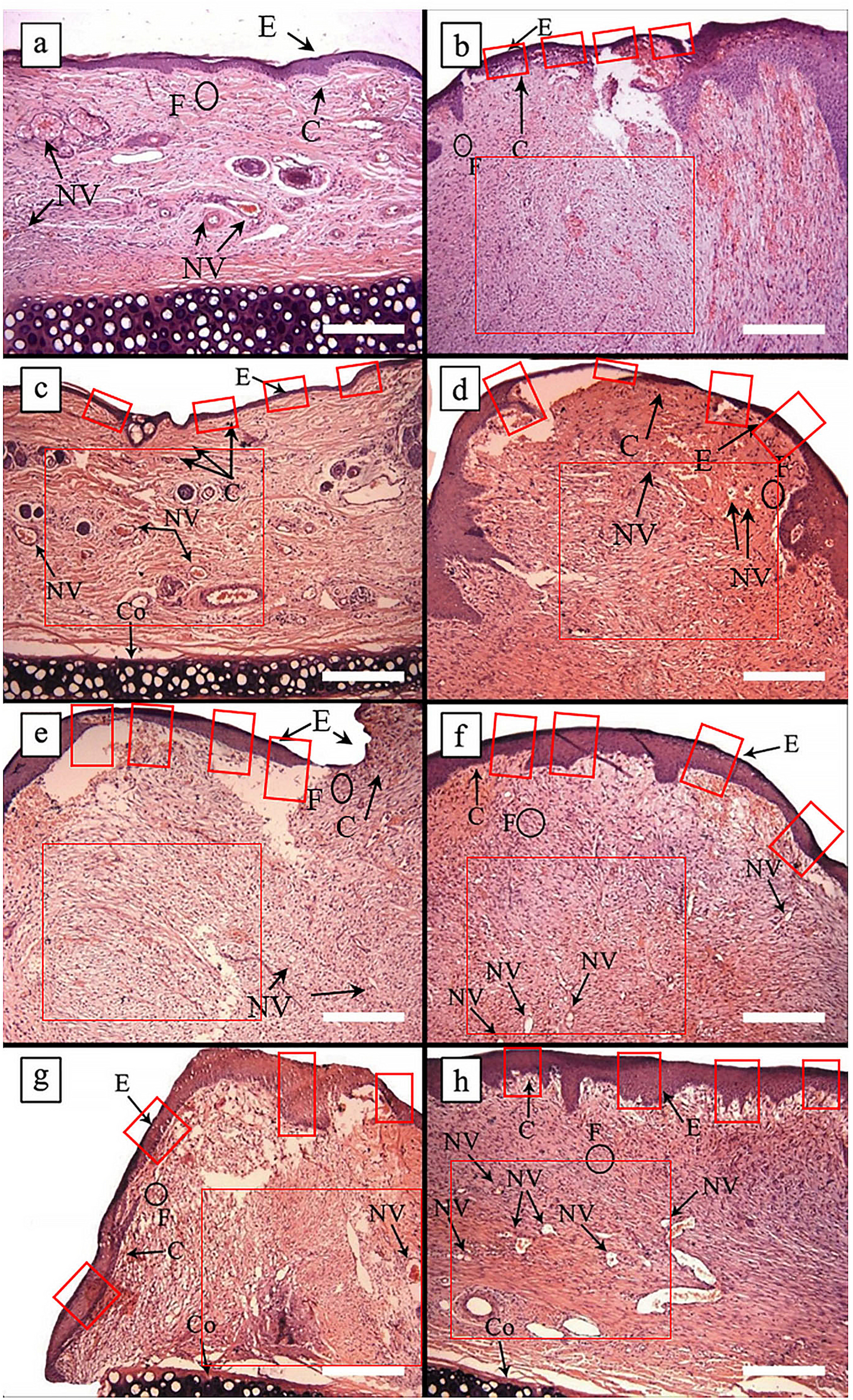

Hematoxylin and eosin (H&E) staining showed histopathological studies on wound healing on the 14th day post-implantation (a) Normal, (b) Control, (c) Col, (d) ColA, (e) ColP, (f) ColAP, (g) ColPdK, (h) ColAPdK. (E: epidermis – F: fibroblast – C: collagen – Co: chondrocyte – NV: new vessel) (Scale bar = 100 μm). The red outlined regions in each panel indicate the specific areas selected for histological quantification, including epidermal thickness and vessel density measurements.
